Emerson Rosemount 3100 Series Reference Manual

133
Reference Manual
00809-0100-4840, Rev CB
Appendix F: Programming the 3102 and 3105 using HART
February 2015
Programming the 3102 and 3105 using HART
F.3.3 Descriptor (P002)
This is for editing up to 16 characters, and can be used for any purpose e.g. to expand on
Tag (page 132) if needed.
Field Communicator or AMS Device Manager
To view or change the descriptor
1. From the Home screen, select 2: Configure.
2. Select 2: Manual Setup.
3. Select 4: HART / Identity (3105) or
5: HART / Identity (3102).
4. Select 1: Identity.
5. Select 2: Descriptor P002.
6. If required:
(a) Input the descriptor, and then select “ENTER” to save it.
(b) Select “Send” or “Apply” to update the transmitter.
Rosemount 3490 Series Control Unit
To view or change the descriptor
1. From the Main Menu screen, select SETUP.
2. Select the transmitter (e.g. “Tx1: 3102”).
3. Select DUTY.
4. Select IDENTITY.
5. Select Descriptor.
6. Follow on-screen instructions to input and save the descriptor.
7. Select “Quit” to exit to the previous menu.
Fast Keys
2, 2, 4 [or 5], 1, 2
Descriptor P002
3102 XMTR
3102 XMTR
ESC
DEL ENTER
HELP
w
s
q
a
z
Lock
Shift
@ &
á ü
x
e
d
c
r
f
v
t
g
b
y
h
n
u
j
m
*
-
+
/
.
0
7
4
1
8
5
2
9
6
3
i
k
o
l
FN

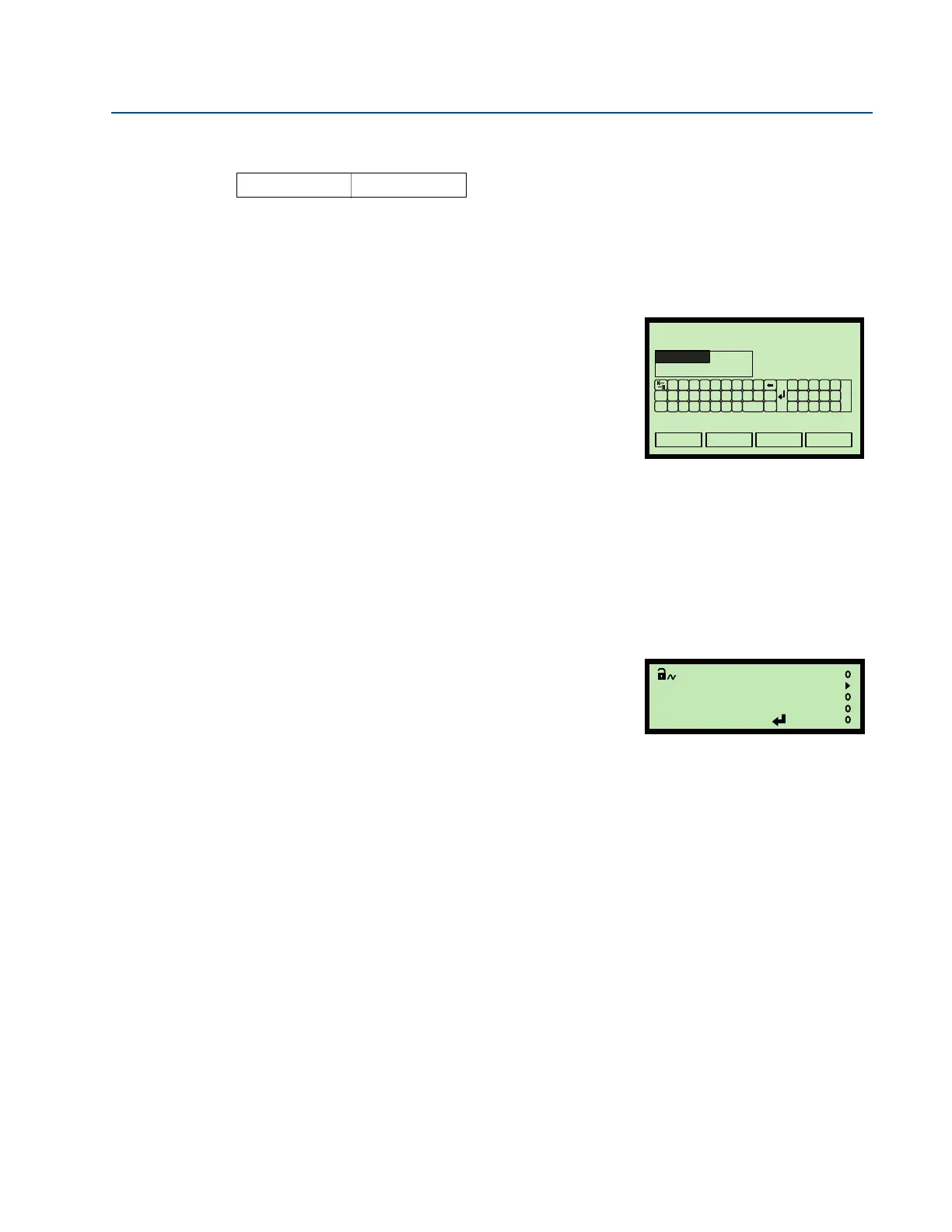

(Field Communicator Screen Shown)
Descriptor P002
3102 XMTR
Esc=Quit =Edit
(Rosemount 3491 Screen Shown)
