158
Reference Manual
00809-0100-4840, Rev CB
Appendix F: Programming the 3102 and 3105 using HART
February 2015
Programming the 3102 and 3105 using HART

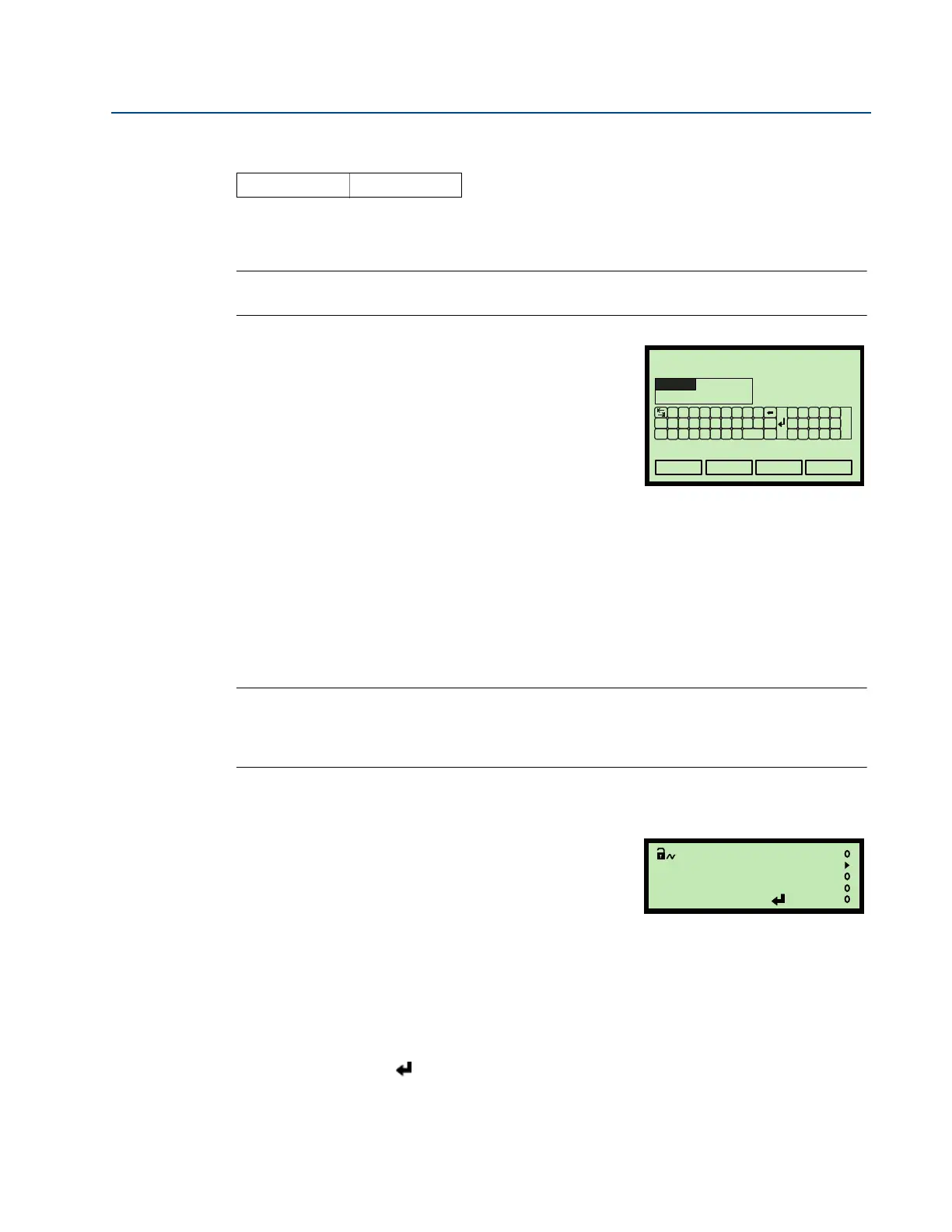

F.3.17 Profile points 1 to 10 (P030 to P039)
These parameters are used to define an irregular-shaped profile for calculating the process value
(PV) from a live level reading. They are only used if Tank Shape P011 is set to Special Plot.
Note
See page 145 for examples of how these parameters are used.
Field Communicator or AMS Device
Manager
To view or change the profile point
1. From the Home screen, select 2: Configure.
2. Select 2: Manual Setup.
3. Select 3: Profiling.
4. Select 6: Plot Non-Linear Profile Points.
5. Select a profile point e.g. 1: Profile Point1 P030.
6. If a change is required:
(a) Input a new value, and then select “ENTER” to save it.
(b) Select “Send” or “Apply” to update the transmitter.
Note
The profile point parameters are only accessible on a Field Communicator if they are required
for a selected Non-linear Profile (see page 138). The points can be changed only if the “Special
Plotted” profile has been selected (see page 143).
Rosemount 3490 Series Control Unit
To view or change the profile point
1. From the Main Menu screen, select SETUP.
2. Select the transmitter (e.g. “Tx1: 3102”).
3. Select DUTY.
4. Select NLP CURVE.
5. Select a profile point e.g. “Profile Pt. 1”.
6. Follow the on-screen instructions to edit and save the new setting.
(Use the Enter ( ) key if prompted to change mode to “off-line”).
7. Select “Quit” to exit to the previous menu.
Fast Keys
2, 2, 3, 6
Profile Point1 P030
10.000%
10.000%
ESC
DEL ENTER
HELP
w
s
q
a
z
Lock
Shift
@ &
á ü
x
e
d
c
r
f
v
t
g
b
y
h
n
u
j
m
*
-
+
/
.
0
7
4
1
8
5
2
9
6
3
i
k
o
l
FN
(Field Communicator Screen Shown)
Profile Pt. 1
10.000%
Esc=Quit =Edit
(Rosemount 3491 Screen Shown)
