Emerson Rosemount 3100 Series Reference Manual

86
Reference Manual
00809-0100-4840, Rev CB
Appendix A: Reference Data
February 2015
Reference Data

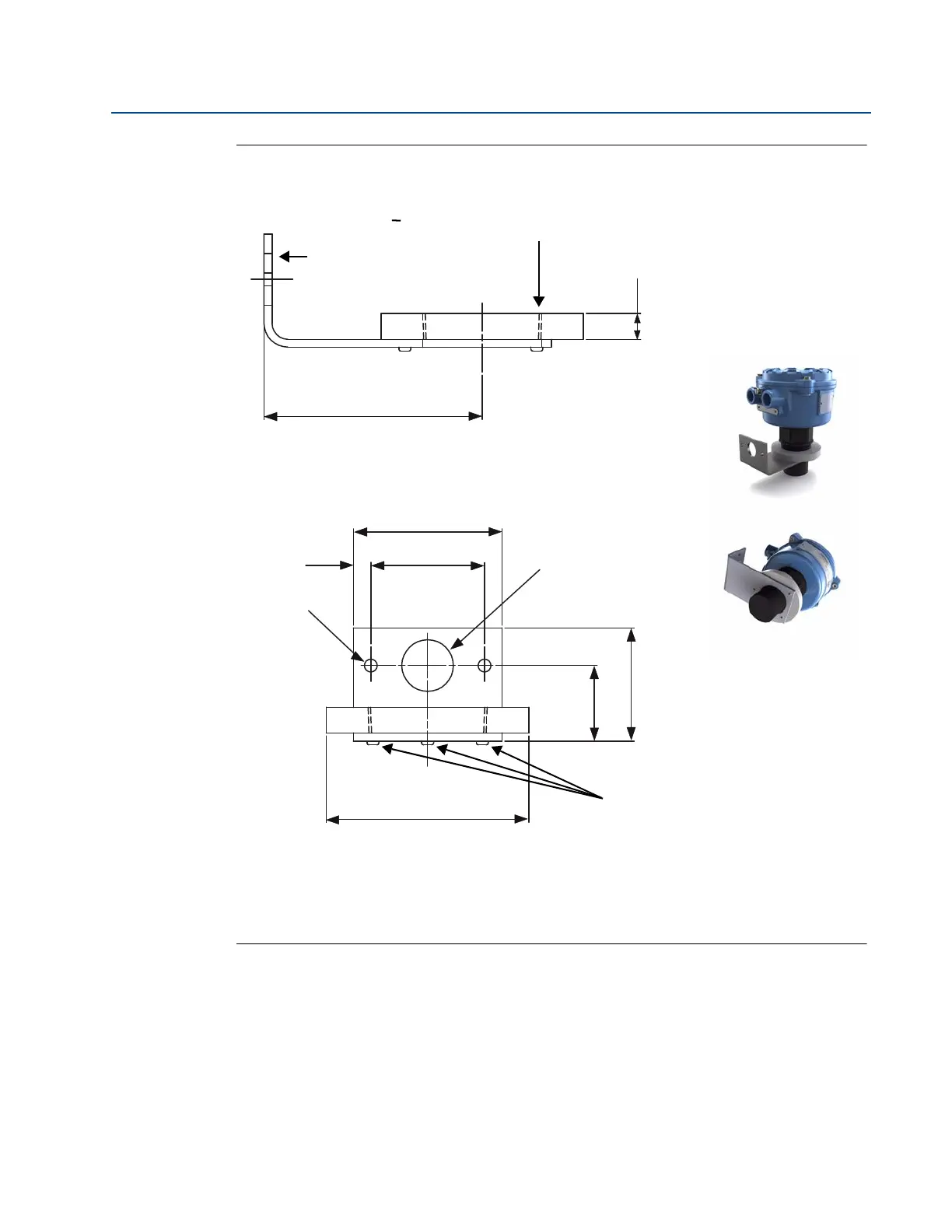

Figure A-5. The 2-in. NPT/BSPT Mounting Bracket
A. Stainless Steel Bracket
B. 2-in. NPT/BSPT Threaded PVC Disc
C. No. 4X 13 Long Self Tap Screw (3 Positions) Carbon Steel (Zinc Plated)
0.51
(13)
4.33
(110)
B
2.95
(75)
0.35
(9)
Ø1.02
(Ø2
6
)
0.2
6
(6,5)
TY
P
.
2.26
(57)
4.02
(102)
2.24
(57)
1.5
(38)
Side view
End view
Actual views with
transmitter mounted
C
A
