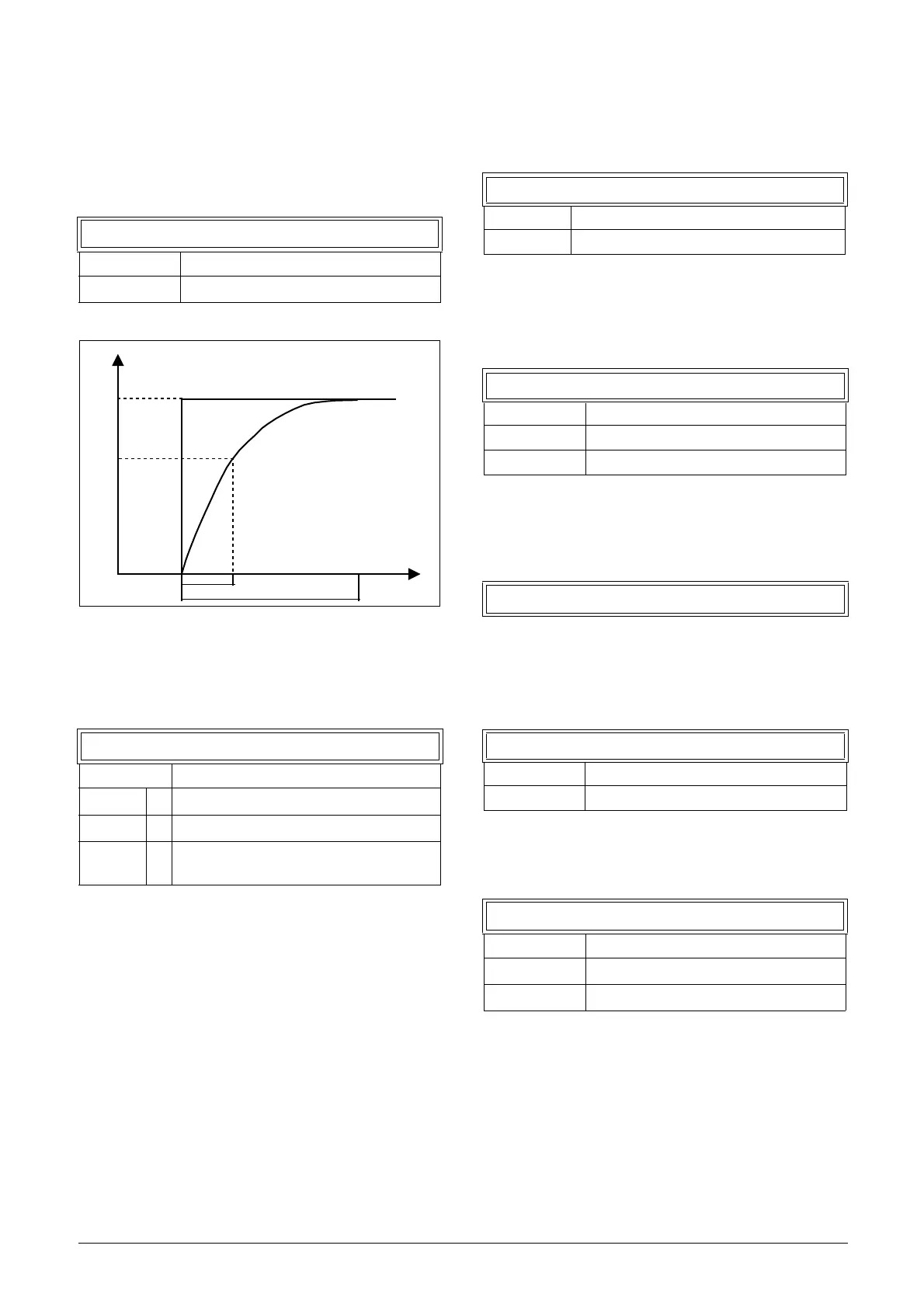

AnIn1 Filter [5139]
If the input signal is unstable (e.g. fluctuation reference
value), the filter can be used to stabilize the signal. A change
of the input signal will reach 63% on AnIn1 within the set
AnIn1 Filter time. After 5 times the set time, AnIn1 will
have reached 100% of the input change. See fig. 128.
Fig. 128
AnIn1 Enable [513A]
Parameter for enable/disable analogue input selection via
digital inputs (DigIn set to function AnIn Select).
AnIn2 Function [514]
Parameter for setting the function of Analogue Input 2.
Same function as “AnIn1 Fc [511]”.
AnIn2 Setup [515]
Parameter for setting the function of Analogue Input 2.
Same functions as “AnIn1 Setup [512]”.
AnIn2 Advanced [516]
Same functions and submenus as under “AnIn1 Advan
[513]”.
AnIn3 Function [517]
Parameter for setting the function of Analogue Input 3.
Same function as “AnIn1 Fc [511]”.
AnIn3 Setup [518]
Same functions as “AnIn1 Setup [512]”.
5139 AnIn1 Filt
Default: 0.1 s
Range: 0.001 – 10.0 s
513A AnIn1 Enabl
Default: On
On 0 AnIn1 is always active
!DigIn 1 AnIn1 is only active if the digital input is low.
DigIn 2
AnIn1 is only active if the digital input is
high.
AnIn change
100%
63%
Original input signal
Filtered AnIn signal
T
5 X T
514 AnIn2 Fc
Default: Off
Selection: Same as in menu [511]
515 AnIn2 Setup
Default: 4 – 20 mA
Dependent on Setting of switch S2
Selection: Same as in menu
[512].
516 AnIn2 Advan
517 AnIn3 Fc
Default: Off
Selection: Same as in menu
[511]
518 AnIn3 Setup
Default: 4–20 mA
Dependent on Setting of switch S3
Selection: Same as in menu [512].
