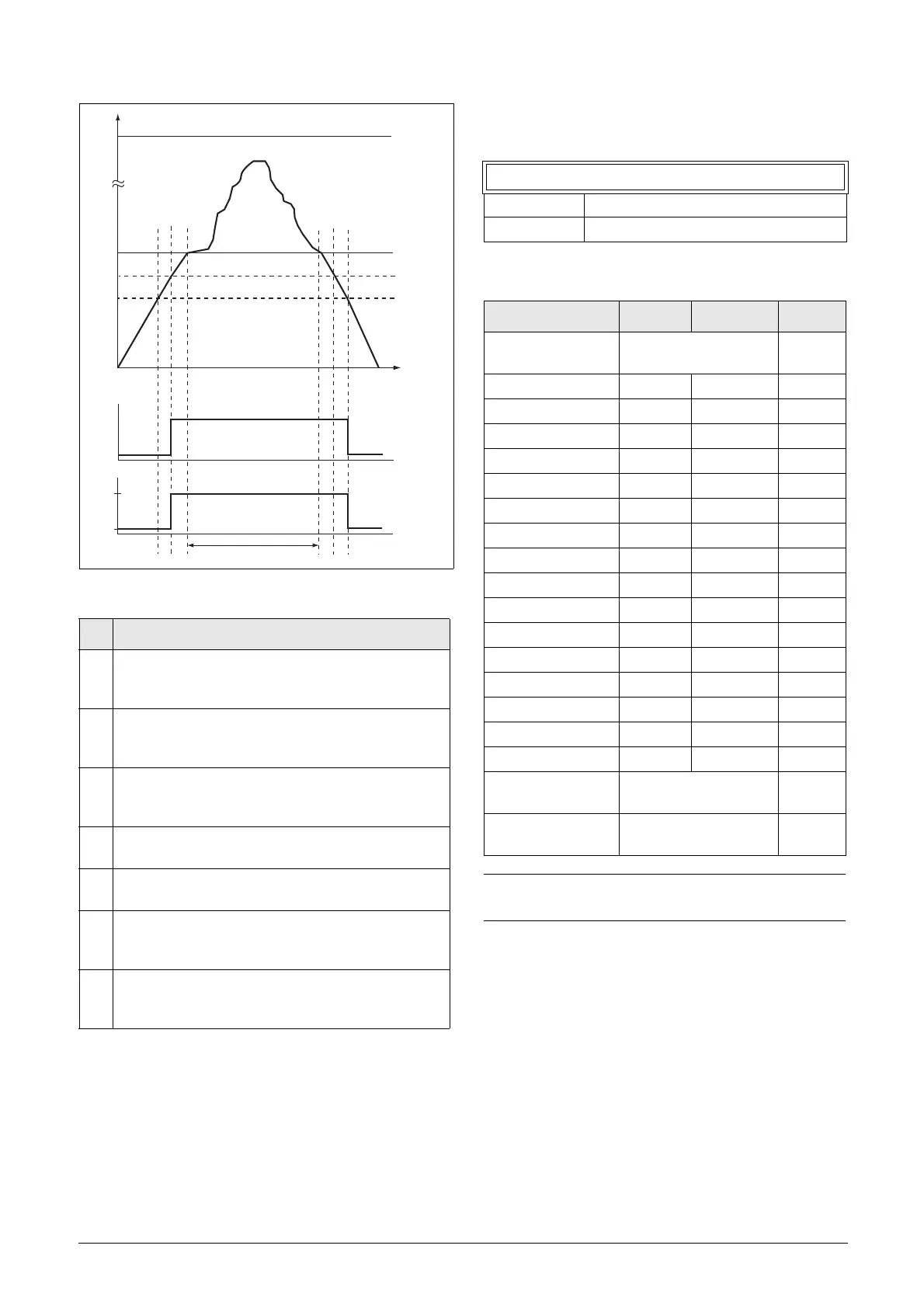

Fig. 132
Analogue Comparator 1, Level High [6112]
Sets the analogue comparator high level, with range
according to the selected value in menu [6111].
Min/Max setting range for menu [6112]
No. Description
1
The reference signal passes the Level LO value from
below (positive edge), the comparator CA1 output
stays low, mode=RUN.
2
The reference signal passes the Level HI value from
below (positive edge), the comparator CA1 output is
set high, mode=RUN.
3
The reference signal passes the threshold level of 4
mA, the motor speed will now follow the reference
signal.
T
During this period the motor speed will follow the
reference signal.
4
The reference signal reaches the threshold level, motor
speed is 0 rpm, mode = RUN.
5
The reference signal passes the Level HI value from
above (negative edge), the comparator CA1 output
stays high, mode =RUN.
6
The reference signal passes the Level LO value from
above (negative edge), the comparator CA1
output=STOP.
1
2
3
4
5
6
20 mA
4 mA
3.2 mA
2.4 mA
CA1 Level HI = 16%
CA1 Level LO = 12%
Max speed
Reference signal AnIn1
CA1
Mode
RUN
STOP
T
t
t
t
6112 CA1 LevelHI
Default: 300 rpm
Range: See min/max in table below.
Mode Min Max Decimals
Process Val
Set by Process settings
[321] and [322]
3
Speed, rpm 0 Max speed 0
Torque, % 0 Max torque 0
Shaft Power, kW 0 Motor P
n
x4 0
El Power, kW 0 Motor P
n
x4 0
Current, A 0 Motor I
n
x4 1
Output volt, V 0 1000 1
Frequency, Hz 0 400 1
DC voltage, V 0 1250 1
IGBT temp,
°C 0 100 1
PT 100_1_2_3, °C -100 300 1
PT 100_4_5_6, °C -100 300 1
Energy, kWh 0 1000000 0
Run time, h 0 65535 0
Mains time, h 0 65535 0
AnIn 1-4, % 0 100 0
AnMux 1-2, % 0 100 0
Process Ref
Set by Process settings
[321] and [322]
3
Process Err
Set by Process settings
[321] and [322]
3
NOTE: If Bipolar selected [6115] then Min value is
equal to -Max in the table.
