Emotron VFX48-365-54
To simplify the connection of thick motor and mains cables
to the AC drive, the cable interface plate can be removed.

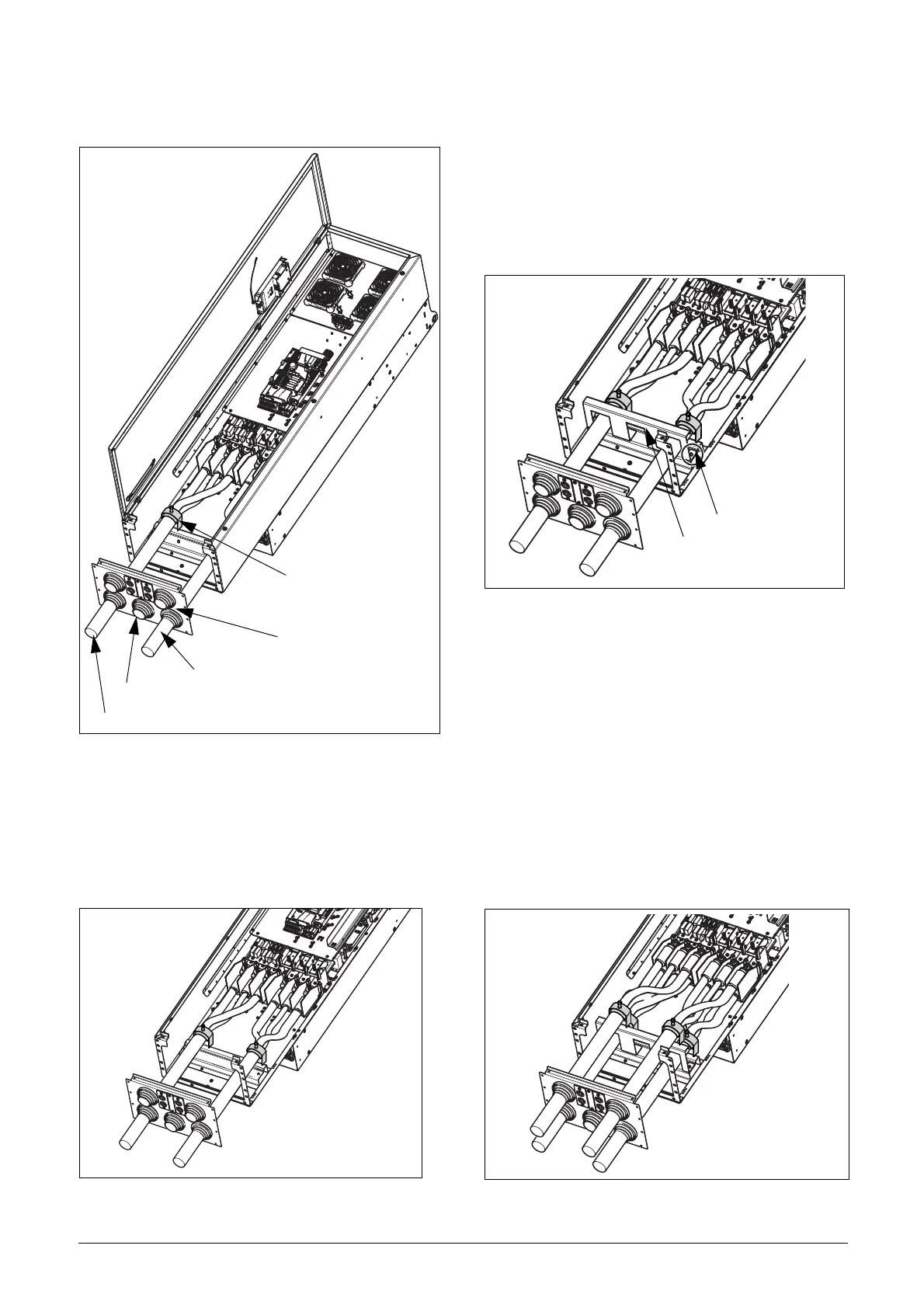

Fig. 51 Connection of lower mains and motor cables.
Start with the lower mains and motor cables (marked
Mains 1 and Motor 1 in fig. 52).
1. Remove the cable interface plate from the AC Drive
housing.
2. Remove the upper mounting rail by loosen the four
fastening screws.
Fig. 52 Removed upper mounting rail.
3. Put the two lower cables (Mains 1 and Motor 1
cables) through the lower glands in the cable
interface plate.
4. Strip the cables according to table 15 and fig. 61.
5. Connect the cable lugs to the stripped cable ends.
6. Connect the cable lugs to respective mains and
motor terminal bolts.
7. Fix the clamps on appropriate place and tighten the
cable in the clamp with good electrical contact to
the cable screen.
Fig. 53 Upper mounting rail mounted over the lower cables.
Continue with the upper mains and motor cables (marked
Mains 2 and Motor 2 in fig. 54).
1. Mount the upper mounting rail over the lower,
connected cables (Mains 1 and Motor 1 cables) at
same place as before, with the four screws.
2. Put the two upper cables (Mains 2 and Motor 2)
through the glands in the cable interface plate.
3. Strip the cables according to table 17 and fig. 61.
4. Connect the cable lugs to the stripped cable ends.
5. Connect the cable lugs to respective mains/motor
terminal bolts.
6. Fix the clamps on appropriate place and tighten the
cable in the clamp with good electrical contact to
the cable screen.
7. Put the cable interface plate in place and secure
with the fixing screws.
Fig. 54 All cables and cable clamps connected.
Mains 1
Motor 1
Cable interface
Clamp for screening
Mains cable
DC+, DC-, R (optional)
Motor cable
Mains 1
Motor 1
Mains 1
Motor 1
Motor 2
Mains 2
To Next Page
