6 Commissioning PROline Prosonic Flow 93 PROFIBUS-DP/-PA
100 Endress+Hauser
!
Note!
 Prosonic Flow 93 has eight Analog Input function blocks to which various process
variables can be assigned as required.
 Totalizers 1–3 can be configured in various combinations with the totalizer controls.
It is possible to configure totalizers 1–3 only, or additionally integrate one or two
output control bytes in order to reset totalizer 1 or stop totalizing, for example.
The configuration is explained in detail on Page 103.
The block model illustrated (Fig. 68) shows which input and output data Prosonic
Flow 93 provides for cyclic data exchange.

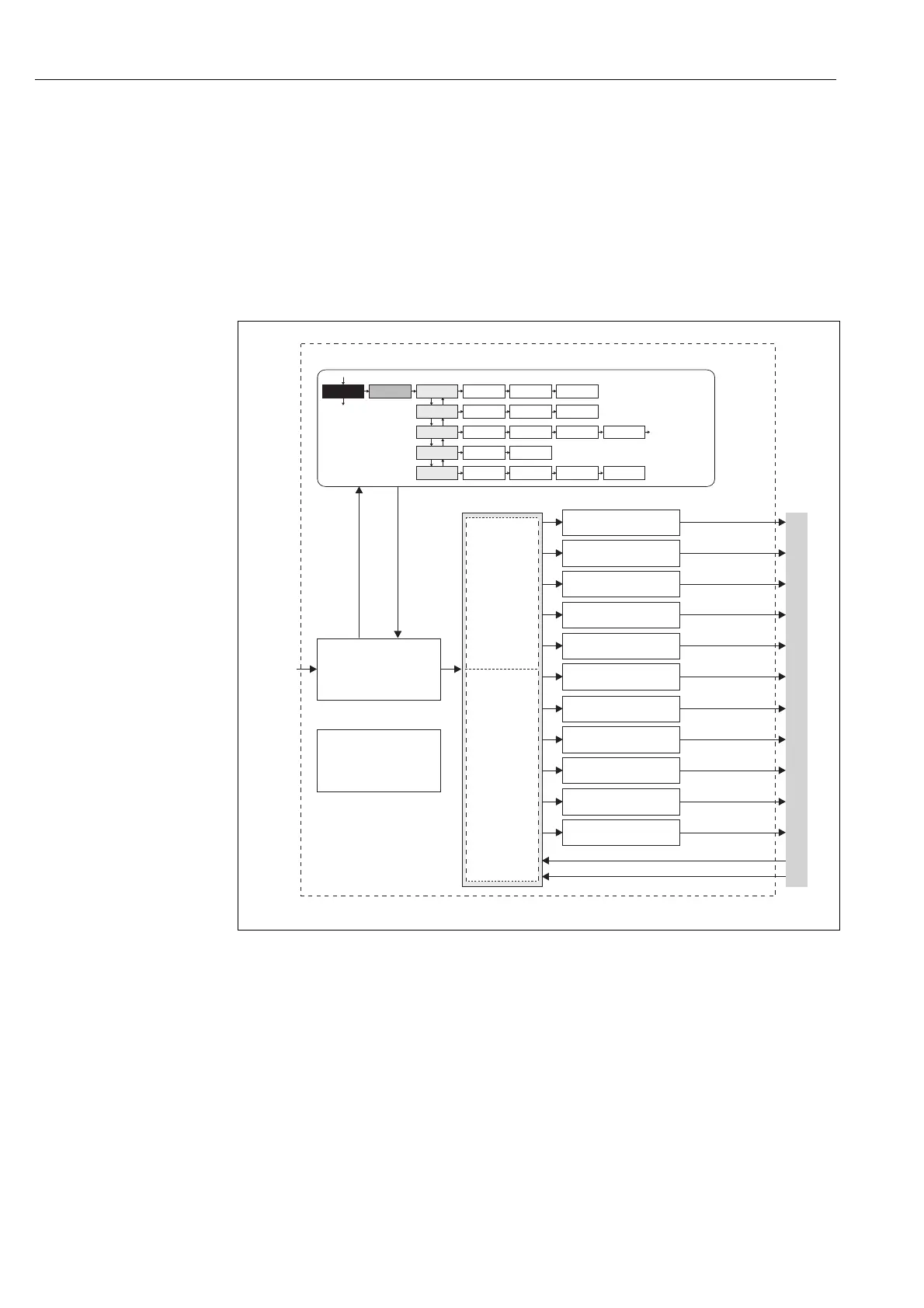

Fig. 68: Block model for Prosonic Flow 93 PROFIBUS-DP/-PA Profile 3.0
...
...
...
Local operation
BASIC
FUNKTION
PROFIBUS-DP/-PA
CONFIGURATION
TAG NAME
BUS
ADDRESS
WRITE
PROTECT
FUNCTION
BLOCKS
BLOCK
SELECTION
OUT
VAL UE
DISPLAY
VAL UE
TOTALIZER
SELECT
TOTALIZER
TOTALIZER
OUT VALUE
CHANNEL
UNIT
TOTALIZER
OPERATION
SELECTION
GSD
SET UNIT TO
BUS
INFORMATION
PROFILE
VERSION
ACTUAL
BAUD RATE
DEVICE
ID
CHECK
CONFIGURATION
Signal processing
PROFILE
Parameter
Manufacturer
specific
parameter
Physical Block
Sensor
Analog Input Fct.-block 1
OUT VALUE
Value/Status
Analog Input Fct.-block 2
OUT VALUE
Value/Status
Analog Input Fct.-block 3
OUT VALUE
Value/Status
Analog Input Fct.-block 4
OUT VALUE
Value/Status
Analog Input Fct.-block 5
OUT VALUE
Value/Status
Analog Input Fct.-block 8
OUT VALUE
Value/StatusValue/Status
DISPLAY VALUE
Control
(manufacturer specific)
Totalizer 1
Totalizer 2
Totalizer 3
Value/Status
Value/Status
Value/Status
TOT 1-OUT VALUE
Value/Status
TOT 2-OUT VALUE
Value/Status
TOT 3-OUT VALUE
Value/Status
Analog Input Fct.-block 6
Analog Input Fct.-block 7
OUT VALUE
OUT VALUE
PROFIBUS-DP/-PA
Transducer Block CH1/CH2
F06-93xPBxxx-16-xx-xx-en-002
