Endress+Hauser SpectraSensors SS500e User Manual

SS500e/SS2000e/SS3000e Gas Analyzer
3–6 4900002230 rev. D 2-6-20
3. For AC systems, pull ground, neutral and hot wires (#14 AWG
minimum) into the electronics enclosure. For DC systems, pull
ground, plus and minus wires.

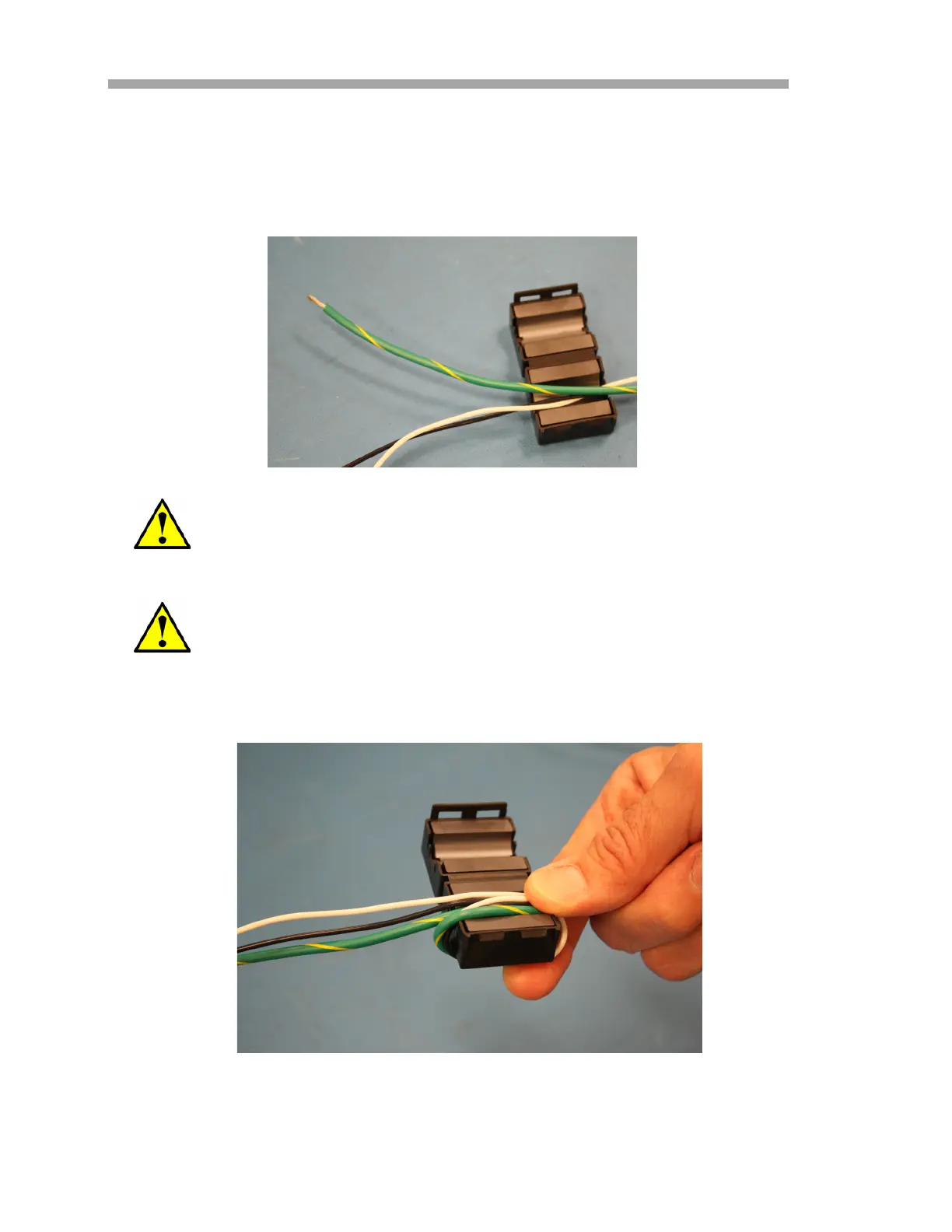

4. In keeping with best practices, run the wires through the provided
ferrite as shown below.
5. Wrap the wires tightly around the ferrite as shown below.
Proper installation and use of the provided ferrite is required for
electromagnetic immunity rating.
The ferrite is fragile and will break if dropped. Use caution when
handling.
