TRANSFER UNIT
Do not touch or damage the BELT section of the TRANSFER UNIT.

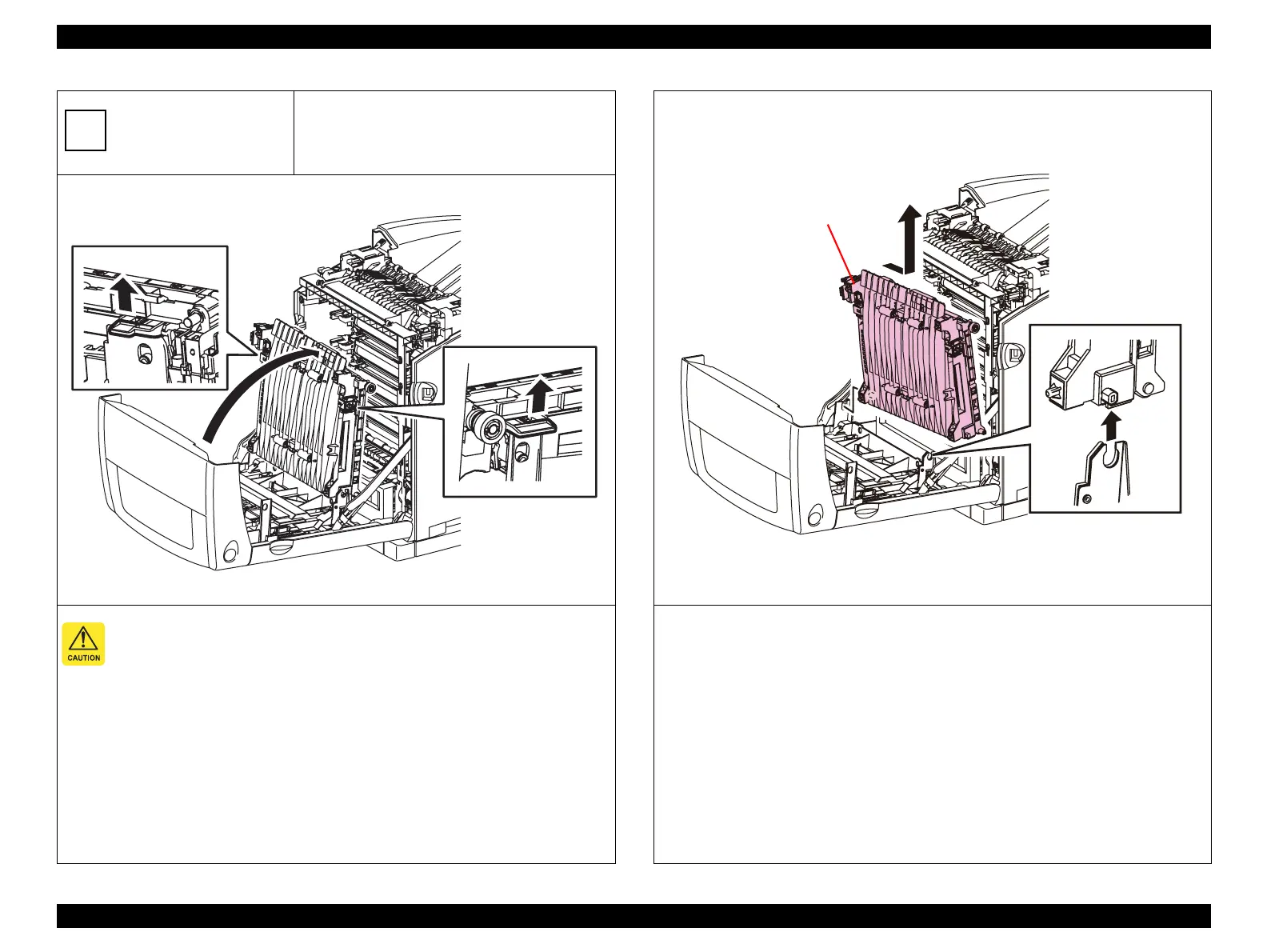

1. Pull the levers on the left and right side of the TRANSFER UNIT to unlock the lock, and raise the
TRANSFER UNIT straight up to 90°.
NEXT>>
A
Kmy03030EA
1)-1
1)-2
1)-1
2. Disengage the guide pin on the right side of the TRANSFER UNIT from the cutout of the COVER
ASSY FRONT, remove the guide pin on the left side of the TRANSFER UNIT from the hole on the
COVER ASSY FRONT, and remove the TRANSFER UNIT.
Kmy03031EA
2)-1
2)-2
TRANSFER UNIT
