AcuLaser C2800/C2800D/C3800/C38
00D
Revision C
DISASSEMBLY/REASSEMBLY
Disassembly/Reassembly
240
Confidential

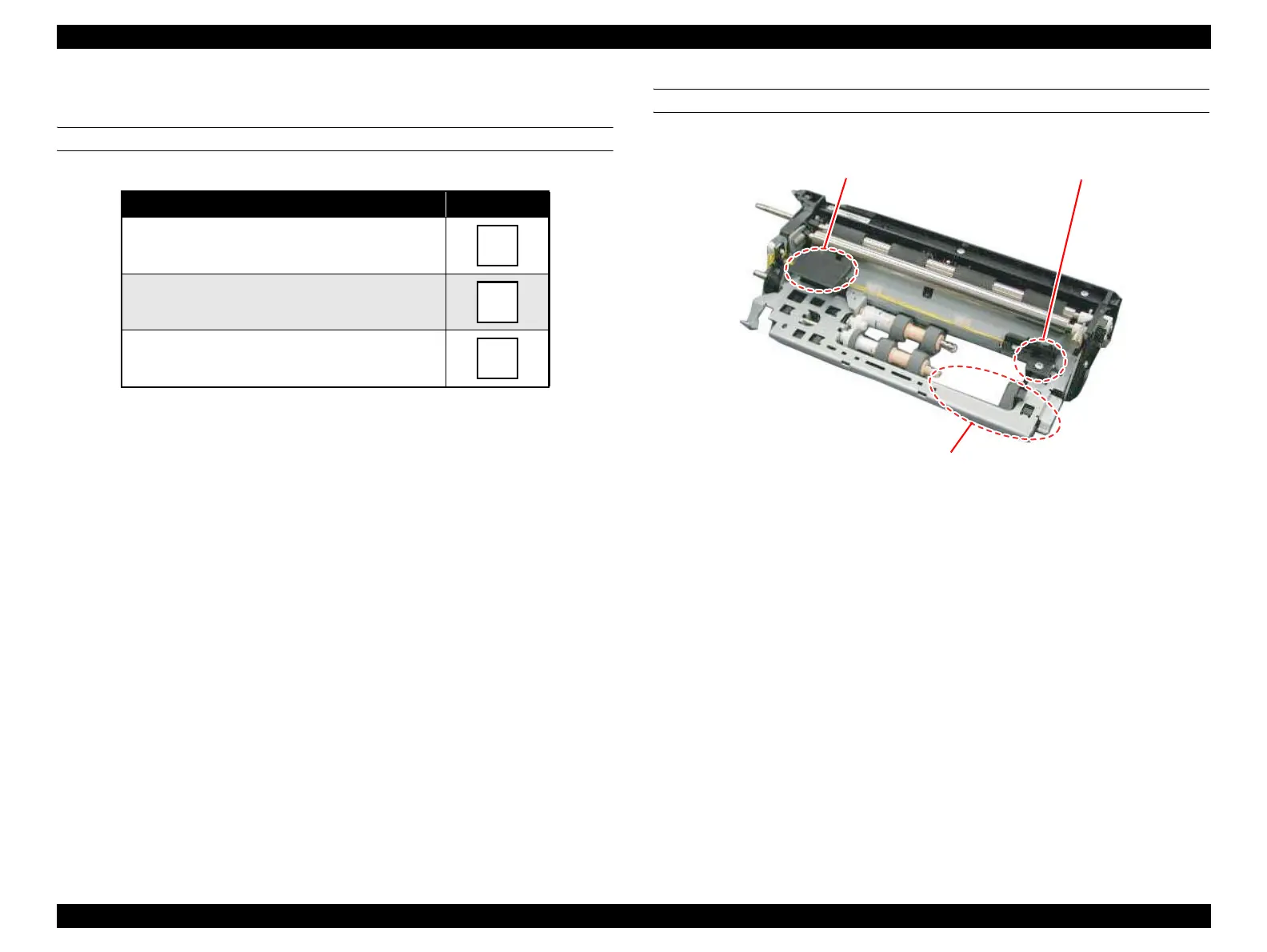

4.4.10 PAPER FEEDER (PART 3)
DISASSEMBLED PARTS
LOCATION
Table 4-9. List of
Disassembled Parts
Name
Guide
SENSOR PHOTO:CST NO PAPER
ACTUATOR NO PAPER A4
PWBA OHP SN
R
A
B
C
SENSOR PHOTO:CST NO PAPER
ACTUATOR NO PAPER A4
PWBA OHP SNR
239
241
