AcuLaser C2800/C2800D/C3800/C3800D Revision C
DISASSEMBLY/REASSEMBLY Disassembly/Reassembly 241
Confidential

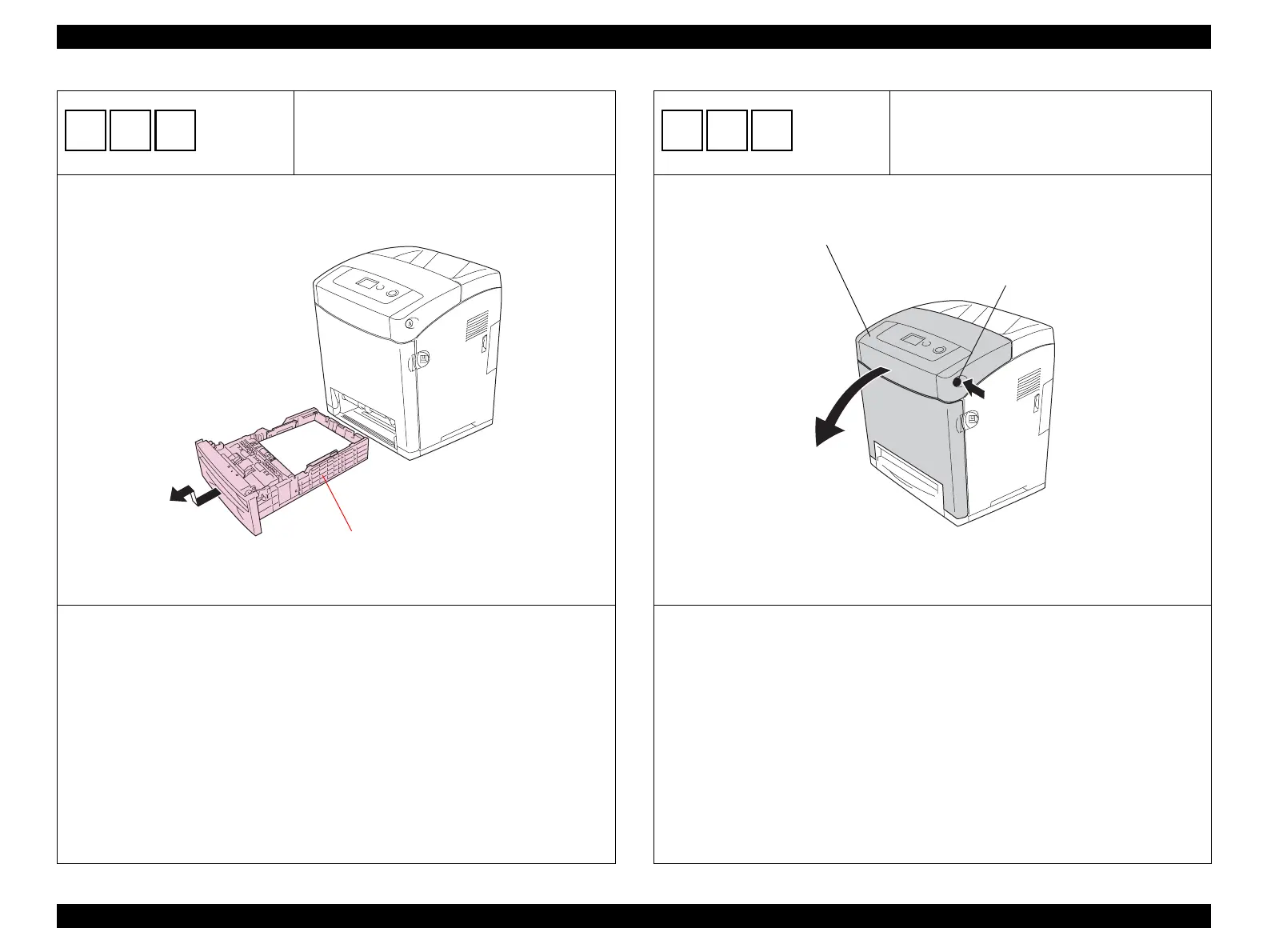

CASSETTE ASSY 550 IOT
1. Pull the CASSETTE ASSY 550 IOT out.
A
B
C
CASSETTE ASSY 550 IOT
COVER ASSY FRONT
1. Press the latch on the COVER ASSY FRONT and open the COVER ASSY FRONT.
A
B
C
1) -1
1) -2
LATCH
COVER ASSY FRONT
