OPERATING PRINCIPLES Drive Transmission Path 71
Confidential
2.8.4 MOTOR ASSY DUP
The drive force of the MOTOR ASSY DUP is transmitted as shown in the flowchart below:
DUPLEX PRINT MODE

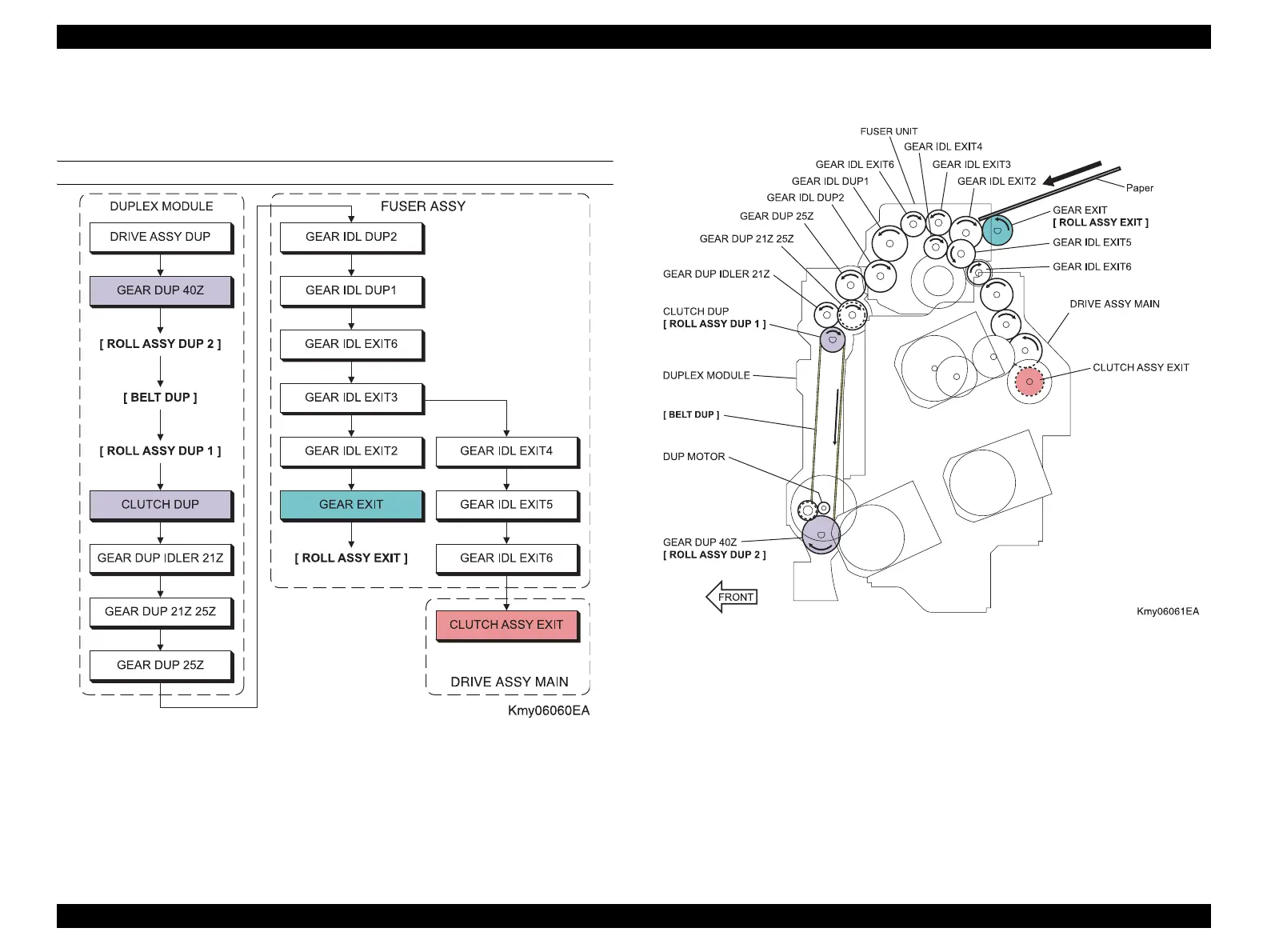

Figure 2-52. Drive Transmission Flow (MOTOR ASSY DUP)
Figure 2-53. Drive Transmission Path (MOTOR ASSY DUP)
