AcuLaser C2800/C2800D/C3800/C3800D Revision C
OPERATING PRINCIPLES Drive Transmission Path 66
Confidential
2.8 Drive Transmission Path
2.8.1 DRIVE ASSY MAIN
DRIVE ASSY MAIN consists of Main Motor, Sub Motor, and Deve Motor.
(Refer to “2.5.7 Drive (p52) ”.)
The following section explains drive transmission from DRIVE ASSY MAIN to each
unit by dividing the flow into two sections: development/transfer and fusing/ejection.
DEVELOPMENT/TRANSFER
BLACK and WHITE MODE

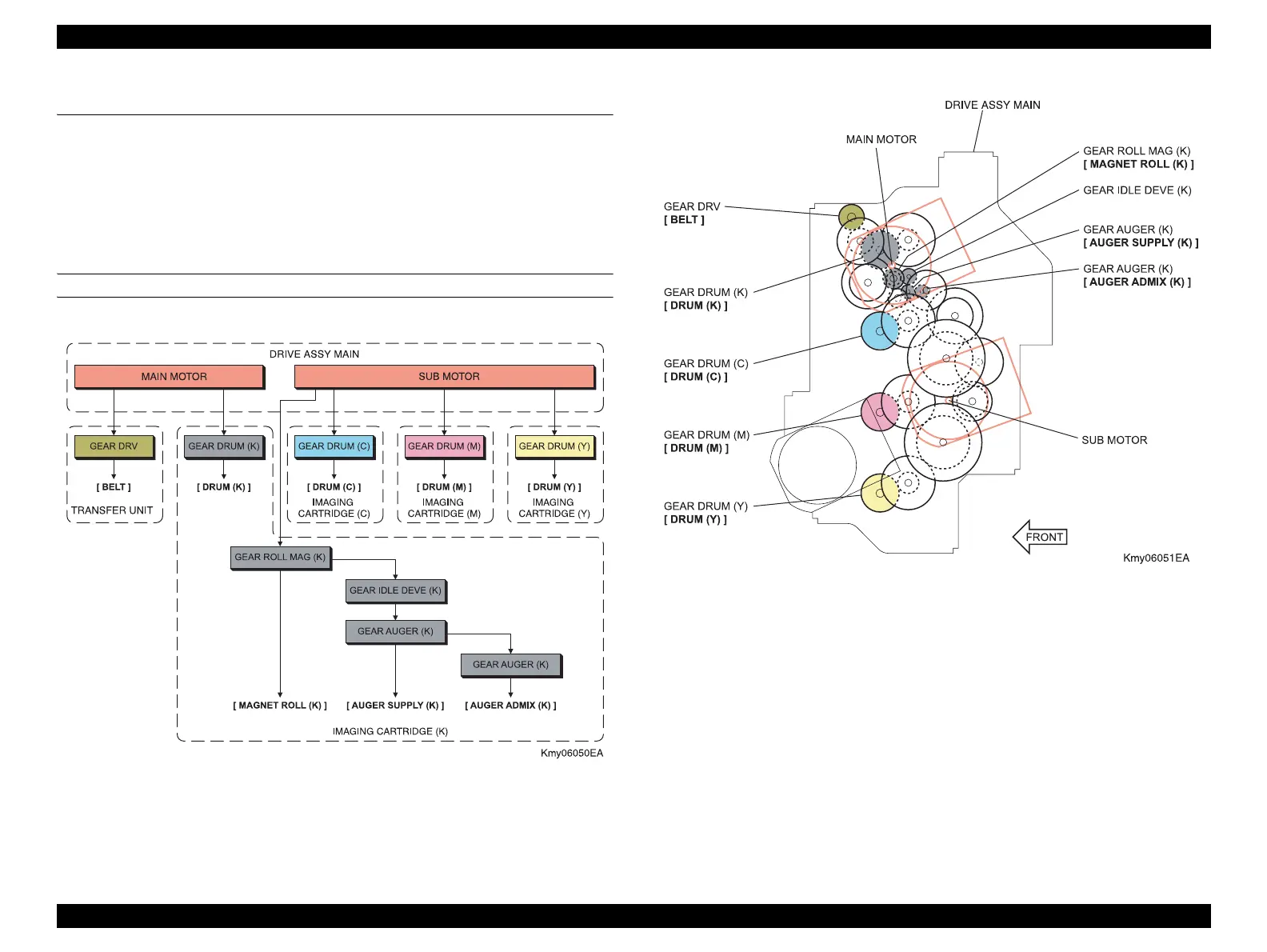

Figure 2-42. Drive Transmission Flow (Development/Transfer)
Figure 2-43. Drive Transmission Path (Development/Transfer)
To Next Page
