AcuLaser C2800/C2800D/C3800/C3800D Revision C
DISASSEMBLY/REASSEMBLY Disassembly/Reassembly 225
Confidential
KIT ROLL ASSY FEED SEC (FEED, NUDGER)
KIT ROLL ASSY FEED SEC consists of three rollers; one is installed in the CASSETTE
ASSY 550 IOT and the other two in the FEEDER ASSY, and is provided in a set. When
replacing these rollers, be sure to replace them at one time.

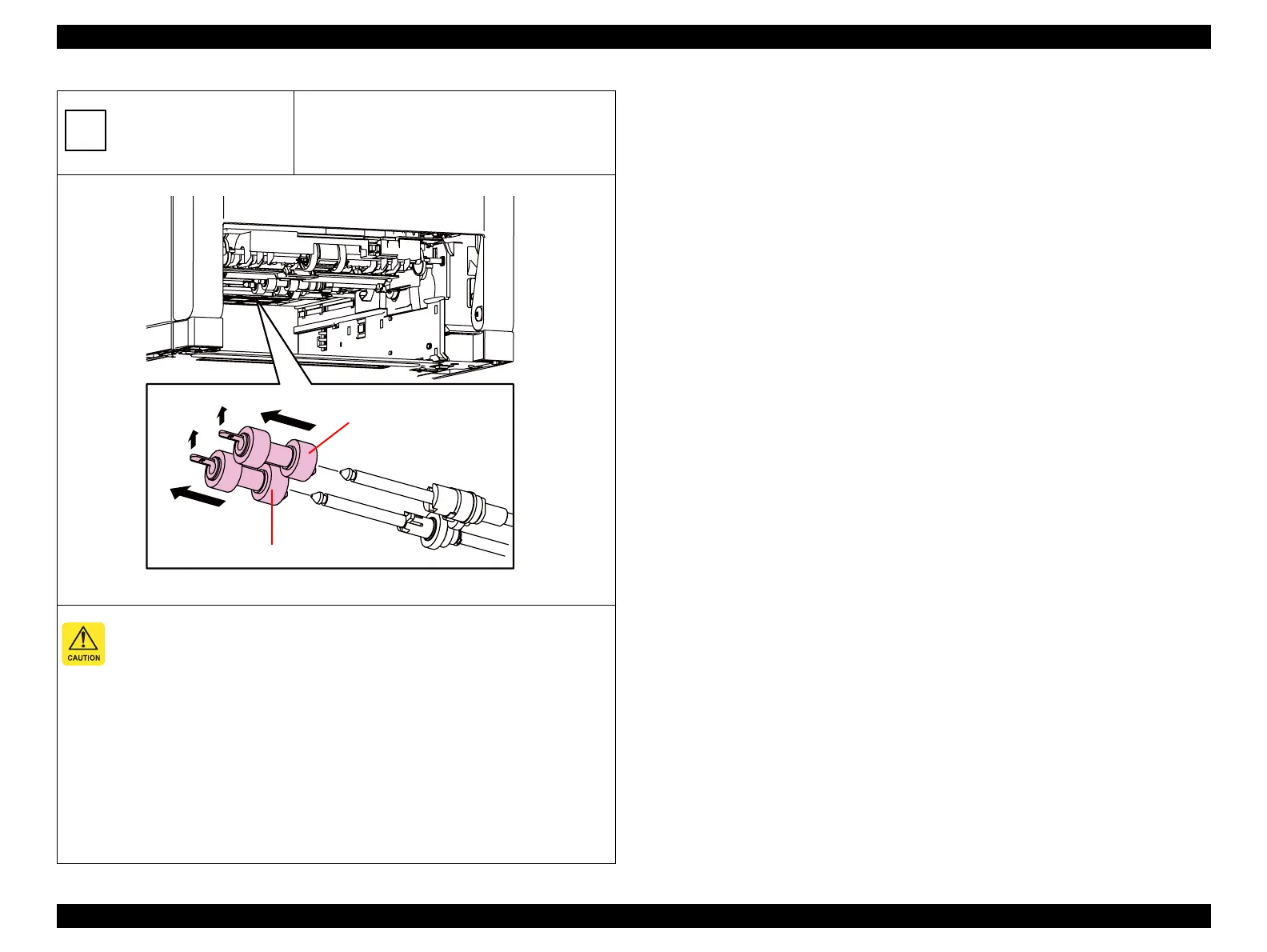

1. Release the tabs of the KIT ROLL ASSY FEED SECs (FEED, NUDGER) and remove the KIT
ROLL ASSY FEED SECs (FEED, NUDGER) from the shafts.
C
Kmy03029EA
1)-1
1)-1
1)-2
1)-2
KIT ROLL ASSY FEED SEC (NUDGER)
KIT ROLL ASSY
FEED SEC (FEED)
