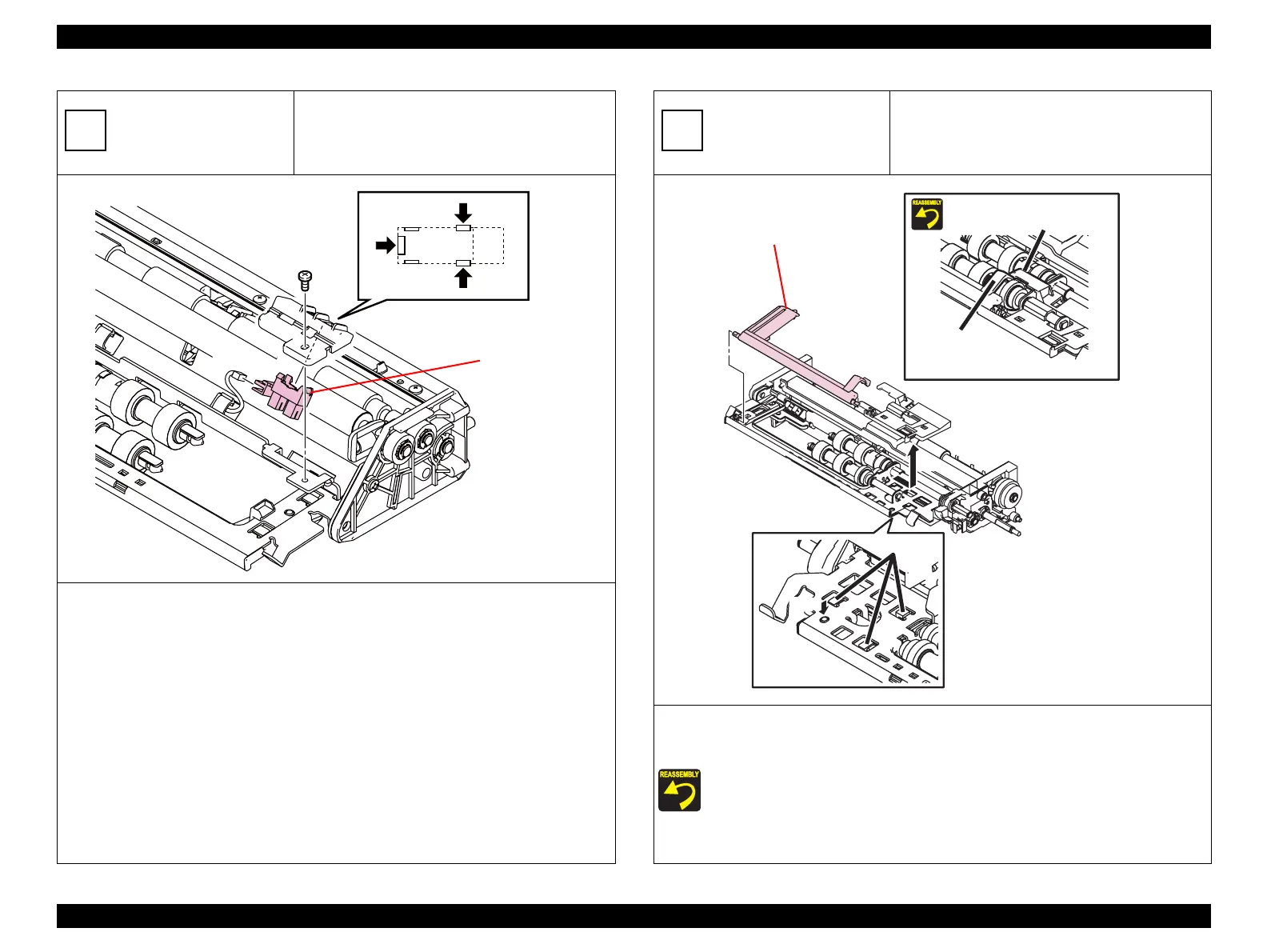

SENSOR PHOTO:CST NO PAPER
1. Remove the screw (silver, 6 mm) that secures the HOLDER NO SNR to the FEEDER ASSY, and
remove the HOLDER NO SNR.
2. Release the three tabs that secure the SENSOR PHOTO:CST NO PAPER to the HOLDER NO SNR,
and remove the SENSOR PHOTO:CST NO PAPER.
3. Disconnect the connector (P/J2321) of the SENSOR PHOTO:CST NO PAPER.
A
Kmy03217EA
2)
3) (J2321)
1)
SENSOR PHOTO:
CST NO PAPER
ACTUATOR NO PAPER A4
1. Holding down the circular tab that secures the HOLDER NO PAPER L A4 to the SUPPORT ASSY
NUDGER, disengage the three tabs, and remove the HOLDER NO PAPER L A4 by sliding it sideways.
The stopper of the ACTUATOR NO PAPER A4 should be inserted underneath the
HOLDER NO PAPER L A4.
2. Pull the shaft of the ACTUATOR NO PAPER A4 out of the hole of the HOLDER NO PAPER R A4,
and remove the ACTUATOR NO PAPER A4.
B
Kmy03219EA
2)
1)-1
1)-2
ACTUATOR
NO PAPER A4
Stopper
HOLDER NO
PAPER L A4
T
ab
ACTUATOR
NO PAPER A4
