AcuLaser C2800/C2800D/C3800/C3800D Revision C
DISASSEMBLY/REASSEMBLY Disassembly/Reassembly 269
Confidential

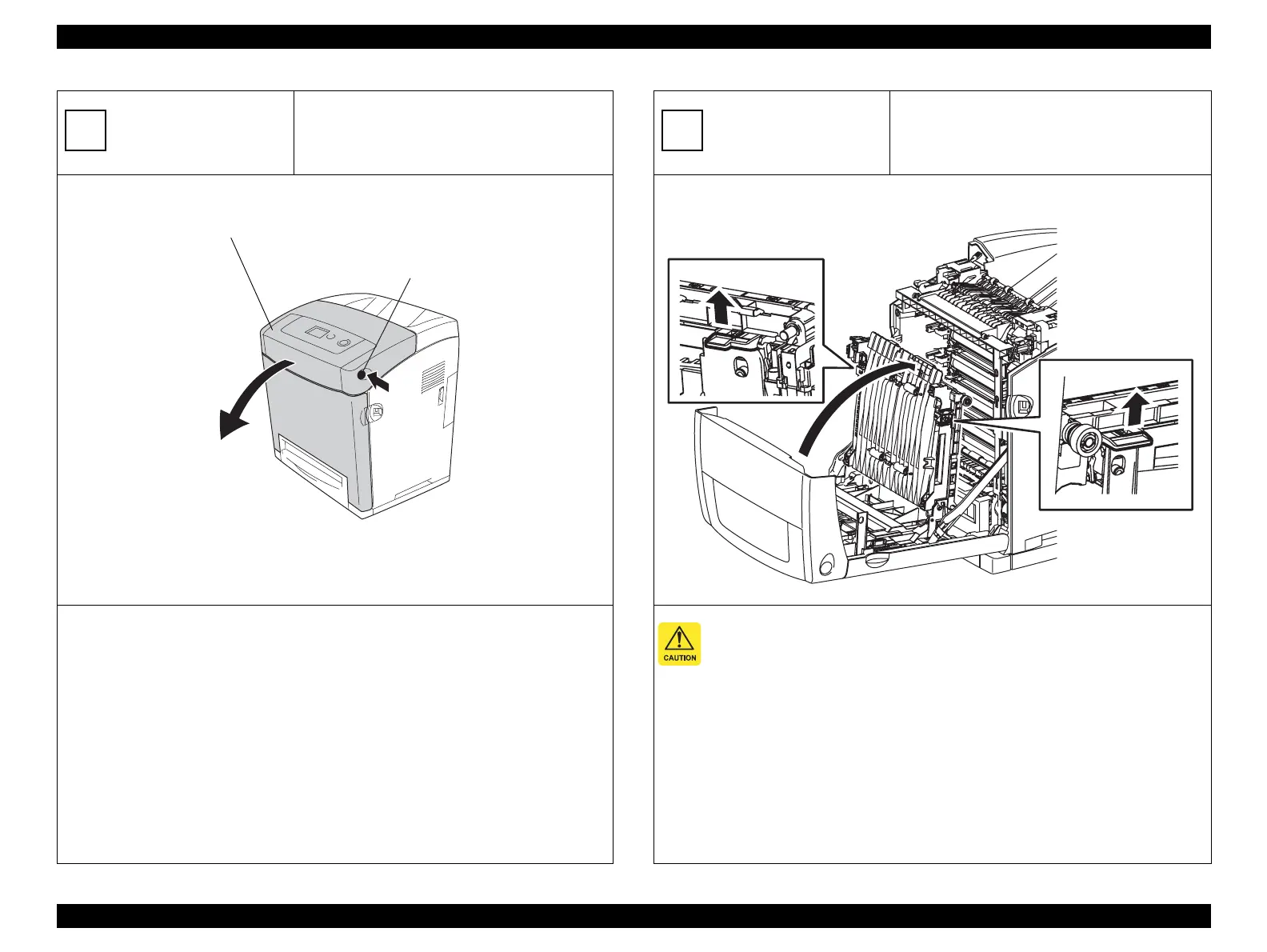

COVER ASSY FRONT
1. Press the latch on the COVER ASSY FRONT and open the COVER ASSY FRONT.
A
1) -1
1) -2
LATCH
COVER ASSY FRONT
TRANSFER UNIT
Do not touch or damage the BELT section of the TRANSFER UNIT.
1. Pull the levers on the left and right side of the TRANSFER UNIT to unlock the lock, and raise the
TRANSFER UNIT straight up to 90°.
NEXT>>
A
Kmy03030EA
1)-1
1)-2
1)-1
