Epson Artisan 700/Epson Stylus Photo PX700W/TX700W Revision C
DISASSEMBLY/ASSEMBLY Disassembly Procedures 119
Confidential
 FAX Board (IF-B Board) (Artisan 800/PX800FW/TX800FW only)
1. Disconnect the I/F-B FFC from the FAX Board. (See Fig. 4-43.)
2. Remove the screws (x4) that secure the Shield Plate FAX,
and remove the
Shield Plate FAX from the Upper Shield Plate M/B.

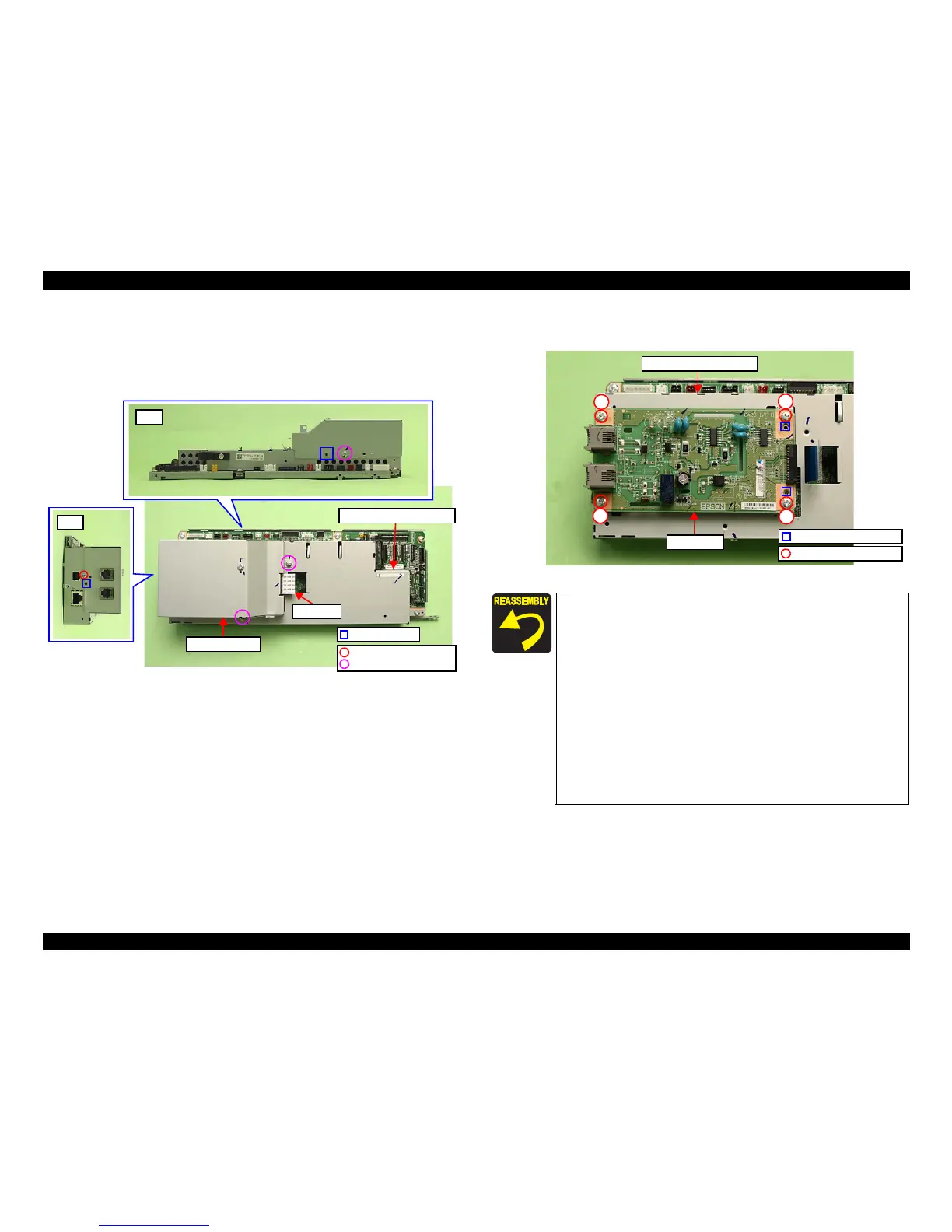

Figure 4-43. Removing the FAX Board (1)
3. Remove the screws (x4) that secure the FAX Board and remove the FAX
Board from
the
Upper Shield Plate M/B .
Figure 4-44. Removing the FAX Board (2)
Upper Shield Plate M/B
Top
Shield Plate FAX
Rear
C.B.S. 3x6 (4±1Kgfcm)
C.P. 3x6 (4±1Kgfcm)
I/F-B FFC
Dowel & groove
 Align the positioning holes (x2) of the Main Board with the
dowels (x2) of the Upper Shield Plate M/B. (See Fig. 4-42.)
 When installing the Main Board, tighten the screws in the or
der
shown in Fig. 4-42.
 Align the dowels (x2) of the Lower Shield Plate M/B with the
grooves (x2) of the Upper
Shield Plate M/B. (See Fig. 4-41.)
 Align the positioning holes (x2) of the FAX Board with the
dowels of the Upper Shield Plate M/B. (See Fig. 4-44.)
 When installing the
FAX Board, tighten the screws in the order
shown in Fig. 4-44.
 Align the grooves (x2) of the Shield Plate FAX with the dowels
(x2) of the Upper Shield Plate M/
B. (See Fig. 4-43.)
 Align the positioning hole (x1) of the Main Board with the dowel
(x1) of the Upper Shield Plate M/B. (See Fig. 4-4
0.)
C.B.S. 3x6 (4±0.5Kgfcm)
1
2
3
4
Upper Shield Plate M/B
FAX Board
Positioning hole & dowel
