Epson DiscProducer PP-100N User Manual

13

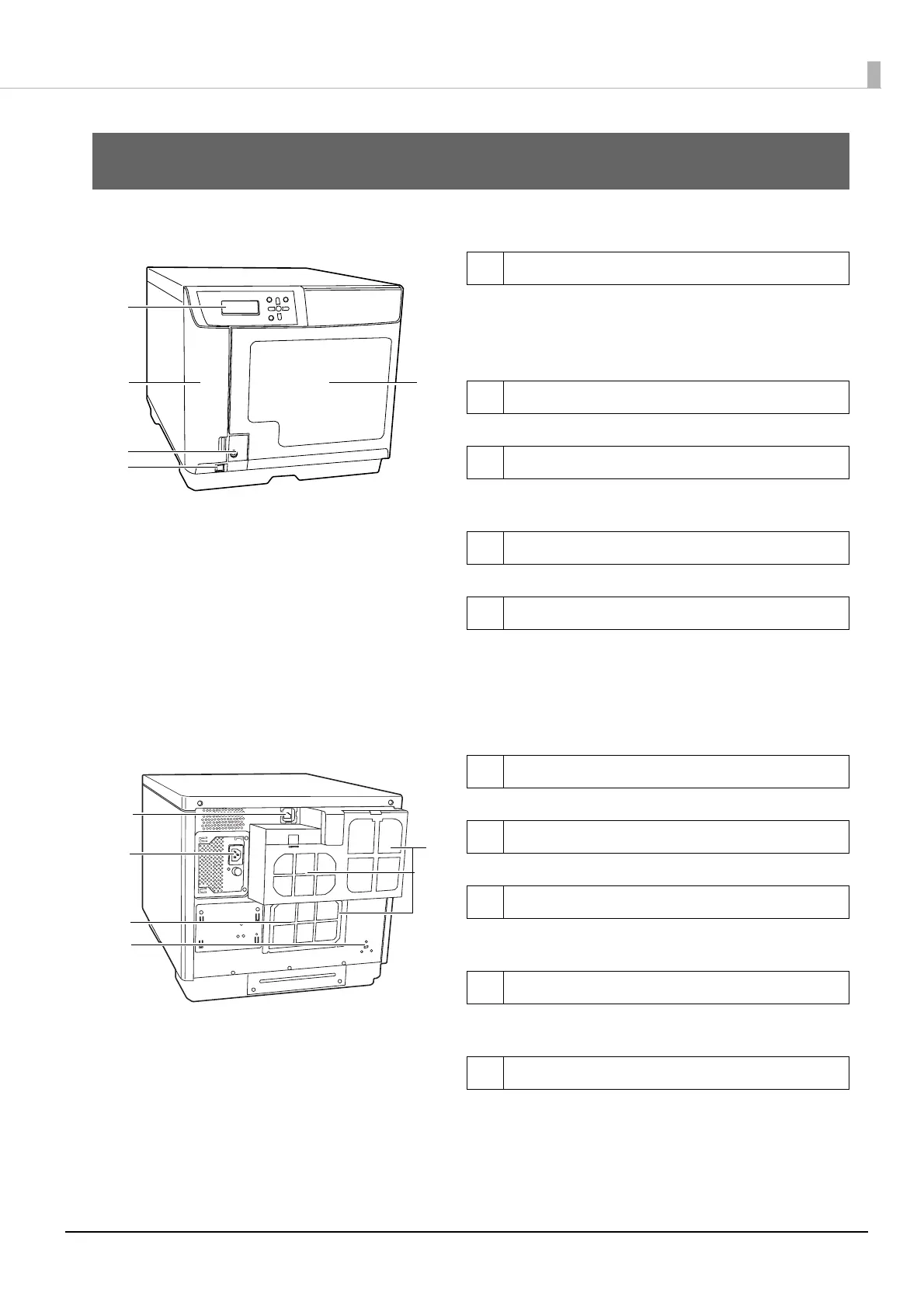

Part Names and Functions
Part Names and Functions
Front
Back
1Control panel
Use to control this product (PP-100N). It also
shows the status of the product and menus.
See “Control panel” on page 15 in this guide for
details on the control panel.
2 Ink cartridge cover
Open to insert and replace ink cartridges.
3 Disc cover lock
Use the disc cover key to lock and unlock the
disc cover (when the security lock switch is on).
4 Power button
Use to turn the product on and off.
5 Disc cover
Open when loading or taking out discs.
1 Ethernet interface connector
Plug the Ethernet cable into this connector.
2 AC inlet
Plug the power cord into this connector.
3 Rear printer cover
Open this cover only when a disc is stuck in the
printer tray.
4 Security slot
Allows you to attach a commercially available
antitheft wire.
5Air vents
Expel heat generated inside this product to
prevent the temperature from rising. Leave at
least 10 cm between the back of the product
and the wall for ventilation.
2
1
4
5
3
1
4
2
3
5

Epson DiscProducer PP-100N Specifications

General

Capacity	50 discs
Interface	Ethernet
Product color	Black, Grey
Printing colors	Black, Cyan, Light cyan, Light magenta, Magenta, Yellow
Country of origin	China
Quantity per pack	1 pc(s)
Media types supported	CD-R, DVD-R, DVD+R, DVD-R DL, DVD+R DL
Optical disc diameter	120 mm
Publishing speed (CD)	30 discs/hour
Publishing speed (DVD)	17 discs/hour
Number of CD/DVD drives	2
Compatible operating systems	Windows 7, Windows 8 (32/64 bit), Windows Server 2003 (32/64bit), Windows Server 2008 (32/64bit), Windows Server 2012 (64bit), Windows Vista, Windows XP
Print speed (speed mode)	60 discs/hour
Print speed (quality mode)	42 discs/hour
Print resolution (speed mode)	1440 x 1440 DPI
Print resolution (quality mode)	1440 x 720 DPI
CD write speed	40 x
DVD-R write speed	12 x
Ethernet LAN (RJ-45) ports	1
Ethernet LAN	Yes
Pallet width	800 mm
Pallet height	1011 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	6 pc(s)
Quantity per pallet layer	2 pc(s)

Weight and Dimensions

Package depth	725 mm
Package height	525 mm
Package weight	29200 g
Dimensions (WxDxH)	730 x 530 x 522 mm
