Changing the print area
Changing the print area setting allows you to print the label at a size other than standard and wide.
EPSON Total Disc Maker:
Use the following procedure to set an optional print area.
1
Start EPSON Total Disc Maker.
See “Starting EPSON Total Disc Maker” on page 42 in this guide for the start procedure.
2
Click [Label].
The label view appears.
3
Click [Set Inside/Outside Diameter] on the toolbar.

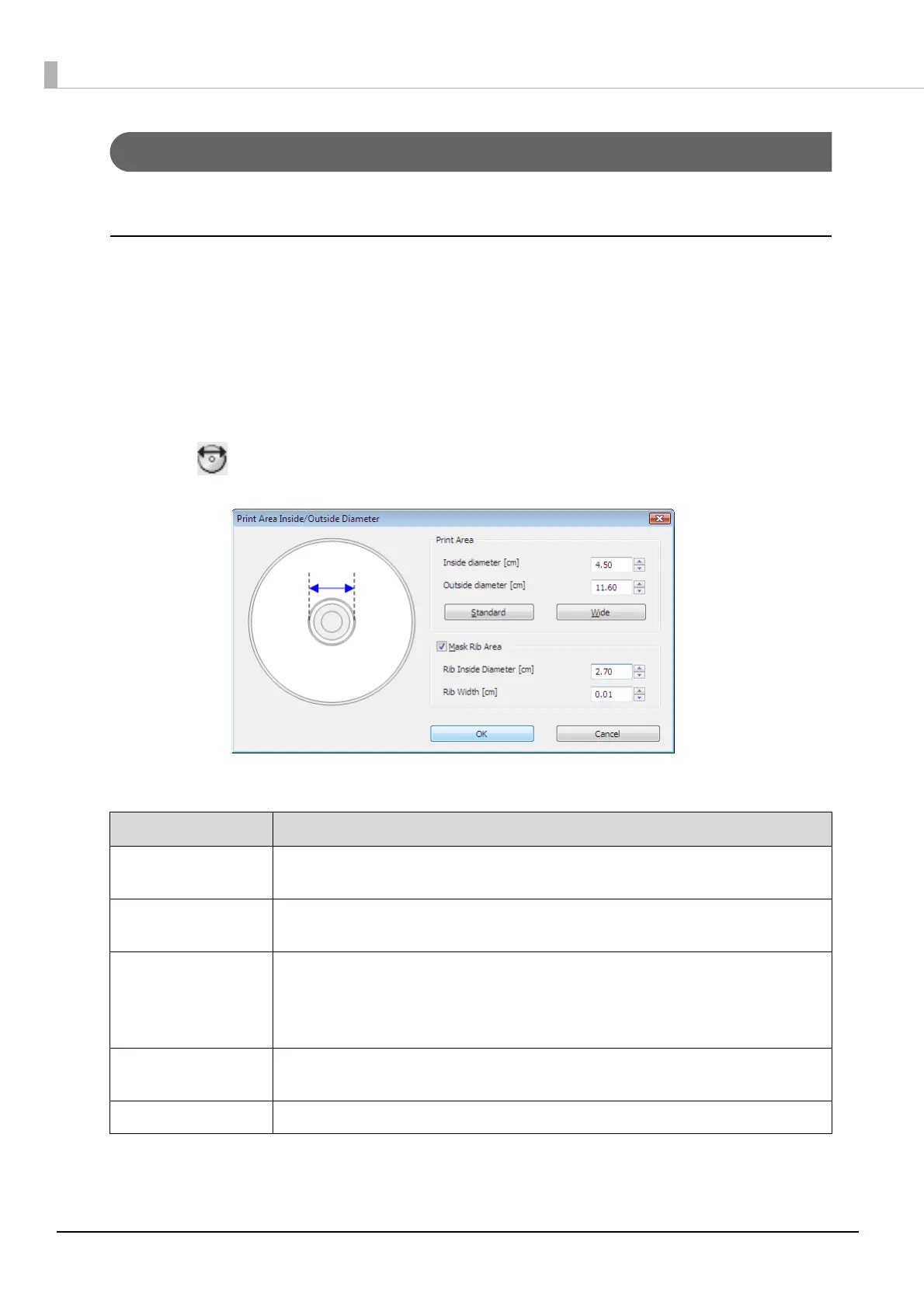

The [Print Area Inside/Outside Diameter] dialog box appears.
4
Set the inside and outside diameters of the print area, and the rib area.
Setting item Description
Inside Diameter
Set the inside diameter of the label. You can set a value within the range of 1.80
to 5.00.
Outside Diameter
Set the outside diameter of the label. You can set a value within the range of
7.00 to 11.94.
Mask Rib Area
Select this to mask the rib area.
Rib refers to the protruding section of the disc inside circumference.
Masking the rib area enables you to prevent ink running onto the rib when a
printed disc and rib touch in the output stacker.
Rib Inside Diameter
Set the inside diameter of the rib area. You can set a value within the range of
2.70 to 5.00.
Rib Width Set the width of the rib area. You can set a value within the range of 0.01 to 1.15.

Epson DiscProducer PP-100N Specifications

General

Capacity	50 discs
Interface	Ethernet
Product color	Black, Grey
Printing colors	Black, Cyan, Light cyan, Light magenta, Magenta, Yellow
Country of origin	China
Quantity per pack	1 pc(s)
Media types supported	CD-R, DVD-R, DVD+R, DVD-R DL, DVD+R DL
Optical disc diameter	120 mm
Publishing speed (CD)	30 discs/hour
Publishing speed (DVD)	17 discs/hour
Number of CD/DVD drives	2
Compatible operating systems	Windows 7, Windows 8 (32/64 bit), Windows Server 2003 (32/64bit), Windows Server 2008 (32/64bit), Windows Server 2012 (64bit), Windows Vista, Windows XP
Print speed (speed mode)	60 discs/hour
Print speed (quality mode)	42 discs/hour
Print resolution (speed mode)	1440 x 1440 DPI
Print resolution (quality mode)	1440 x 720 DPI
CD write speed	40 x
DVD-R write speed	12 x
Ethernet LAN (RJ-45) ports	1
Ethernet LAN	Yes
Pallet width	800 mm
Pallet height	1011 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	6 pc(s)
Quantity per pallet layer	2 pc(s)

Weight and Dimensions

Package depth	725 mm
Package height	525 mm
Package weight	29200 g
Dimensions (WxDxH)	730 x 530 x 522 mm
