Epson DiscProducer PP-100N User Manual

138
6

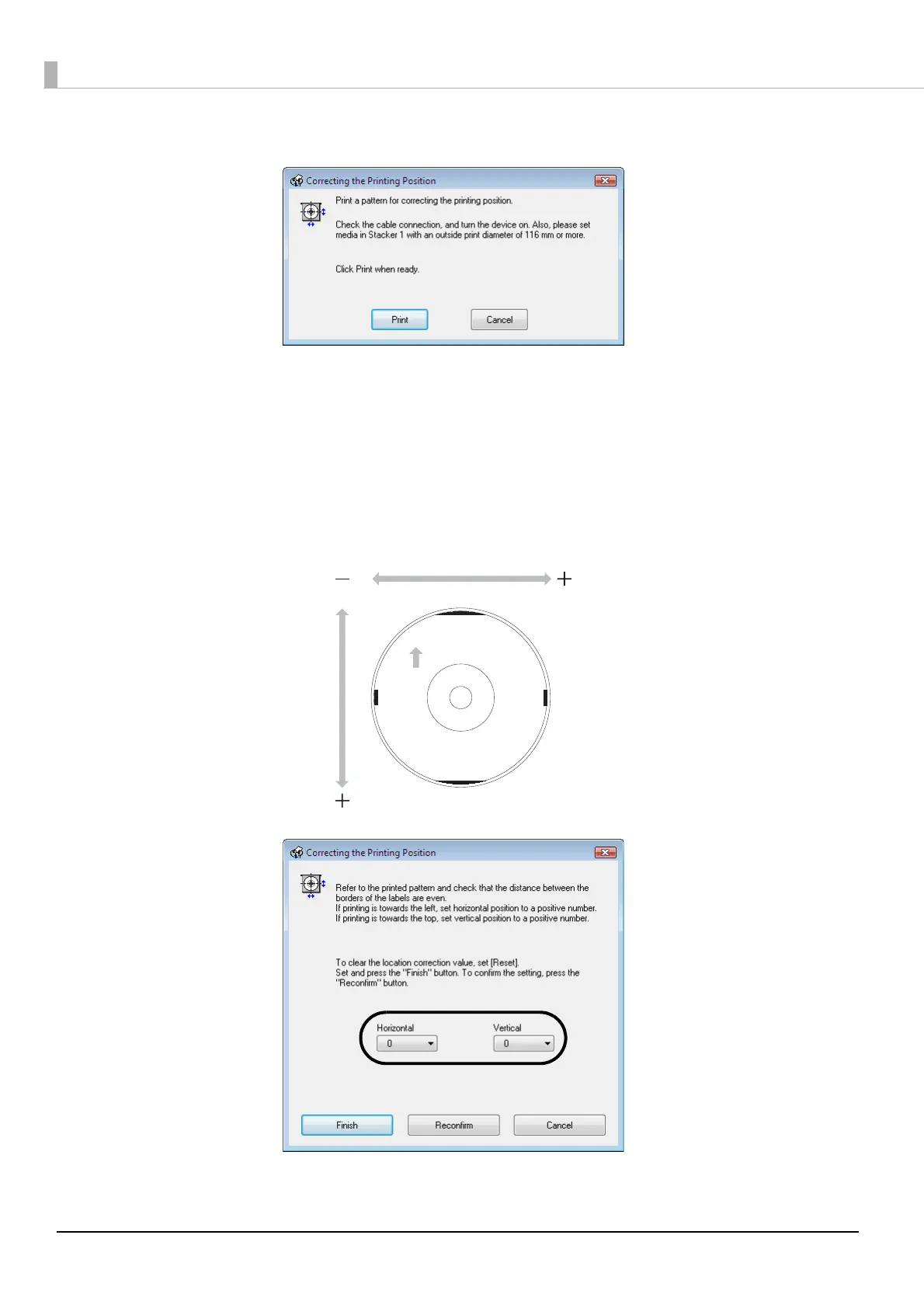

Click the [Print] button.
The disc on which there are five lines printed on the top, bottom, left and right respectively as well as one blue
upward-pointing arrow is output to Stacker 3 or Stacker 4.
7
Click [Finish] if the lines on the top, bottom, left and right are evenly printed on the label
surface. If they are not printed evenly, adjust the alignment in one of the following ways.
• If the printing has shifted to the left: Select a positive correction value in [Horizontal].
• If the printing has shifted to the right: Select a negative correction value in [Horizontal].
• If the printing has shifted to the top: Select a positive correction value in [Vertical].
• If the printing has shifted to the bottom: Select a negative correction value in [Vertical].

Epson DiscProducer PP-100N Specifications

General

Capacity	50 discs
Interface	Ethernet
Product color	Black, Grey
Printing colors	Black, Cyan, Light cyan, Light magenta, Magenta, Yellow
Country of origin	China
Quantity per pack	1 pc(s)
Media types supported	CD-R, DVD-R, DVD+R, DVD-R DL, DVD+R DL
Optical disc diameter	120 mm
Publishing speed (CD)	30 discs/hour
Publishing speed (DVD)	17 discs/hour
Number of CD/DVD drives	2
Compatible operating systems	Windows 7, Windows 8 (32/64 bit), Windows Server 2003 (32/64bit), Windows Server 2008 (32/64bit), Windows Server 2012 (64bit), Windows Vista, Windows XP
Print speed (speed mode)	60 discs/hour
Print speed (quality mode)	42 discs/hour
Print resolution (speed mode)	1440 x 1440 DPI
Print resolution (quality mode)	1440 x 720 DPI
CD write speed	40 x
DVD-R write speed	12 x
Ethernet LAN (RJ-45) ports	1
Ethernet LAN	Yes
Pallet width	800 mm
Pallet height	1011 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	6 pc(s)
Quantity per pallet layer	2 pc(s)

Weight and Dimensions

Package depth	725 mm
Package height	525 mm
Package weight	29200 g
Dimensions (WxDxH)	730 x 530 x 522 mm
