Using an Optional Front Sheet or Front Paper Guide
The optional front sheet guide (C81400
✽
) and front paper guide
(C81402
✽
) fit inside the front of the printer. These options allow
you to load single sheets and carbonless single-sheet multi-part
forms of up to 6 parts (one original and five copies). Paper used
with front guides must be 148 to 257 mm (5.8 to 10.1 inches) wide
and can only be loaded one sheet at a time.
The optional front sheet guide (C81400
✽
) provides you with
the best paper jam prevention, but you need to remove the
tractor from the front push position to use it. You can use the
optional front paper guide (C81402
✽
) without removing the
tractor from the front push position.
The installation and paper loading procedures described below
apply to both the front paper guide and the front sheet guide.
Separate illustrations are provided where necessary; please
refer to the appropriate illustrations when installing and using
these options.
Note:
These options are not available in some countries.
Installing the front sheet or front paper guide

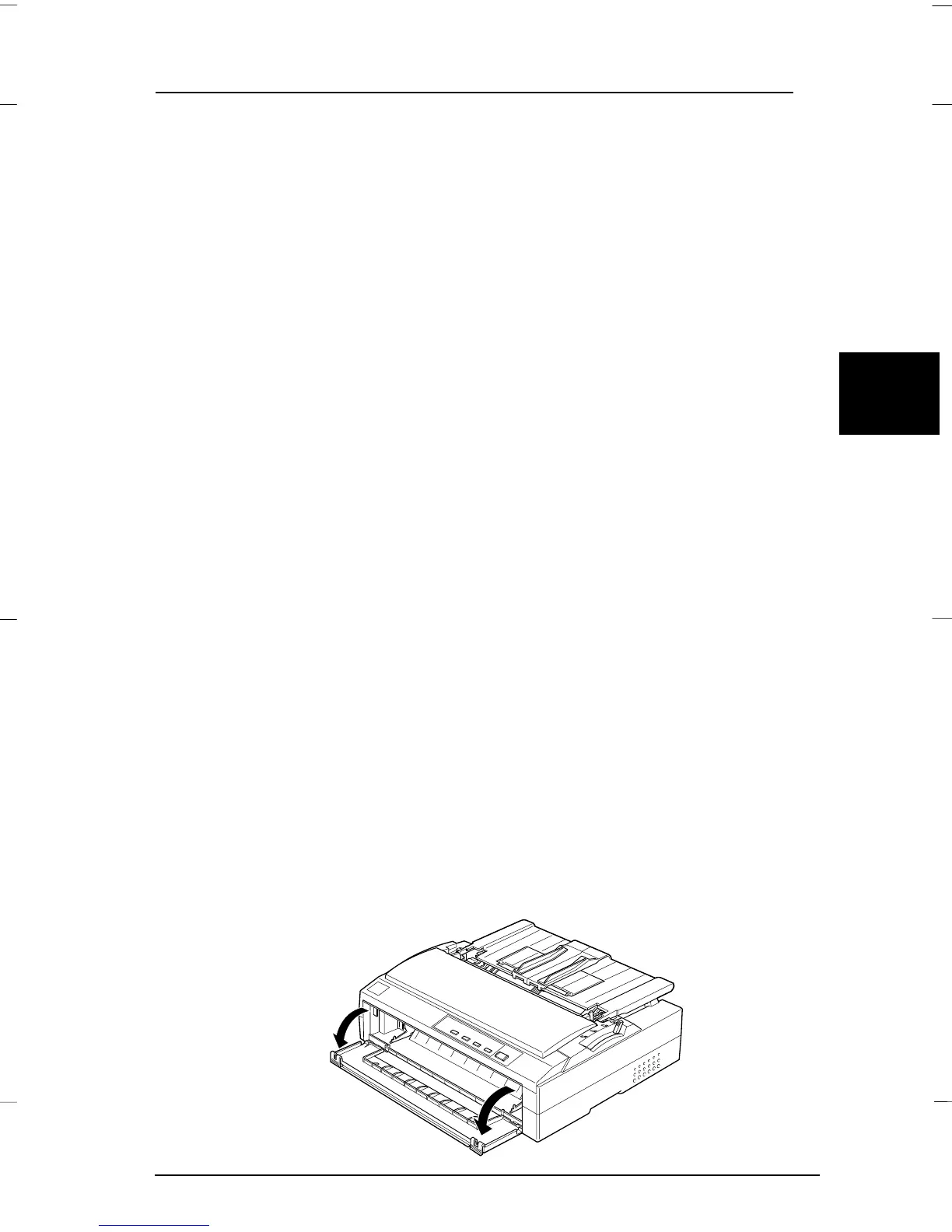

1. Open the front cover. If you are installing the front sheet guide,
remove the tractor unit if it is installed in the front position. To
remove it, press the tractor’s lock tabs, then tilt the tractor up
and pull it out of the printer.
G4-18-1
4
Gentian Rev.c
A5 size Chapter 4
97/06/20 pass 0
Printing on Single Sheets
4-17
