high-capacity cut-sheet feeder

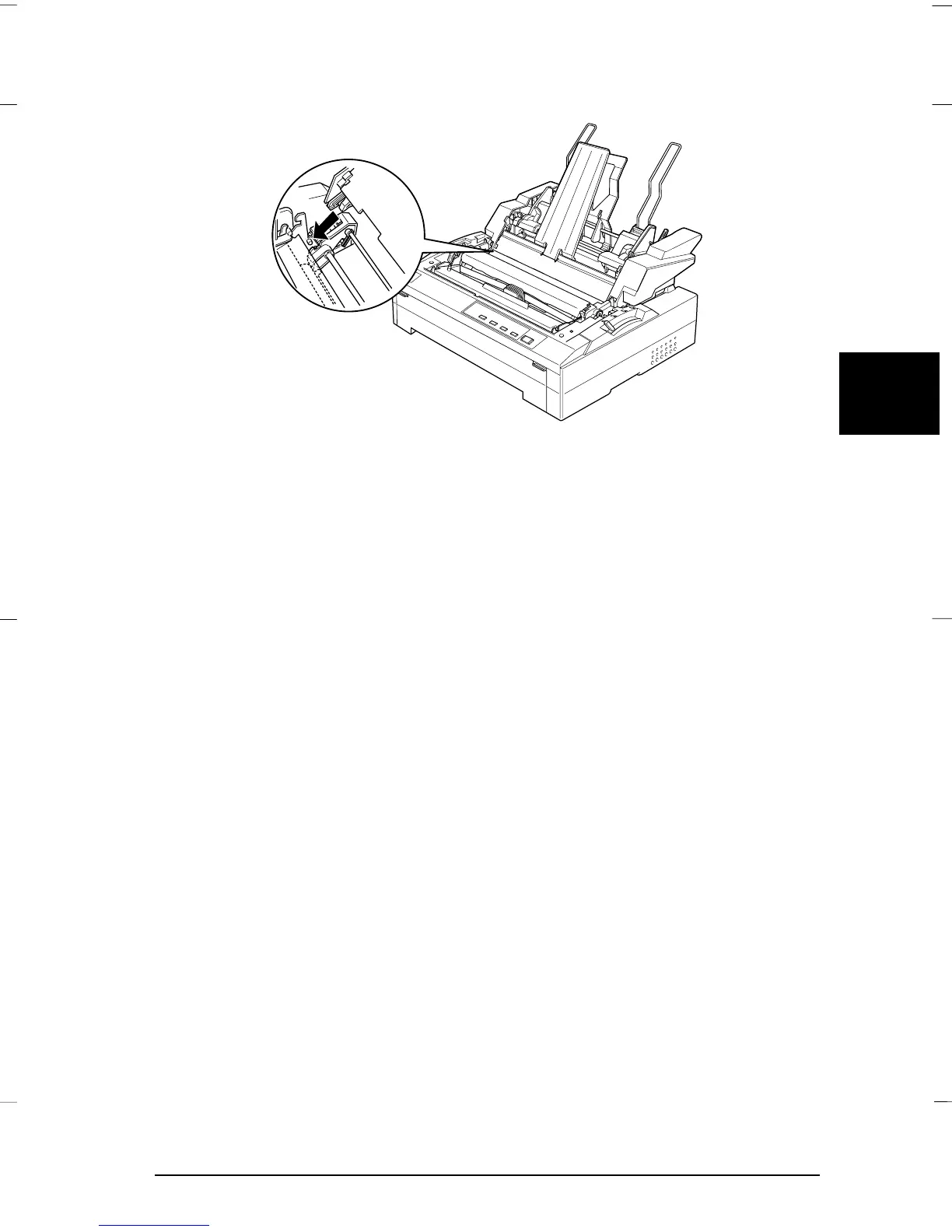

3. To replace the printer cover, first insert the front tabs into the
slots on the printer, then lower the cover into place.
If you installed the double-bin cut-sheet feeder, you need to
select your paper path (bin 1 or bin 2). See “Selecting your
paper path (bin 1 or bin 2)” on page 4-16.
You are now ready to load paper with your single-bin,
high-capacity, or double-bin cut-sheet feeder.
Loading paper in the single-bin cut-sheet feeder
The single-bin cut-sheet feeder holds up to 50 sheets of paper.
When the single-bin cut-sheet feeder is installed, you can still
use the paper guide to load single sheets and envelopes one at
a time.
c
Caution:
Do not load multi-part forms, carbon paper, envelopes, or labels
in the single-bin cut-sheet feeder.
G4-6-2
4
Gentian Rev.c
A5 size Chapter 4
97/06/20 pass 0
Printing on Single Sheets
4-7
