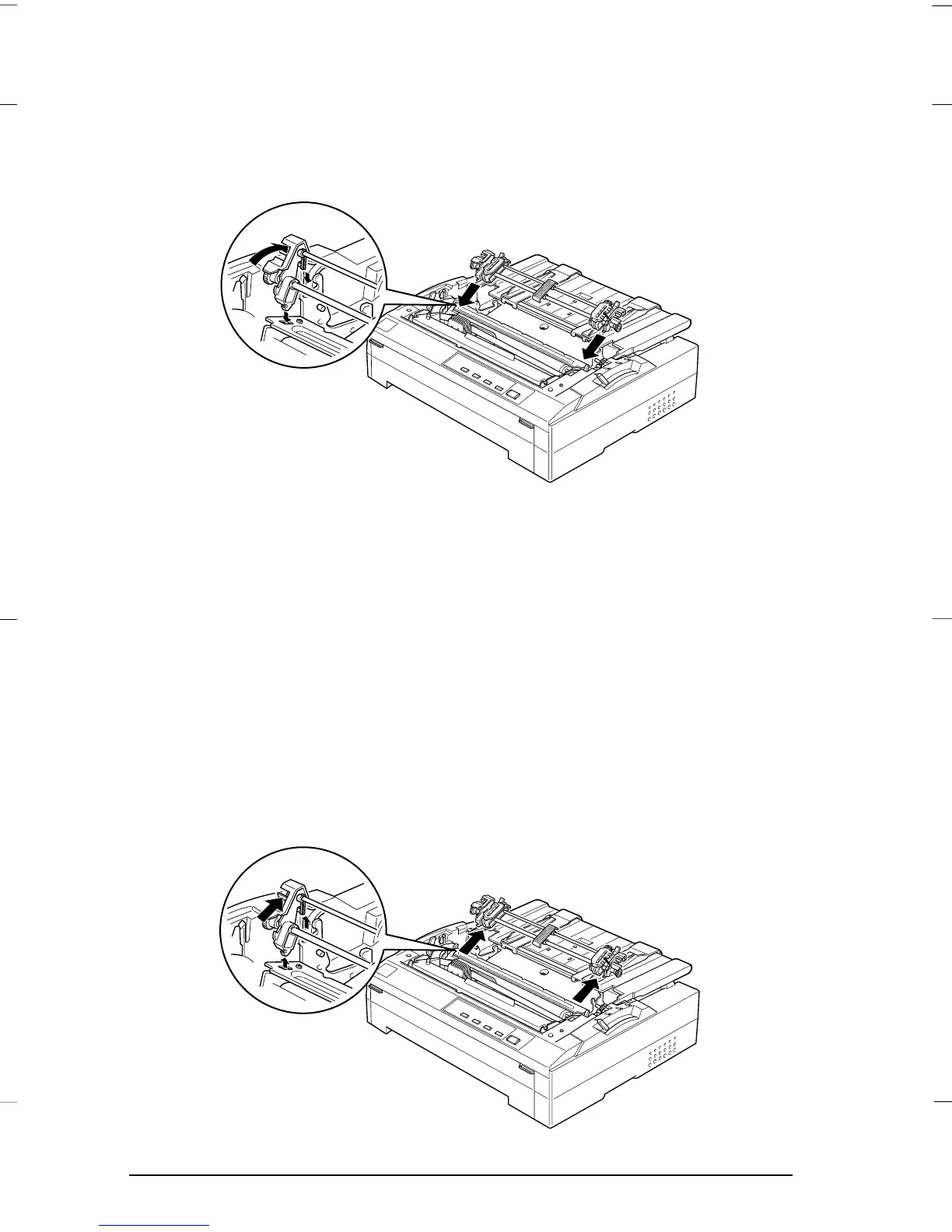

3. Lower the tractor into the printer’s mounting slots and press
down both ends of the tractor to make sure that it is firmly
seated.
See page 3-21 for instructions on loading continuous paper
with the pull tractor.
Removing the tractor from the pull position
1. Make sure that the printer is off and continuous paper is not
loaded on the pull tractor. Lift the printer cover by its back
edge and then pull it straight up and off the printer.
2. To remove the tractor from the pull position, press the tractor’s
lock tabs, tilt the unit toward you, and lift it off the printer.
G3-20
G3-17-3
L
Gentian Rev.c
A5 size Chapter 3
97/07/04 pass 2
3-20
Printing on Continuous Paper
