Maintenance Maintenance 98

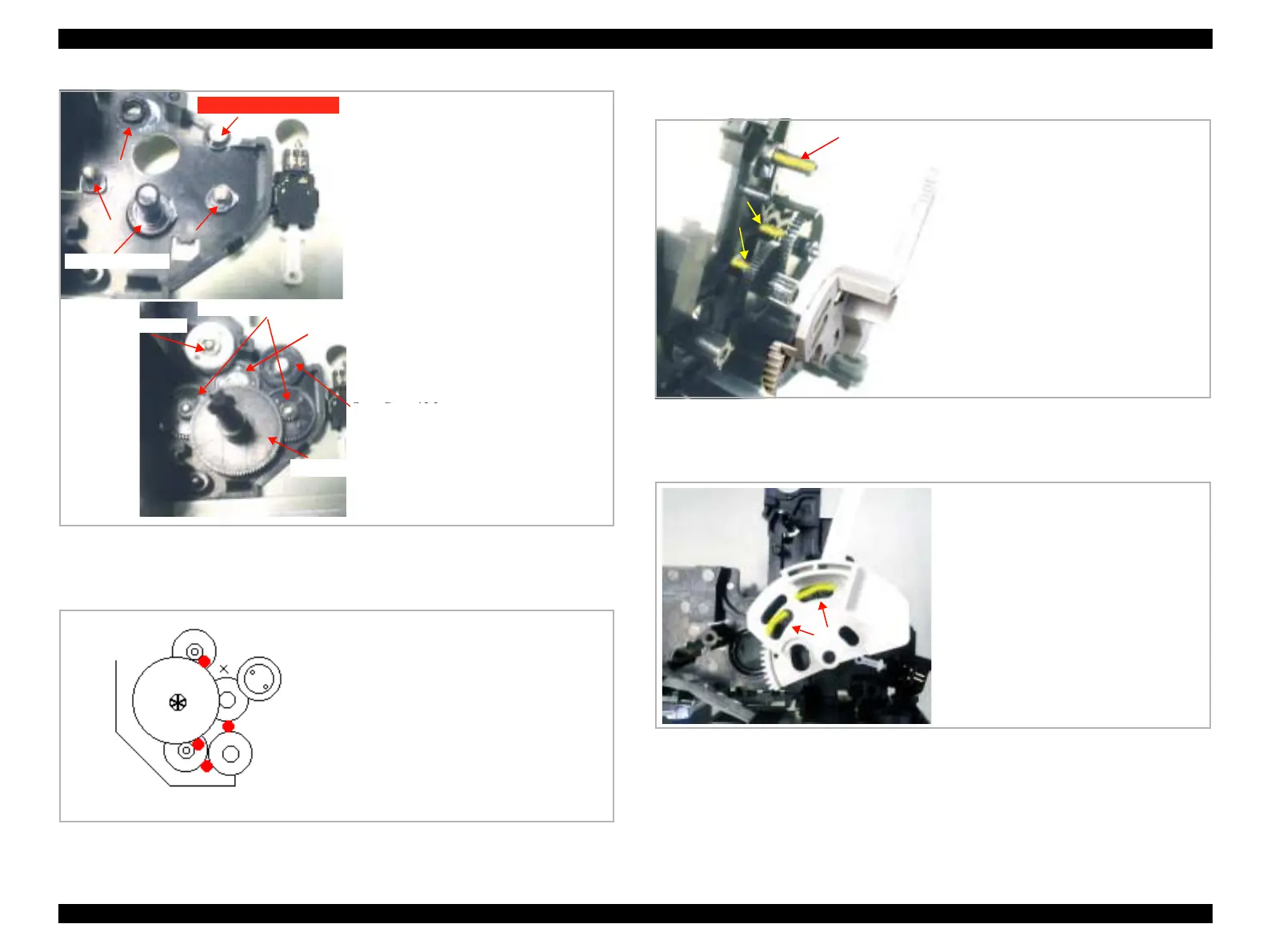

Figure 6-1. Left Frame Assembly
Figure 6-2. Teeth of Gears at the Left Frame
Figure 6-3. Shafts at the Right Frame Assembly
Figure 6-4. Release Lever
Lubricate G-26 on the 3 shafts and 1 boss
of the left frame.
G-26, 1/2 grain of rice
Lubricate G-26 on the shaft of the RD
ratchet.
G-26, 1 grain of rice
Planetary lever assy.
Combination Gear 5.1, 16.2
Spur Gear, 13.2
RD ratchet
Driven pulley assy.
Lubrication Points
Spur Gear, 13.2
RD ratchet shaft
Lubricate G-26 on teeth of gears.
G-26, 1/2 grain of rice
Lubricate G-26 at 3 places on 3 shafts at
the right frame.
Shafts at the right frame assembly:
G-26, 1 grain of rice
Lubricate G-26 at 2 places on inside of cam
at slope surface of the release lever.
Release lever:
G-26, 1 grain of rice
To Next Page
