LX-300+/1170 Revision C
Disassembly and Assembly Disassembly and Assembly 87
4.2.7.11 Paper Feed Mechanism Disassembly
1. Remove the printer mechanism. (See 4.2.3 "Printer Mechanism Removal".)
2. Remove the PF motor assembly. (See 4.2.7.10 "PF Motor Assembly Removal".)
3. Remove the release lever.

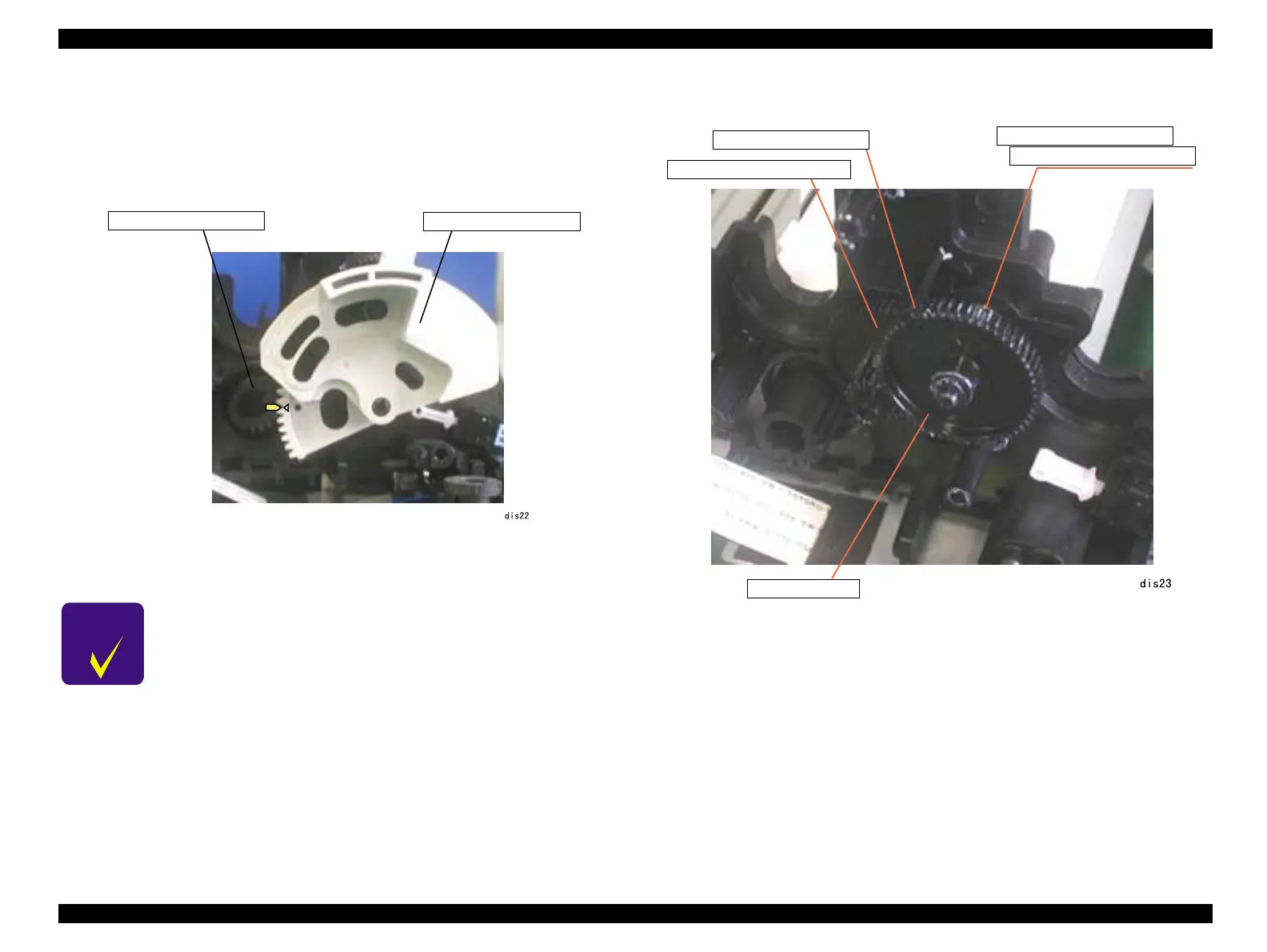

Figure4-23. Release Lever Removal
4. Release the hook of the right frame securing the gear, 27.5 and remove the gear, plain
washer 5.2x0.3x10 and the compression spring, 1.18.
5. Remove the combination gear, 8.5, 25.2 from the right frame.
Figure4-24. Paper Feed Mechanism Disassembly
C H E C K
P O I N T
When installing the release lever, be sure to align the marking on the
release lever with the marking on the release shaft.
Release shaft
Release lever
Hook at the right frame
Combination gear, 8.5, 25.2
Combination spring, 1.18
Plainwasher,5.2x0.3x10
Gear, 27.5
