Epson LX-300+ Service Manual

LX-300+/1170 Revision C
PRODUCT DESCRIPTION
S
PECIFICATIONS 18
1.2.9 Printable Area
o Cut sheets

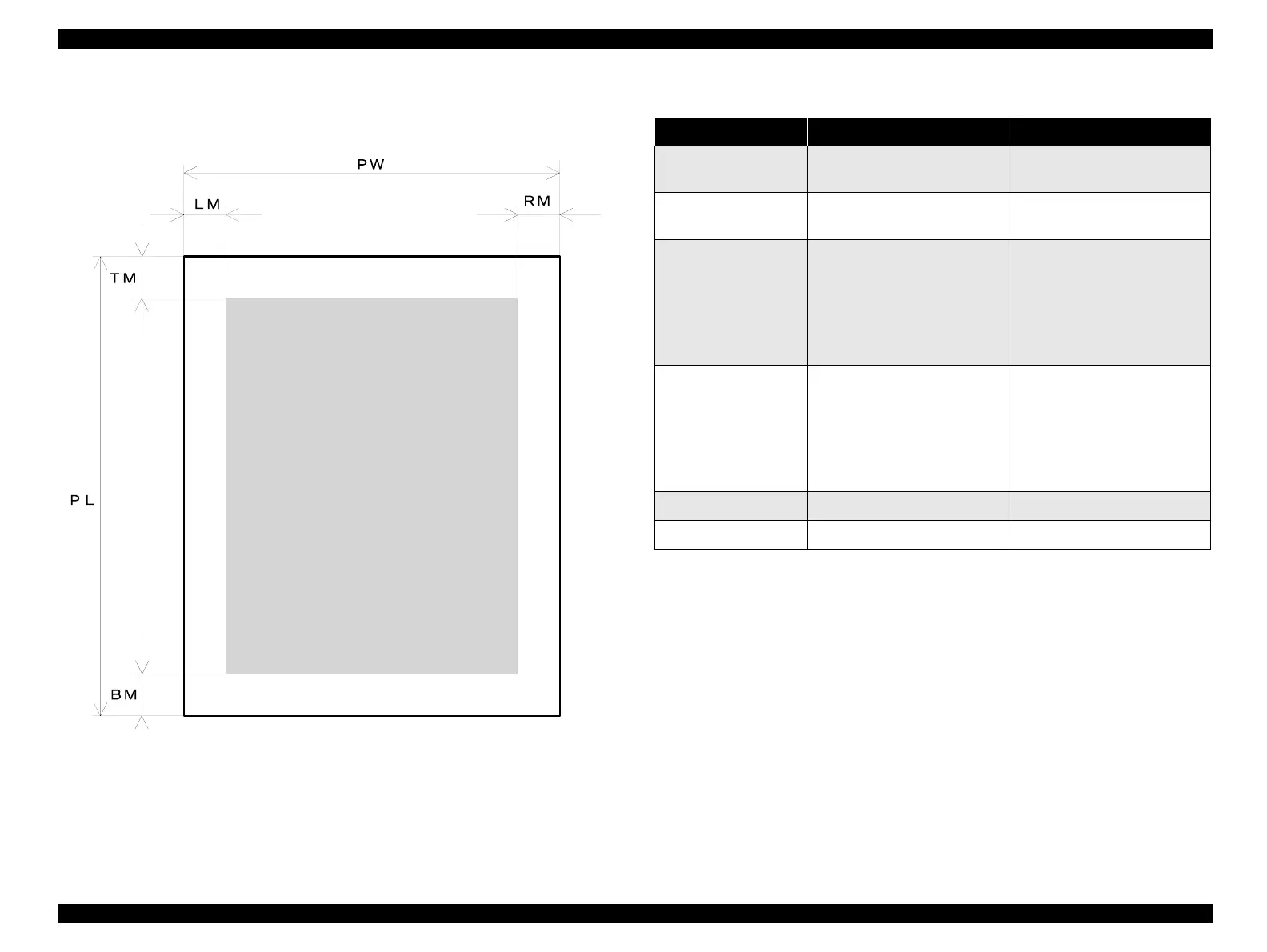

Figure 1-2. Printable Area for Cut Sheet
P r i n t a b l e A r e a
Table 1-6. Printable Area for Cut Sheet
Single Sheet Multi Part
PW (Width) Refer to 1.7 "Paper
Specifications"
Refer to 1.7 "Paper
Specifications"
PL (Length) Refer to 1.7 "Paper
Specifications"
Refer to 1.7 "Paper
Specifications"
LM (Left Margin) LX-300+:
3 mm or more (PW<=229 mm)
24mm or more(PW=257 mm)
LX-1170:
3 mm or more (PW<=364 mm)
29mm or more(PW=420 mm)
LX-300+:
3mmormore(PW<=229mm)
24mm or more(PW=257 mm)
LX-1170:
3mmormore(PW<=364mm)
29mm or more(PW=420 mm)
RM (Right Margin) LX-300+:
3 mm or more (PW<=229 mm)
24mm or more(PW=257 mm)
LX-1170:
3 mm or more (PW<=364 mm)
29mm or more(PW=420 mm)
LX-300+:
3mmormore(PW<=229mm)
24mm or more(PW=257 mm)
LX-1170:
3mmormore(PW<=364mm)
29mm or more(PW=420 mm)
TM (Top Margin) 4.2 mm or more 4.2 mm or more
BM (Bottom Margin) 4.2 mm or more 4.2 mm or more
NOTE: The maximum horizontal printable area is 203.2mm for LX-300+/
345.44 for LX-1170.

Epson LX-300+ Specifications

General

Emulation	Epson ESC/P, IBM PPDS
Print Method	9-pin, impact dot matrix
Interface	Parallel
Paper Handling	Friction feed
Dimensions	366 x 275 x 159 mm
Paper Width	4 - 10 inches
