SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 133
Confidential

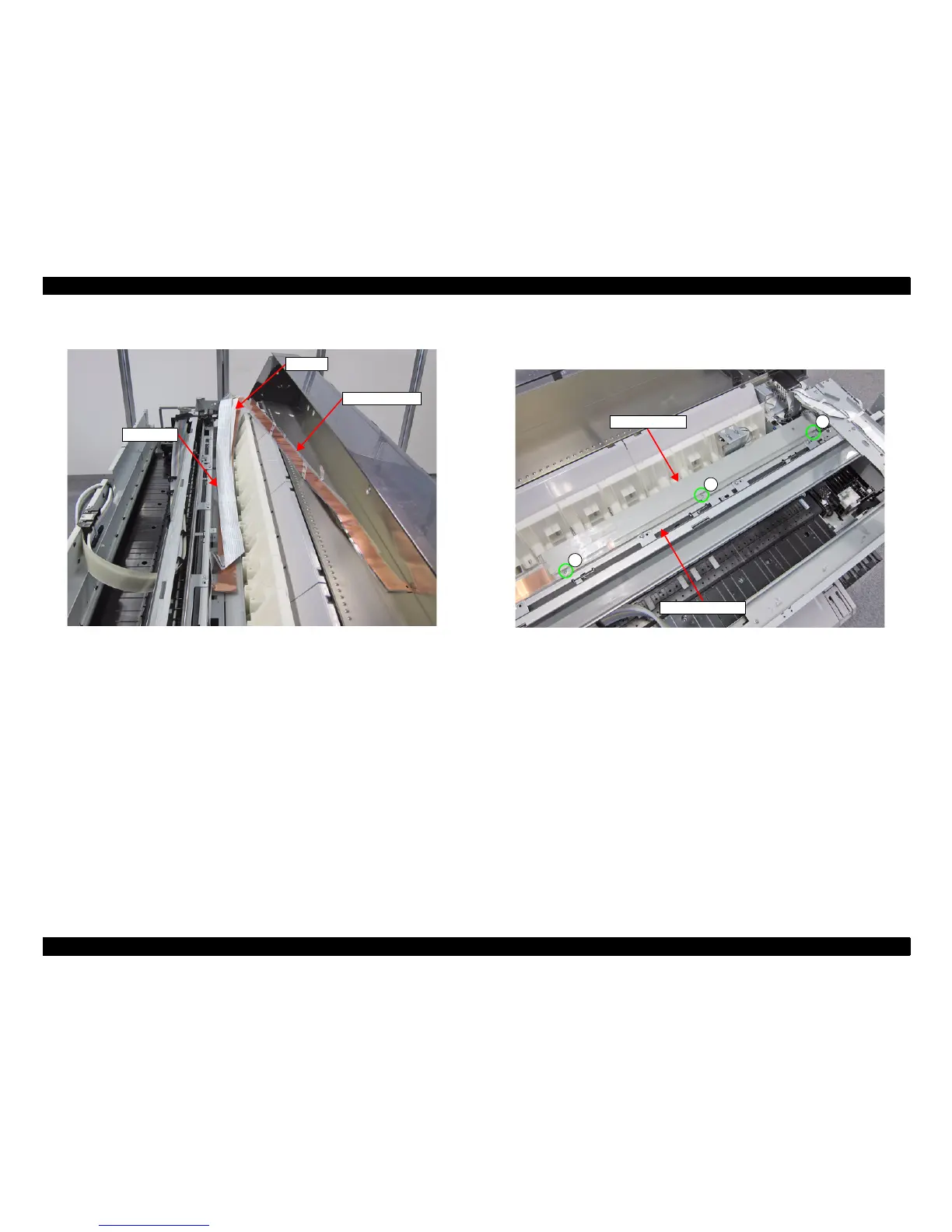

20. Remove the FFC Sheet Guide.
Figure 3-71. Removing the FFC Sheet Guide
21. Remove the three screws, and remove the FFC Guide Assy.
B) Silver M3x6 S-tite screw with built-in washer: 3 pcs
Figure 3-72. Removing the CR FFC (Top of the Rear Main Frame)
FFC Sheet Guide
CR FFC
HEAD FFC
FFC Guide Assy
B
B
B
Rear Main Frame
To Next Page
