SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
APPENDIX Connection Diagram 300
Confidential

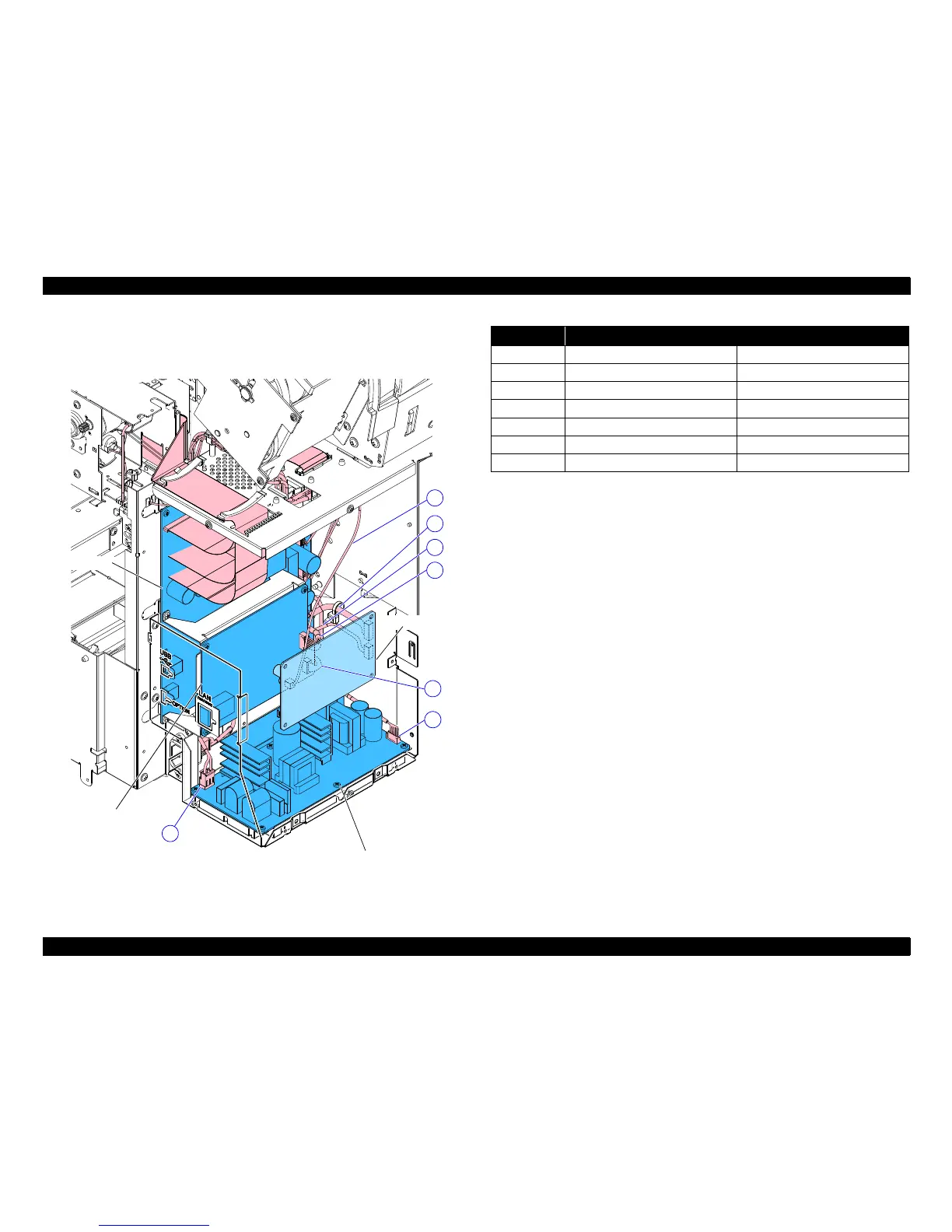

 Back view (Right rear) (3)
PSH BOARD
MAIN-B BOARD
MAIN-C BOARD
MAIN BOARD
1
4
3
2
6
7
5
Cable No. Connection
1 PANEL BOARD MAIN-C BOARD (CN4)
2 MAIN-B BOARD MAIN BOARD (CN200)
3 MAIN-B BOARD MAIN BOARD (CN8)
4 MAIN-C BOARD MAIN BOARD (CN500)
5 MAIN-C BOARD MAIN BOARD (CN5)
6 PSH BOARD MAIN BOARD (CN1)
7 PSH BOARD AC Inlet
To Next Page
