Rev. A Disassembly, Assembly, and Adjustment 5-3
TM-U200 Series (Type A/AM) Technical Manual
Confidential

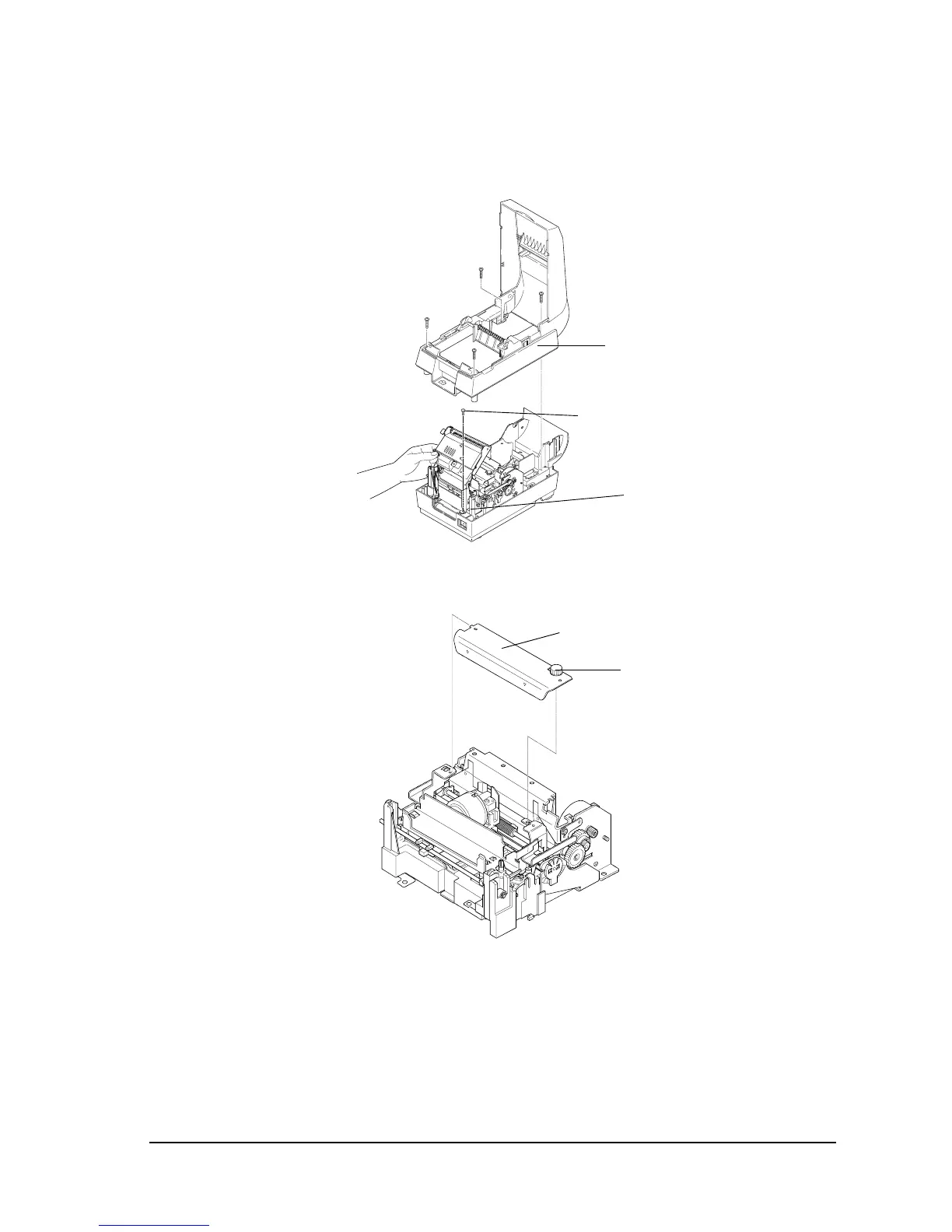

3. Remove the right side screw securing the auto-cutter fixing plate.
4. Loosen the thumb-screw and remove the head cover.
Upper case
Auto-cutter
fixing plate
screw
Thumb-screw
Head cover
