5-4 Disassembly, Assembly, and Adjustment Rev. A
Confidential

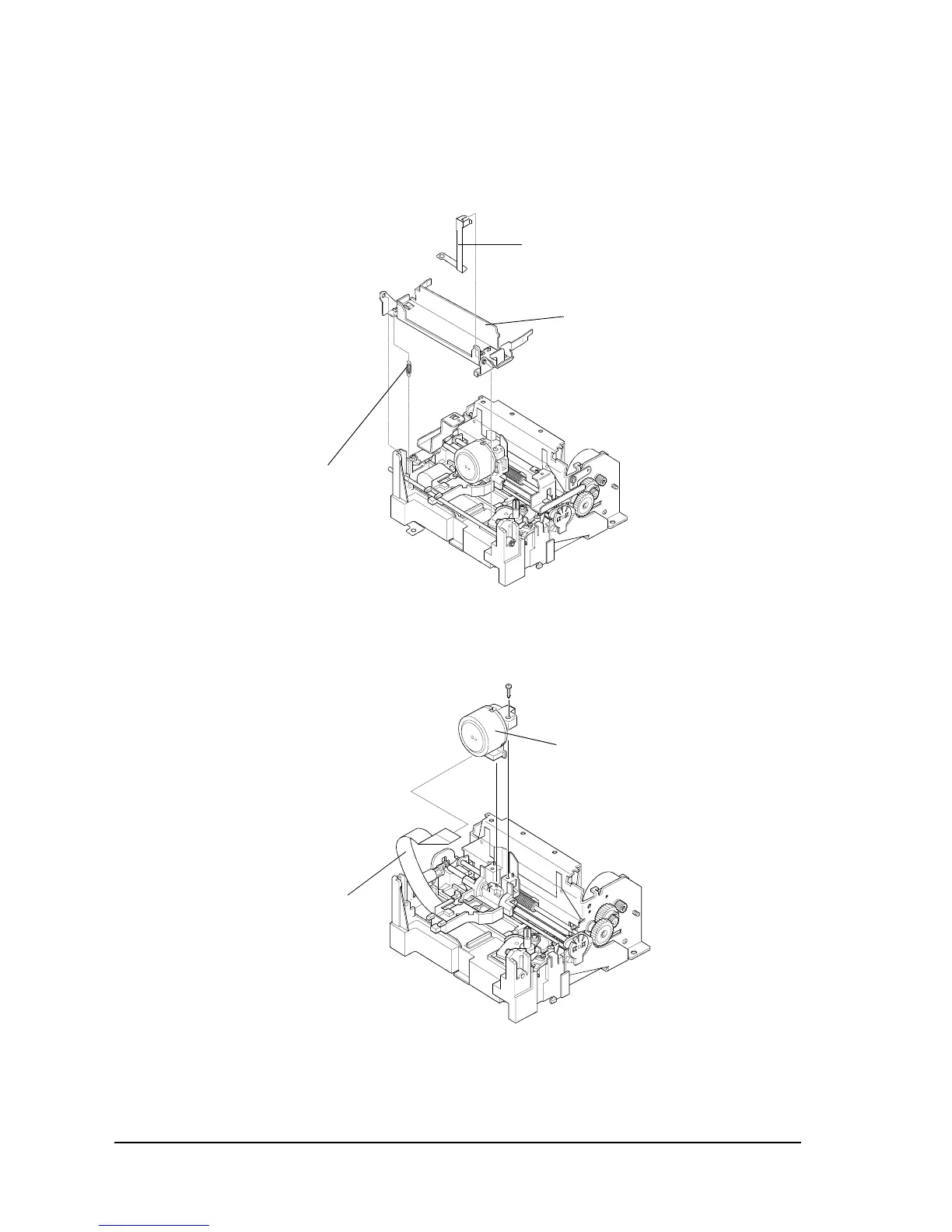

5. Remove the ribbon frame spring and ribbon frame fixing plate; then remove the ribbon
frame assembly.
6. Remove the screw securing the print head unit.
7. Disconnect the print head FPC and remove the print head unit.
Refer to the corresponding assembly section(s) in this chapter for the assembly procedure.
Ribbon frame
fixing plate
Ribbon frame
assembly
Ribbon frame
spring
Print head unit
Print head FPC
To Next Page
