Epson TM-U200 Series Technical Manual

Rev. A Disassembly, Assembly, and Adjustment 5-41
TM-U200 Series (Type A/AM) Technical Manual
Confidential
2. Lubricate G-31 to the shaft of the paper take-up gear.
3. Push the paper take-up torque spring into the paper take-up gear part of shaft with revolve.
4. Lubricate G-31 to the paper take-up torque spring.
5. Set the paper take-up drive pulley to the hook of the paper take-up torque spring.
6. Set the take-up belt to the paper take-up drive pulley and set the lower case.
7. Insert the take-up gear shaft to the lower case.
8. Hook the take-up belt to the take-up transmission gear.
9. Lubricate G-36 to the take-up belt.
10. Lubricate G-31 to the lower case.

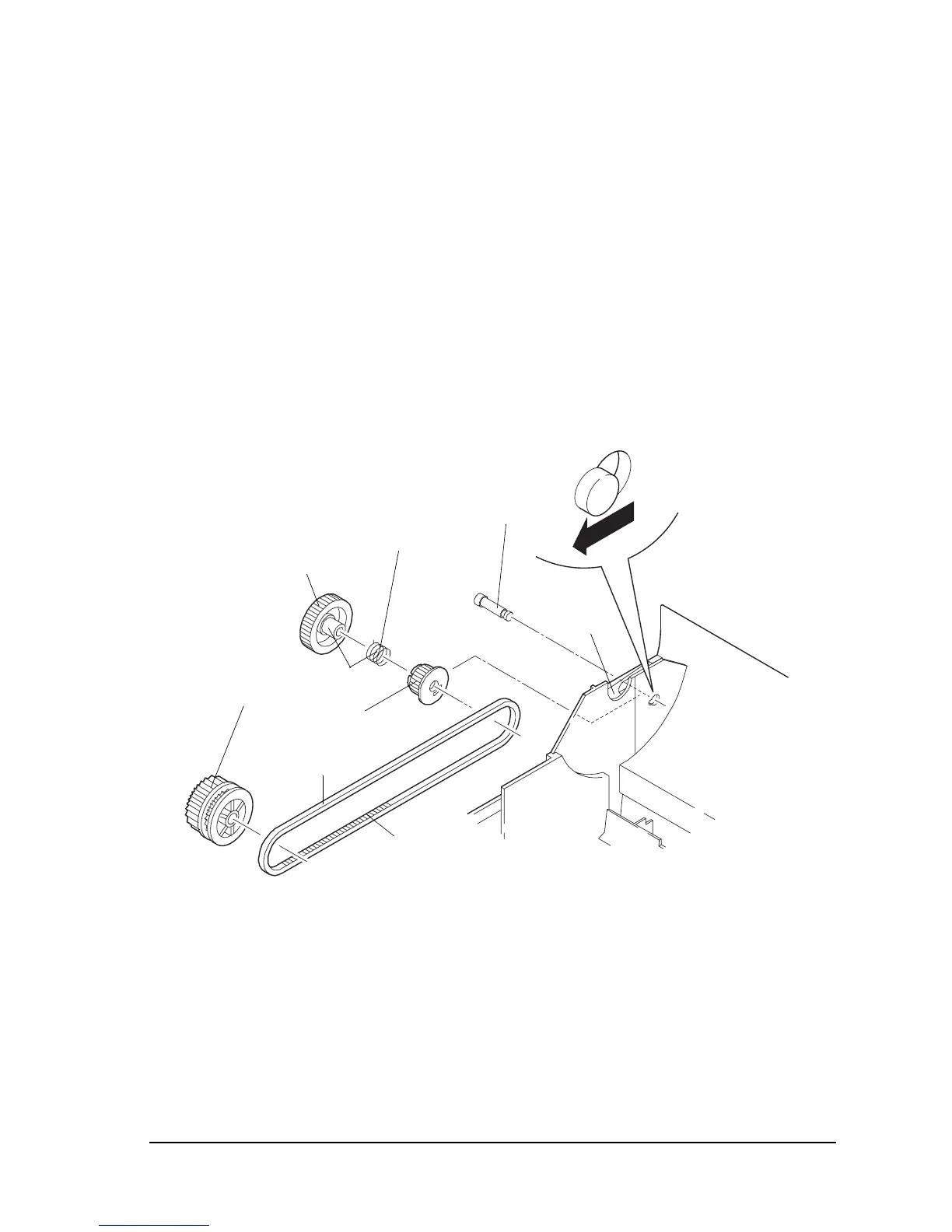

Apply G-31
Paper take-up gear
Paper take-up torque spring
Paper take-up drive pulley
Take-up gear shaft
Take-up belt
Apply G-31
Take-up transmission gear
Apply G-36
