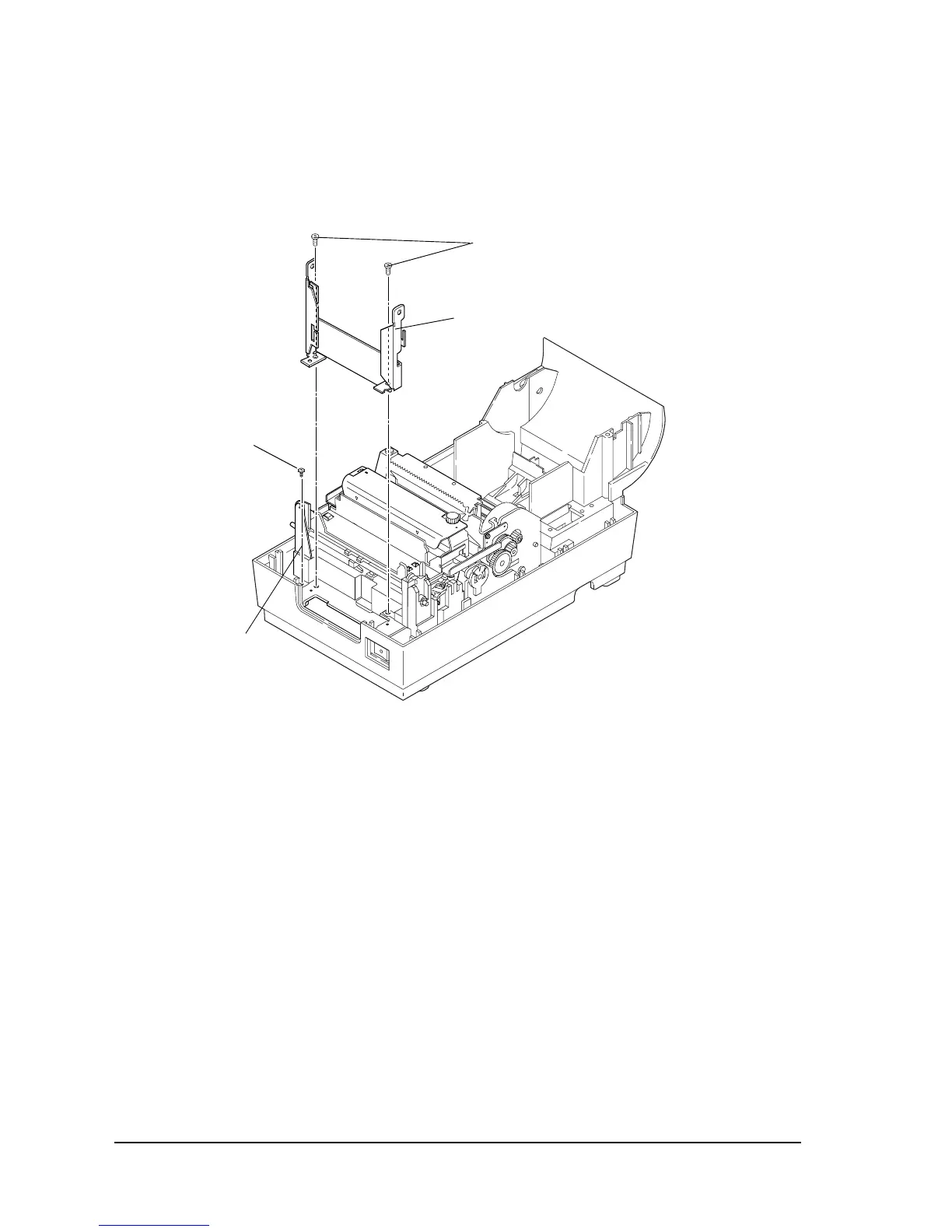

11. While aligning the dowels, install the auto-cutter fixing plate and secure it with the screw.
12. Secure the earth plate with the screw.
Auto-cutter
fixing plate
Earth plate
CBS-tite (M3x5)
[0.59 to 0.78 N • m
(6 to 8 kgf • cm)]
CP(O) (M3x6)
[0.59 to 0.78 N • m
(6 to 8 kgf • cm)]
