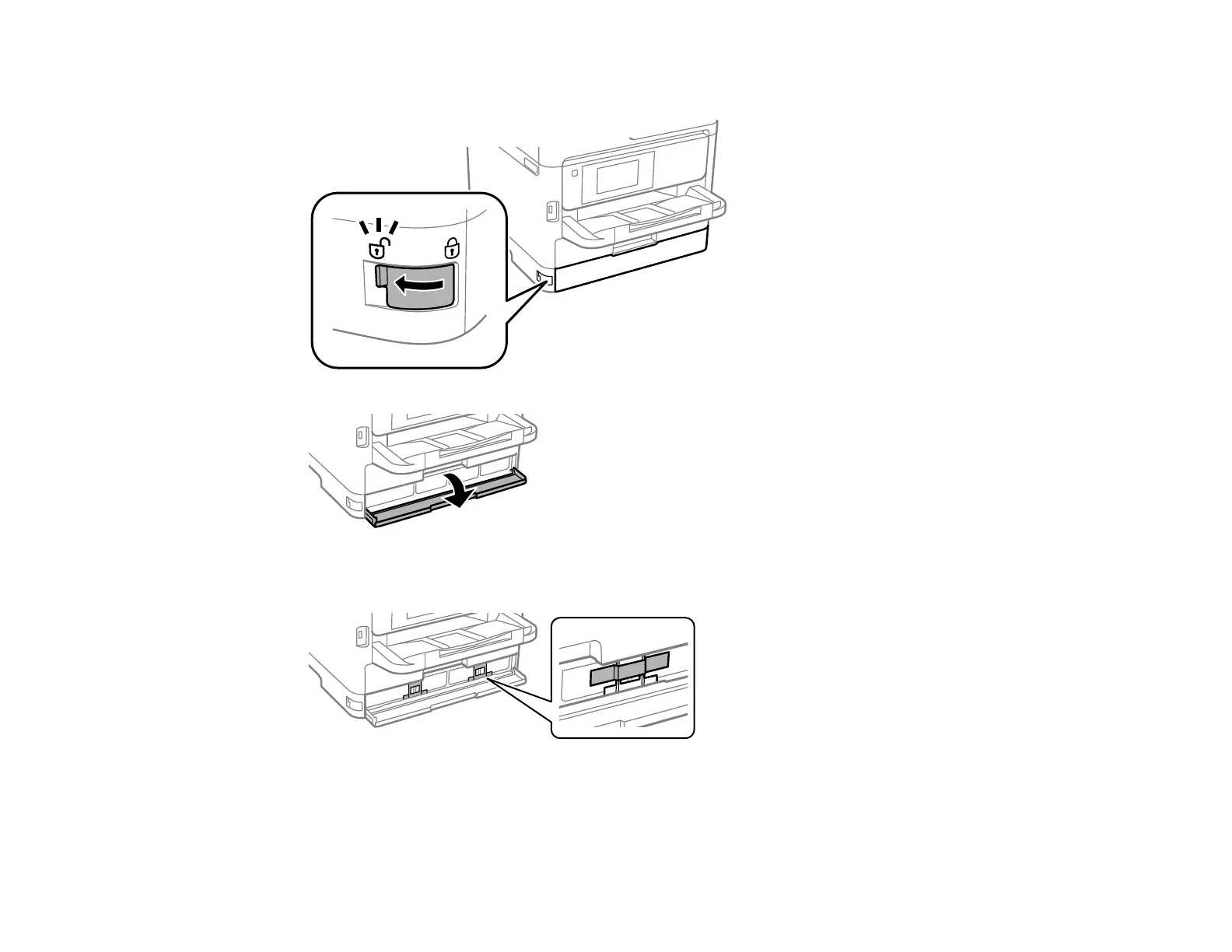

9. Unlock and open the front cover.

10. If you have the protective material that shipped with your product, use it to secure the ink pack trays.

11. When you are finished, close and lock the front cover.
