6 Edge guides

7 Paper cassette

Parent topic: Product Parts Locations

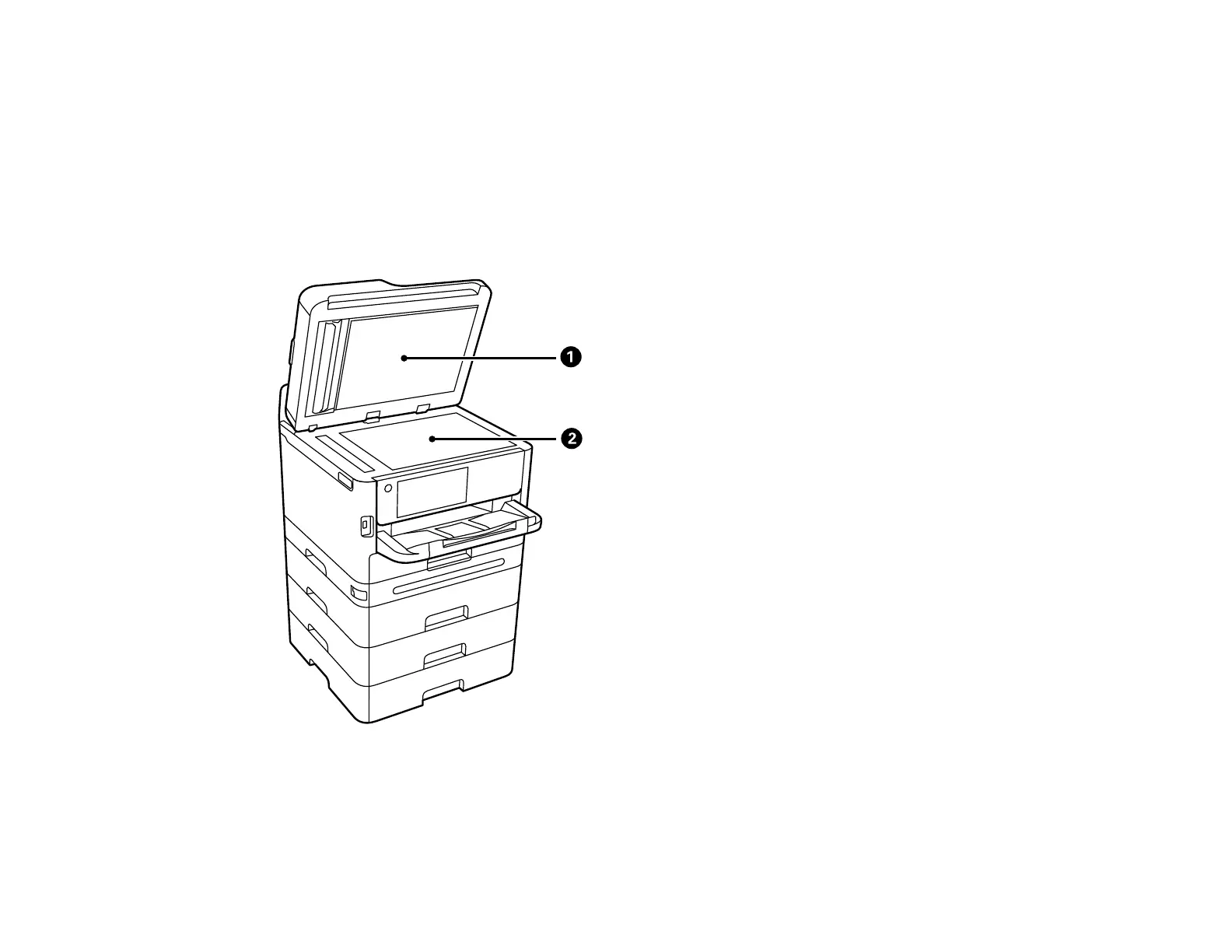

Product Parts - Inside

Certain parts are labeled with a letter and number code. If you encounter any paper jams or errors, use

these codes to locate and correct the problem.

1 Document cover
