Replacing Ink Cartridges

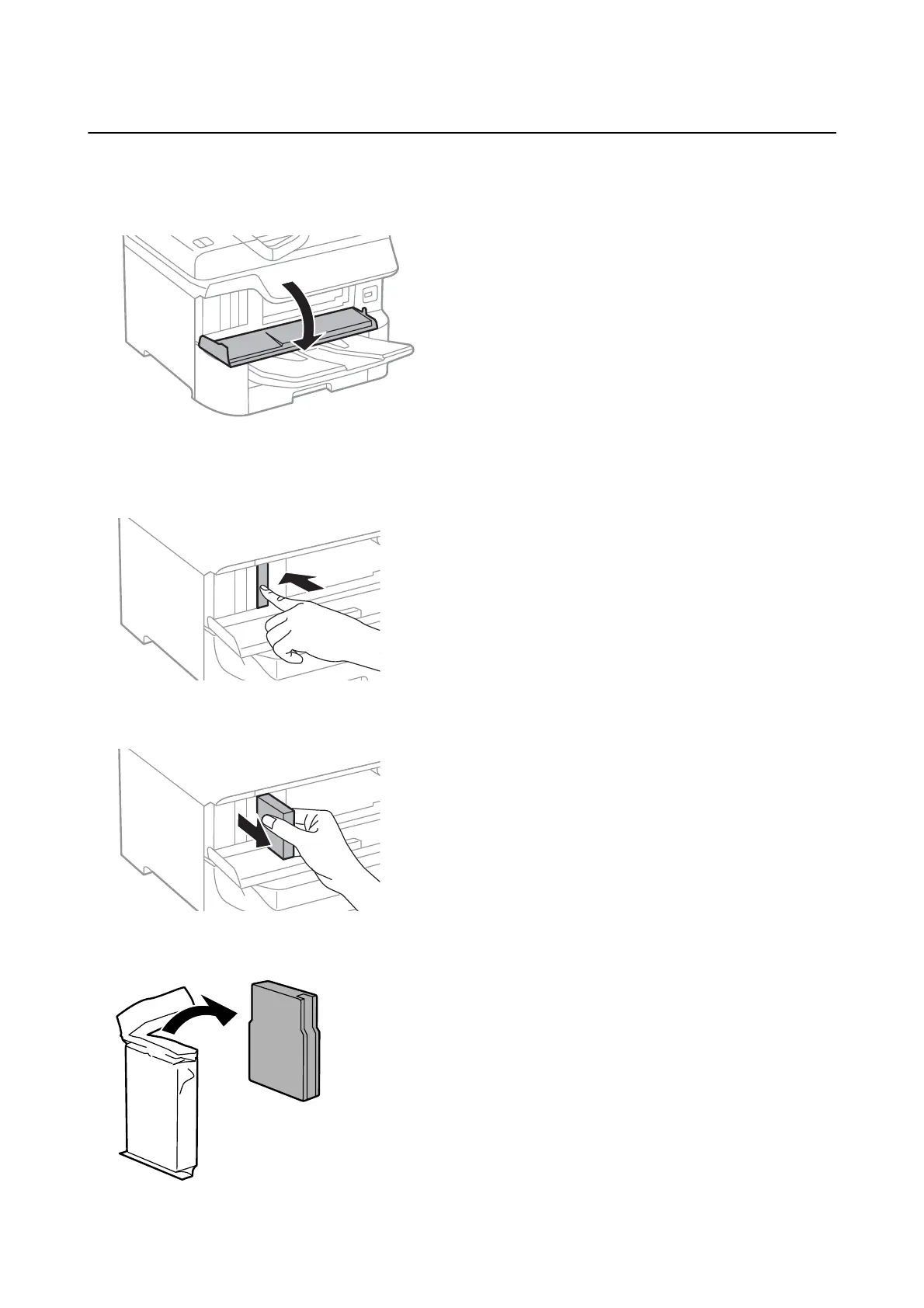

1. Open the front cover.

2. Push the ink cartridge that you want to replace.

e ink cartridge will pop out slightly.

3. Remove the ink cartridge from the printer.

4. Remove the new ink cartridge from its package.

User's Guide

Replacing Ink Cartridges and Other Consumables

157
