Epson Workforce Pro WF-C8610 Series - Placing Originals on the ADF

To Next Page

To Previous Page

Placing Originals on the ADF

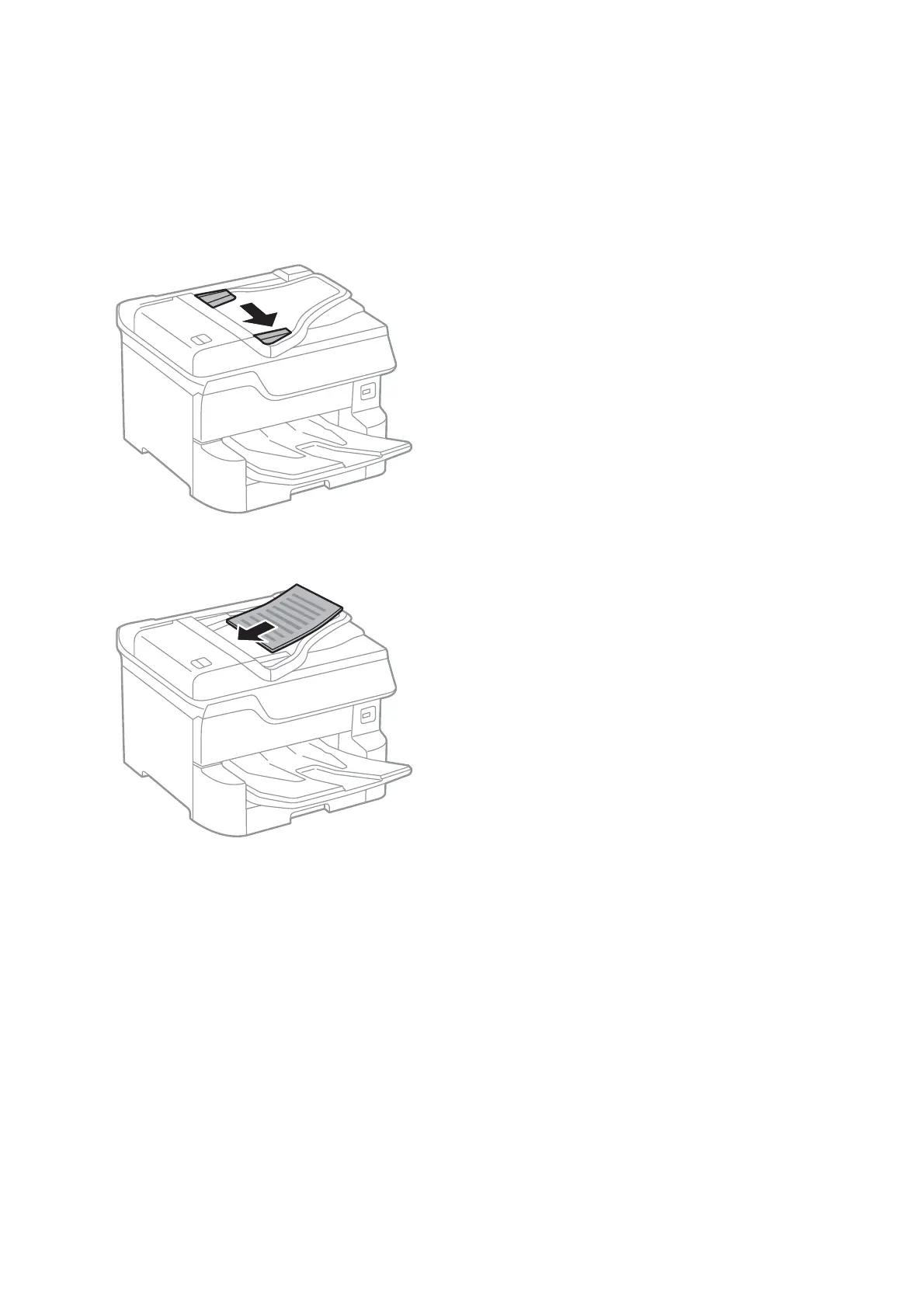

1. Align the edges of the originals.

2. Slide the ADF edge guides.

Place the originals in the center of the ADF, facing up.

User's Guide
