27
Actuation Configurations for ICC 350 • 8
11. Set ICC 350 for CUT and
COAG
CUT: Select effect and power limit in the AUTO CUT field for the
electrode handle at the CUT / COAG 2 socket. The ICC 350 can be set
either for ARGON CUT or for CUT. The APC handle's and the electrode
handle's cutting modes both reference the AUTO CUT field.
Every time you switch between ARGON CUT and CUT, the AUTO CUT
field must be reset, unless you want to use the same parameters.
COAG: Select coagulation mode and power limit in the AUTO COAG 2
field for the electrode handle at the CUT / COAG 2 socket. AUTO COAG
2 applies exclusively to the electrode handle's coagulation mode.
WARNING!

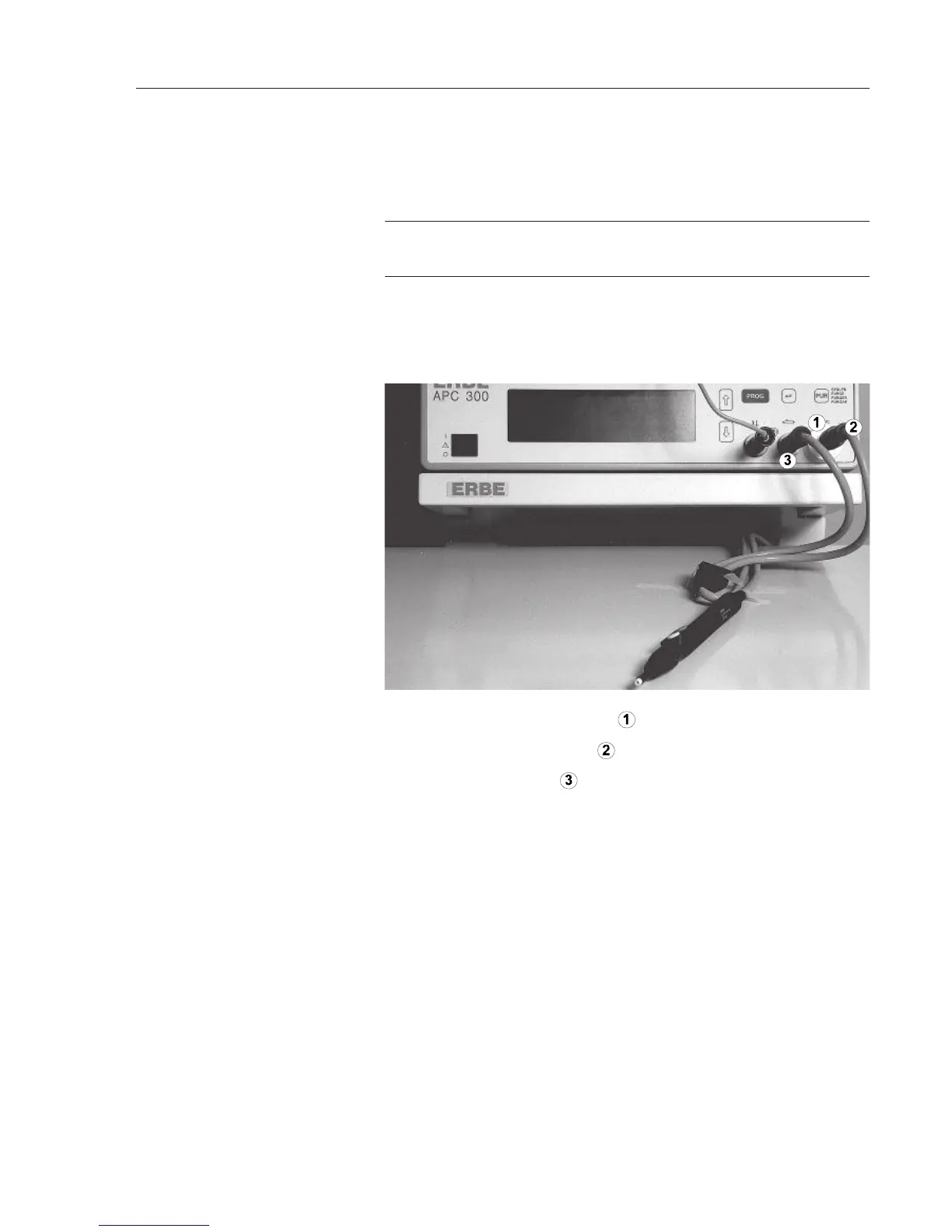

1. Screw the bacteriological filter to the argon socket.
2. Screw the argon connection
to the filter.
3. Plug the multiple plug
into the multiple socket of the APC 300.
Is the automatic setting of the COAG flow / CUT flow suitable for the
application?
Press P
UR key and rinse the applicator with argon.
Press the white pedal or the blue finger switch.
Press the yellow finger switch only.
AUTO START on contact, or with the blue foot switch if the P
EDAL key is
positioned to the AUTO BIPOLAR field.
Yellow finger switch or yellow pedal.
Blue finger switch, or blue pedal if the P
EDAL key is positioned to the AUTO
COAG 2 field.
13. Check flow
14. Rinse applicator
16. Actuate ARGON CUT
17. Actuate BIPOLAR COAG
18. Actuate CUT
12. Connect APC handle
15. Actuate APC
19. Actuate COAG
