Erbe VIO 3 - autoCUT Effect 10 Voltage Test

7 • Maintenance and servicing
74 / 84
80116-938_V24392  2023-03
Test procedure

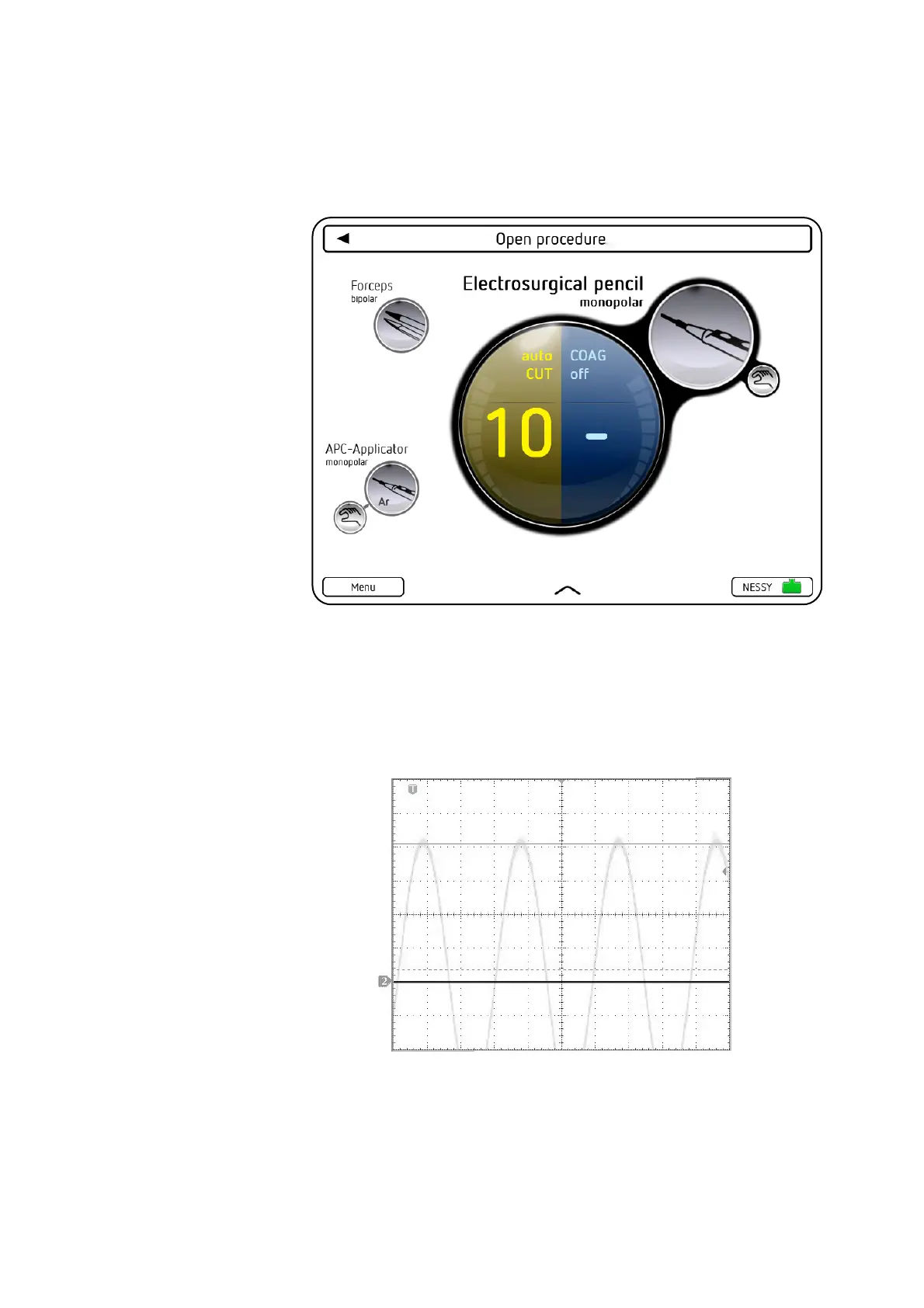

autoCUT, effect 10 1. Set the test specimen to:
Electrode handle, monopolar – autoCUT – Effect 10
2. Set HF power meter to:
RL = 5200 Ohm
3. Activate test specimen via CUT button on the electrode handle.
4. Set the zero line on the oscilloscope. To do so:
– Set the picture so that the positive half wave is clearly displayed.
– End the activation and determine the zero line with a cursor line
(the probe has an offset value, which can also be negative).
5. Use the CUT button of the electrode handle to activate the test speci-
men again.
6. On the oscilloscope, put the second cusor line in the peak of the posi-
tive half wave and determine the measure value for the peak voltage
from the delta.
7. Determine and document the measured value. The tolerance range is
600 to 750 V
p
.
