Erbe VIO 3 - Automatic Start Mode

7 • Maintenance and servicing
64 / 84
80116-938_V24392  2023-03
Automatic start mode
Test sockets
The following sockets are tested:
• MF
• MF-U
• BI
Testing and measuring equipment

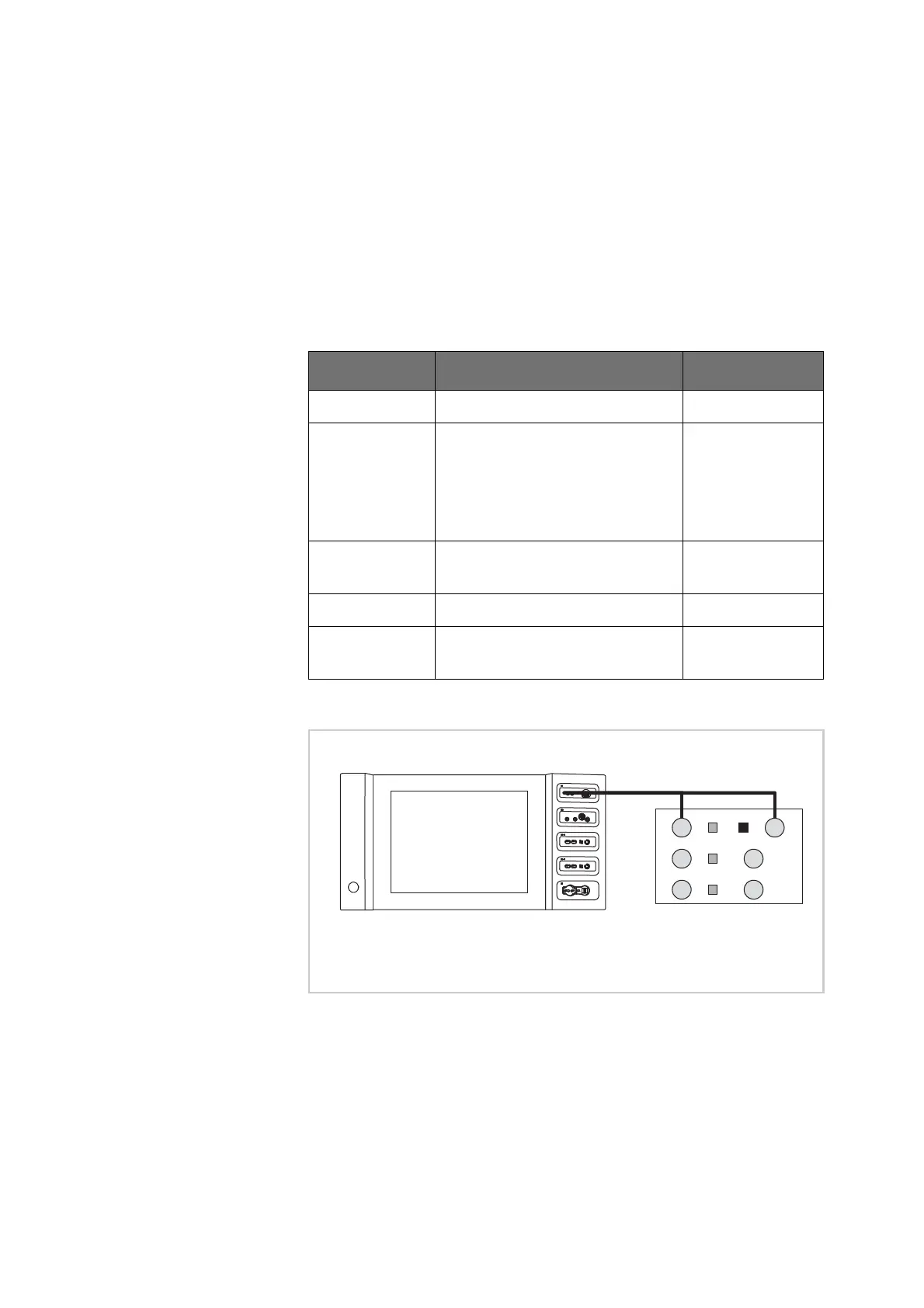

Test setup
Fig. 7-2
• The test specimen is connected to the power supply via the power
cord.
• For a BI socket/MF-U socket: The socket is connected to the VIO test
box using the bipolar adapter cable via one of the bipolar cables men-
tioned above.
• For an MF socket: The socket is connected to the VIO test box using the
BiClamp measuring cable.
Erbe Art. No. Description for
20100-152 BiClamp measuring cable MF socket
20196-045 Bipolar cable BI socket
or
20196-053 Bipolar cable, international
2Pin
22
20196-053 Bipolar cable, international
2Pin
22
MF-U socket
20100-034 Adapter cable bipolar –
20100-102 VIO Testbox Auto Start/Auto
Stop (bipolar start/stop)
–
Testbox 20100-102
2
X X
X X
1
BP1 BP2
S1 S2
