Erbe VIO 3 - Bipolar Output Power Verification; HF Output Power, CUT, Bipolar

7 • Maintenance and servicing
82 / 84
80116-938_V24392  2023-03
HF output power, CUT, bipolar
Testing and measuring equipment

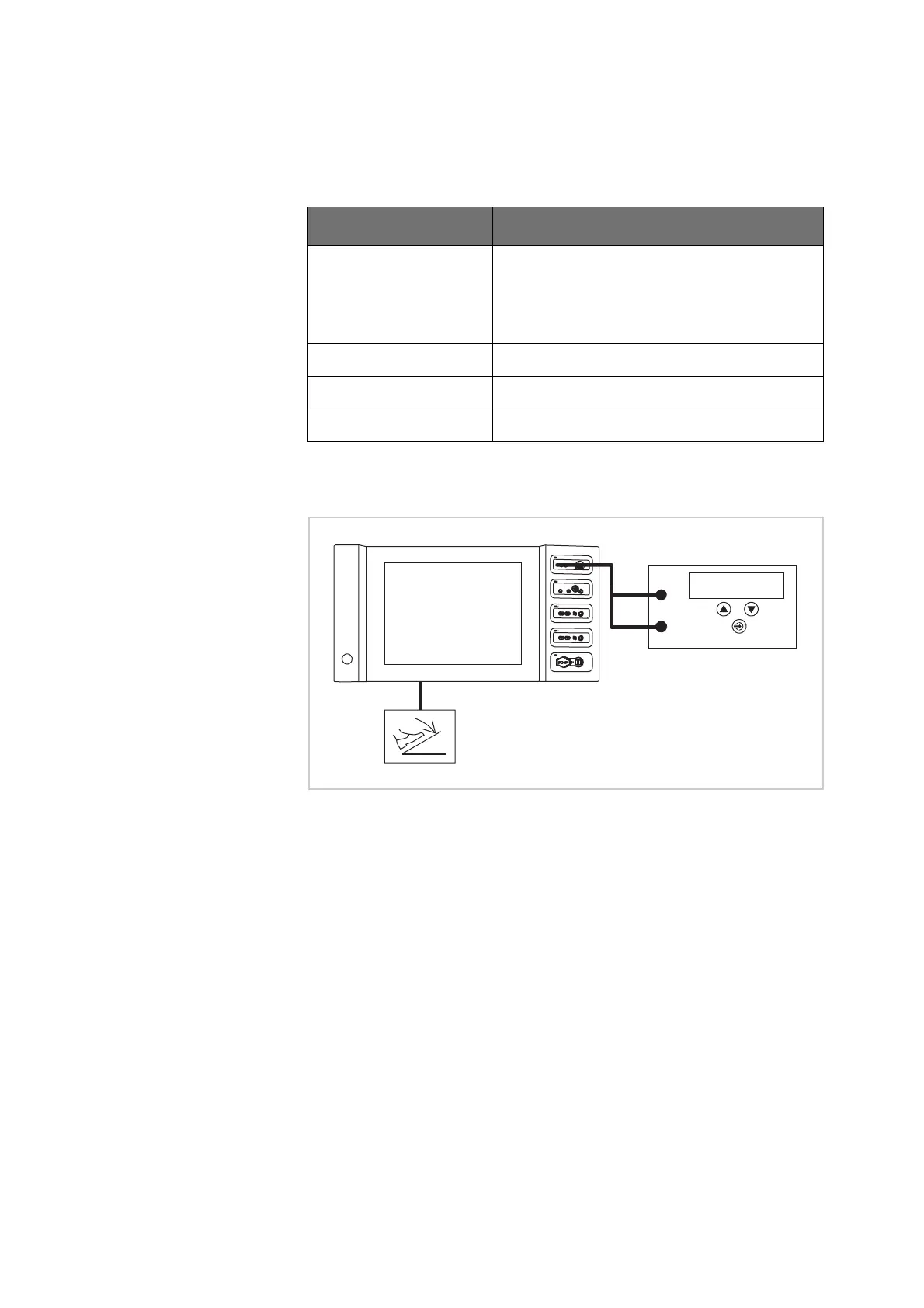

Test setup
Fig. 7-12
• The test specimen is connected to the power supply via the power
cord.
• The levels of power are determined with the HF power meter. The
measuring cables are plugged into the HF power meter direct.
• The dual-pedal footswitch with ReMode is connected.
Erbe Art. No. Description
20196-045 Bipolar cable
or
20196-053 Bipolar cable, international 2Pin 22
20100-034 Adapter cable bipolar
20189-350 Dual-pedal footswitch with ReMode
– HF power meter
HF power meter
Bipolar
