7 • Maintenance and servicing
80116-938_V24392
2023-03
Test procedure
autoCUT bipolar 1. Set the test specimen to:

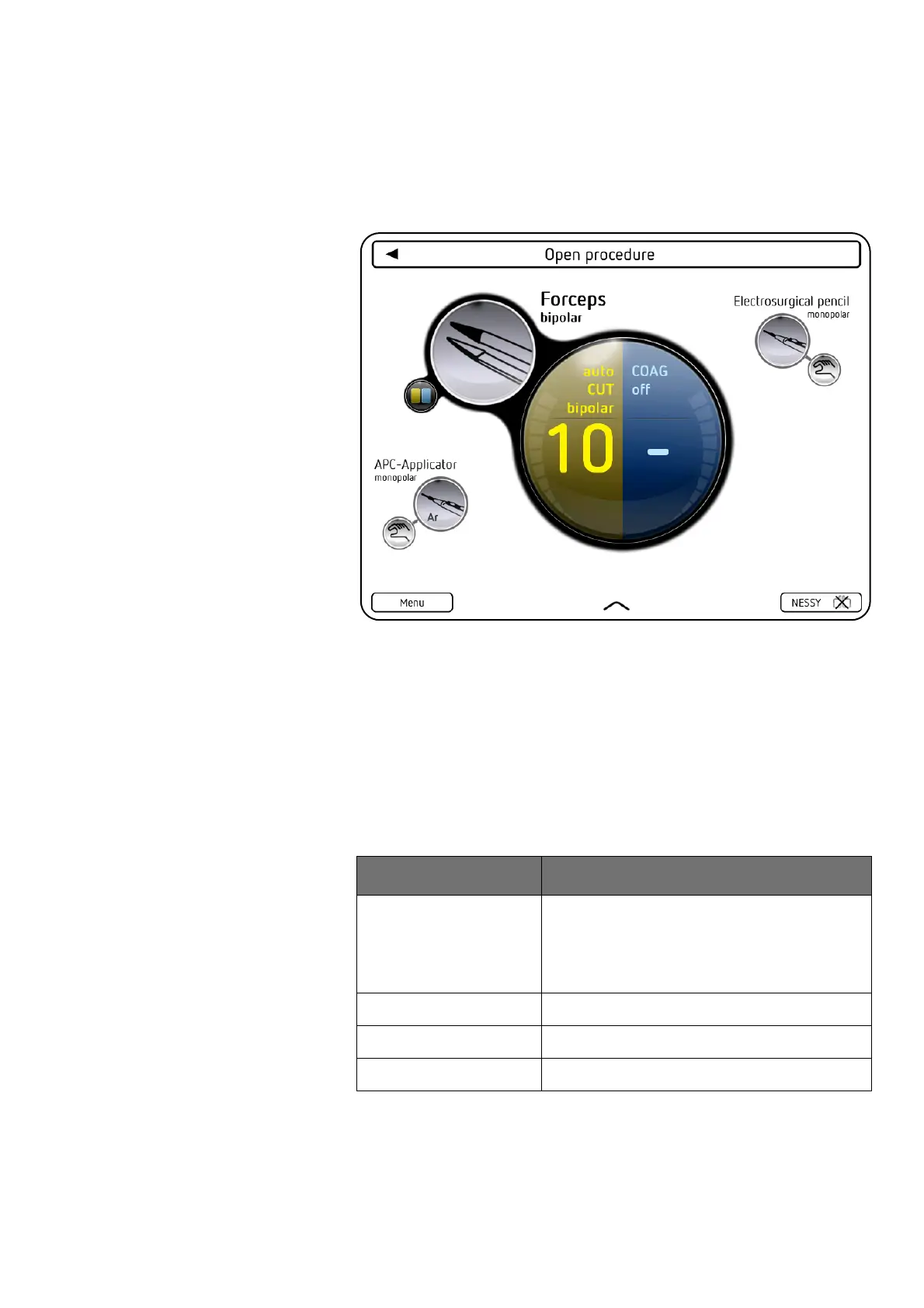

Forceps, bipolar – autoCUT, bipolar – Effect 10
2. Set HF power meter to:
RL = 300 Ohm
3. Activate test specimen via CUT pedal on the footswitch.
4. Determine and document the measured value. The tolerance range is
80 to 120 watts.
HF output power, COAG, bipolar
Testing and measuring equipment
Erbe Art. No. Description
20196-045 Bipolar cable
or
20196-053 Bipolar cable, international 2Pin 22
20100-034 Adapter cable bipolar
20189-350 Dual-pedal footswitch with ReMode
– HF power meter
