Erbe VIO 3 - HF Voltage and Power Output Tests; HF Peak Voltage (Sinusoidal Modes)

7 • Maintenance and servicing
72 / 84
80116-938_V24392  2023-03
Asymmetry < 50 %

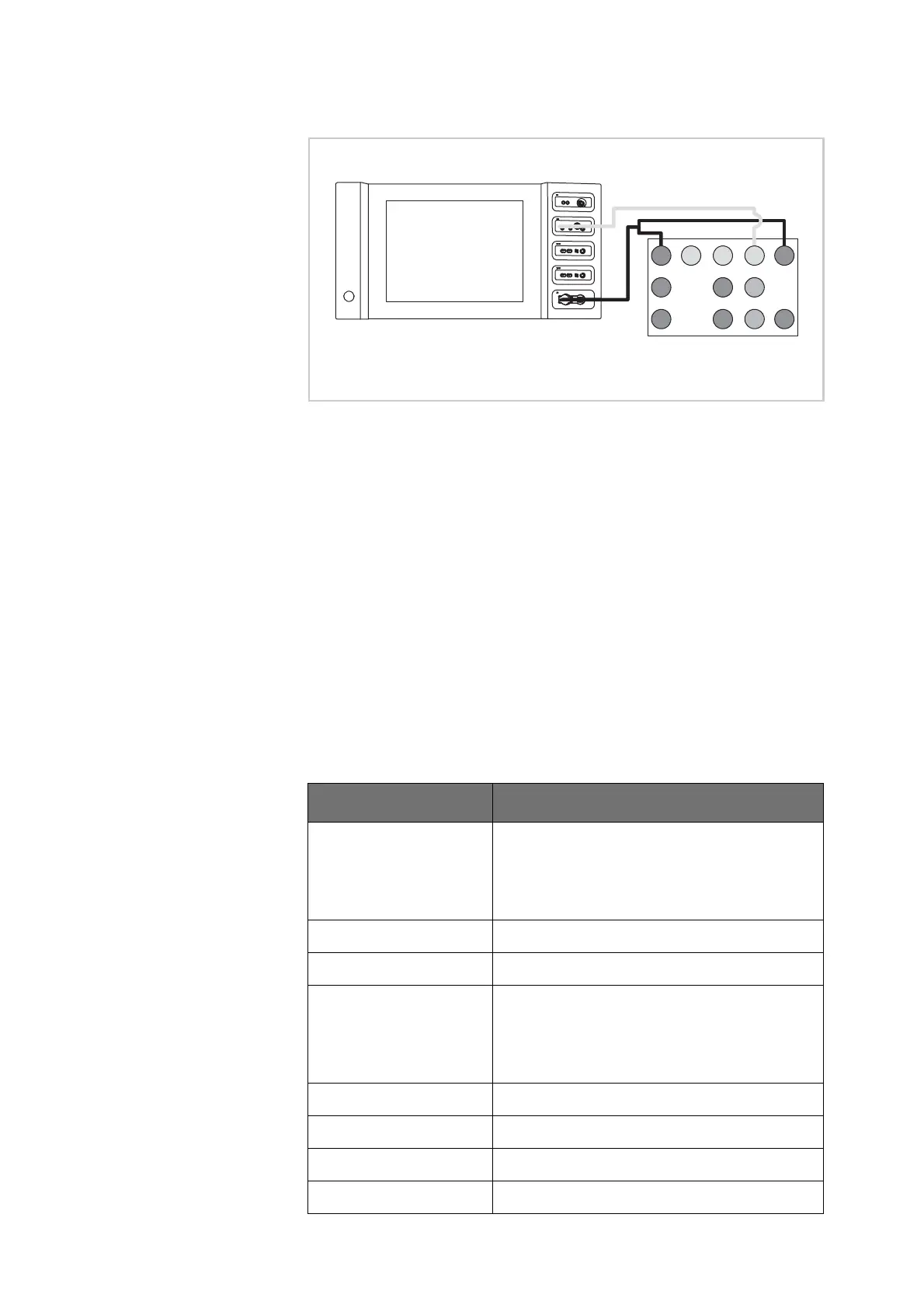

Fig. 7-7
• The test specimen is connected to the power supply via the power
cord.
• The NE socket of the test specimen is connected to the VIO Testbox via
the patient cable NE with the adapter cable.
• The AE socket of the test specimen is connected to the VIO test box via
the patient cable AE and the electrode handle with the laboratory
measuring cable.
1. Use the COAG button of the electrode handle to activate the test
specimen for approx. 10 seconds. An acoustic warning must be out-
put approx. 2 seconds after activation. The test specimen must inter-
rupt activation in this case.
HF peak voltage for sinusoidal modes
Testing and measuring equipment
Erbe Art. No. Description
20192-127 Patient cable AE
or
20192-110 Patient cable AE, international
20190-045 Electrode handle ICC/ACC
– Laboratory measuring cable
20194-070 Patient cable NE
or
20194-075 Patient cable NE, international
20100-033 Adapter cable NE
– HF power meter
– High Voltage Differential Probe
– Oscilloscope
Testbox 20100-101
1
2
9
4 5
3
10
6
11
12
7
8
AE
NE
