Erbe VIO 3 - HF Output Power, COAG, Monopolar

7 • Maintenance and servicing
80 / 84
80116-938_V24392  2023-03
4. Determine and document the measured value. The tolerance range is
288 to 400 watts.
5. Repeat test steps 1 to 4 with:
– autoCUT – Effect 1.3 – RL = 300 Ohm
Measurement tolerance range: 39 to 59 watts
– autoCUT – Effect 10 – RL = 1000 Ohm
Measurement tolerance range: 133 to 199 watts
– autoCUT – Effect 5 – RL = 1000 Ohm
Measurement tolerance range: 55 to 82 watts
– dryCUT (From V 1.1.x miC OFF) – Effect 10 – RL = 300 Ohm
Measurement tolerance range: 160 to 240 watts

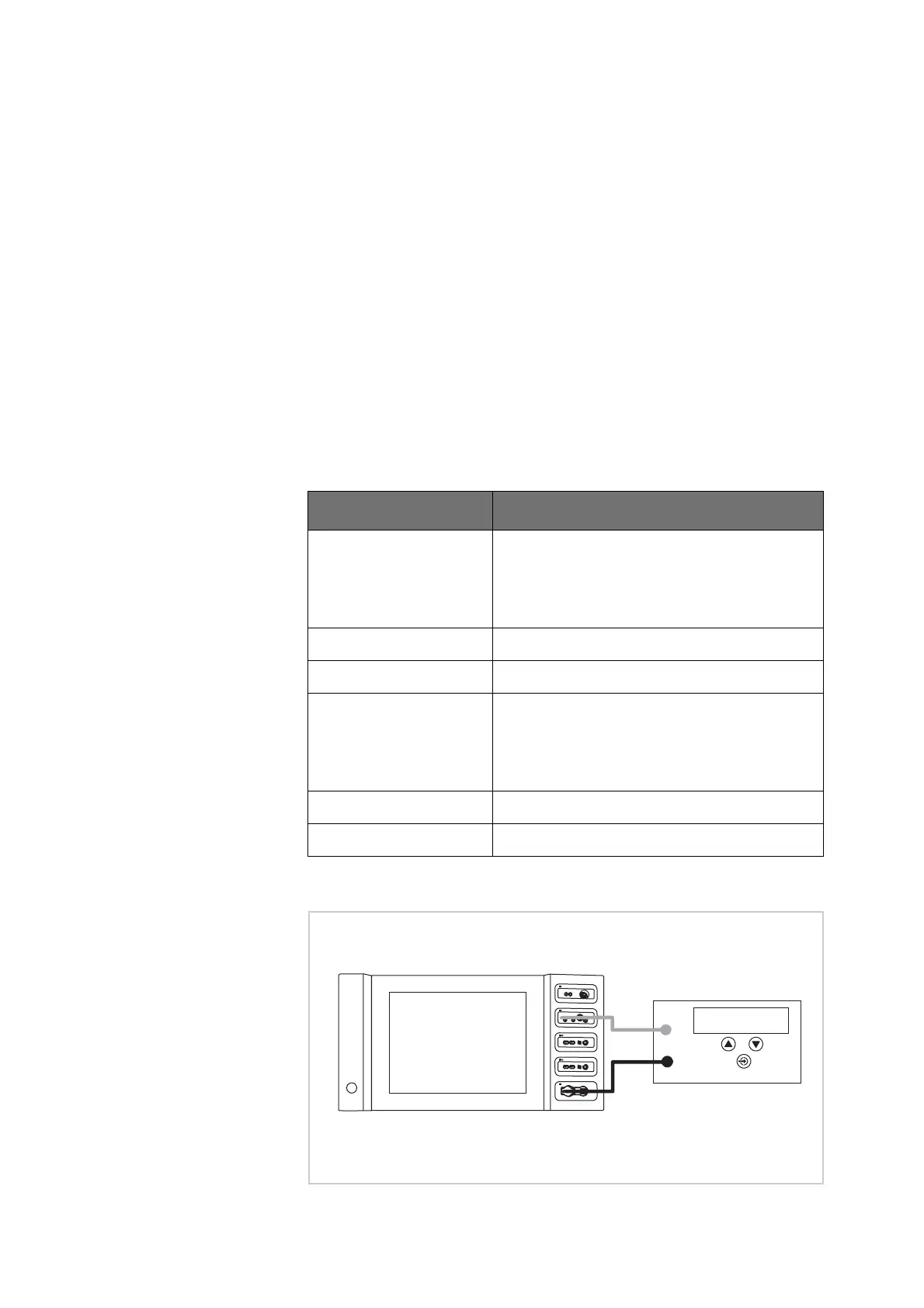

HF output power, COAG, monopolar
Testing and measuring equipment
Test setup
Fig. 7-11
Erbe Art. No. Description
20192-127 Patient cable AE
or
20192-110 Patient cable AE, international
20190-045 Electrode handle ICC/ACC
– Laboratory measuring cable
20194-070 Patient cable NE
or
20194-075 Patient cable NE, international
20100-033 Adapter cable NE
– HF power meter
HF power meter
AE
NE
