7 • Maintenance and servicing
80116-938_V24392
2023-03

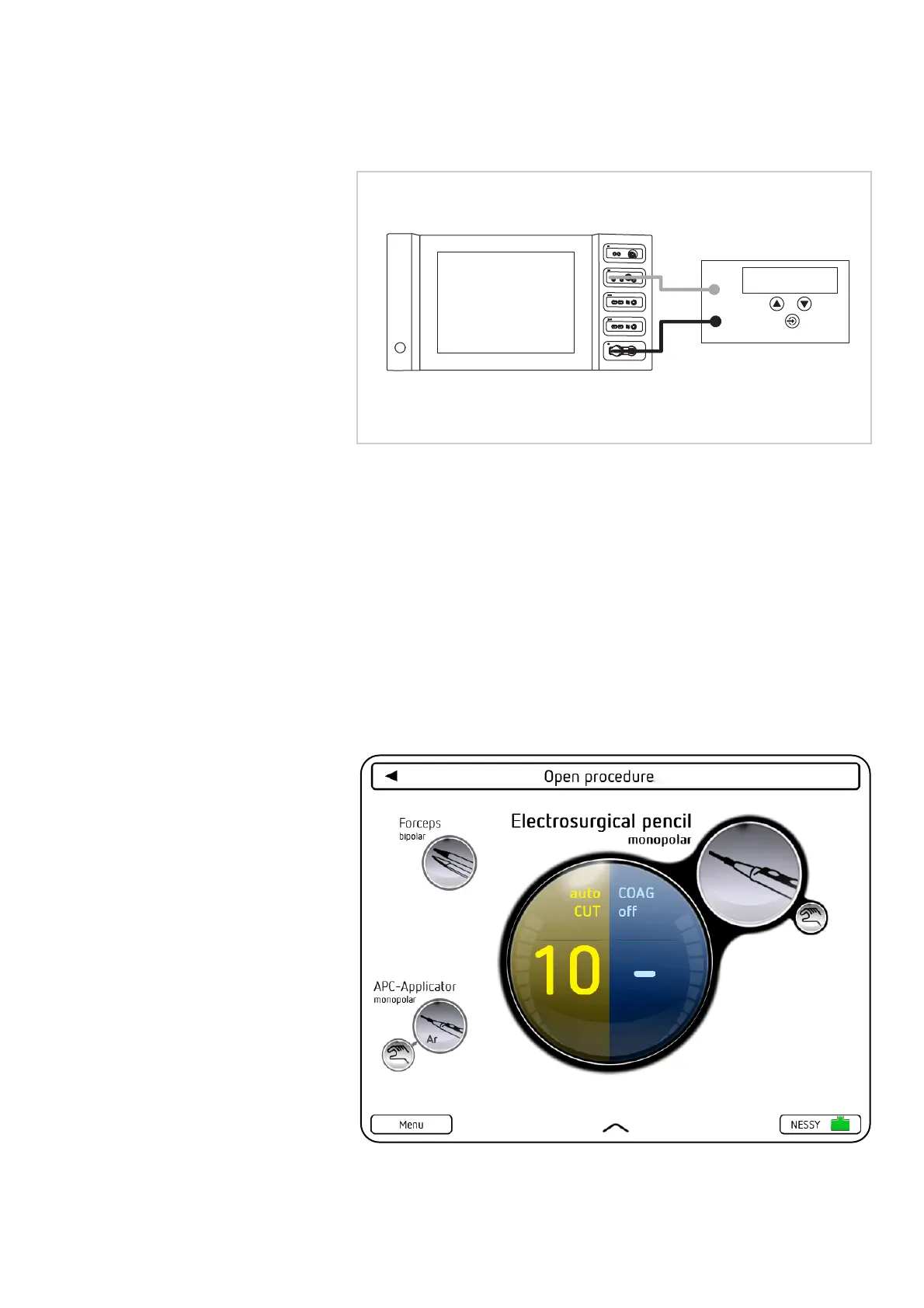

Test setup
Fig. 7-10
• The test specimen is connected to the power supply via the power
cord.
• The levels of power are determined with the HF power meter. The
measuring cables are plugged into the HF power meter direct.
Test procedure
autoCUT
dryCUT
IMPORTANT! From V 1.1.x: For this test, the dryCUT’s "Moderate Initial
CUT" function must be set to OFF (dryCUT, effect window, miC OFF).
1. Set the test specimen to:
Electrode handle, monopolar – autoCUT – Effect 10
2. Set HF power meter to:
RL = 300 Ohm
3. Activate test specimen via CUT button on the electrode handle.
