81 / 84
7 • Maintenance and servicing
80116-938_V24392
2023-03
• The test specimen is connected to the power supply via the power
cord.
• The levels of power are determined with the HF power meter. The
measuring cables are plugged into the HF power meter direct.
Test procedure
swiftCOAG
softCOAG
forcedCOAG
sprayCOAG

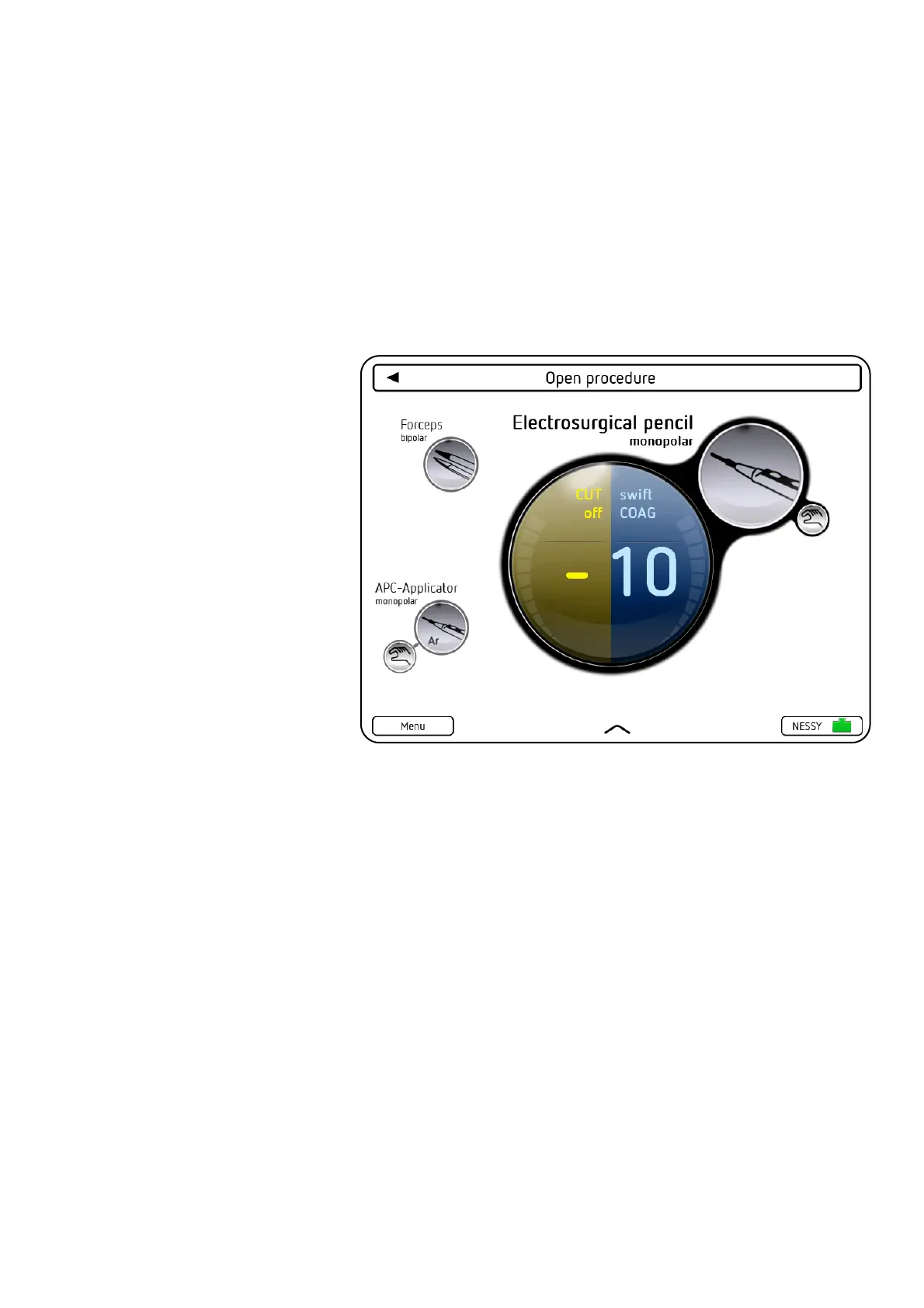

1. Set the test specimen to:
Electrode handle, monopolar – swiftCOAG – Effect 10
2. Set HF power meter to:
RL = 200 ohms
3. Use the COAG button of the electrode handle to activate the test
specimen.
4. Determine and document the measured value. The tolerance range is
160 to 240 watts.
5. Repeat test steps 1 to 4 with:
– swiftCOAG – Effect 2 – RL = 200 Ohm
Measurement tolerance range: 47 to 71 watts
– swiftCOAG – Effect 8 – RL = 1000 Ohm
Measurement tolerance range: 71 to 107 watts
– swiftCOAG – Effect 6 – RL = 1000 Ohm
Measurement tolerance range: 42 to 62 watts
– softCOAG – Effect 10 – RL = 50 Ohm
Measurement tolerance range: 160 to 240 watts
– forcedCOAG – Effect 10 – RL = 300 Ohm
Measurement tolerance range: 96 to 144 watts
– sprayCOAG – Effect 10 – RL = 500 Ohm
Measurement tolerance range: 115 to 173 watts
