OPERATION
6-30

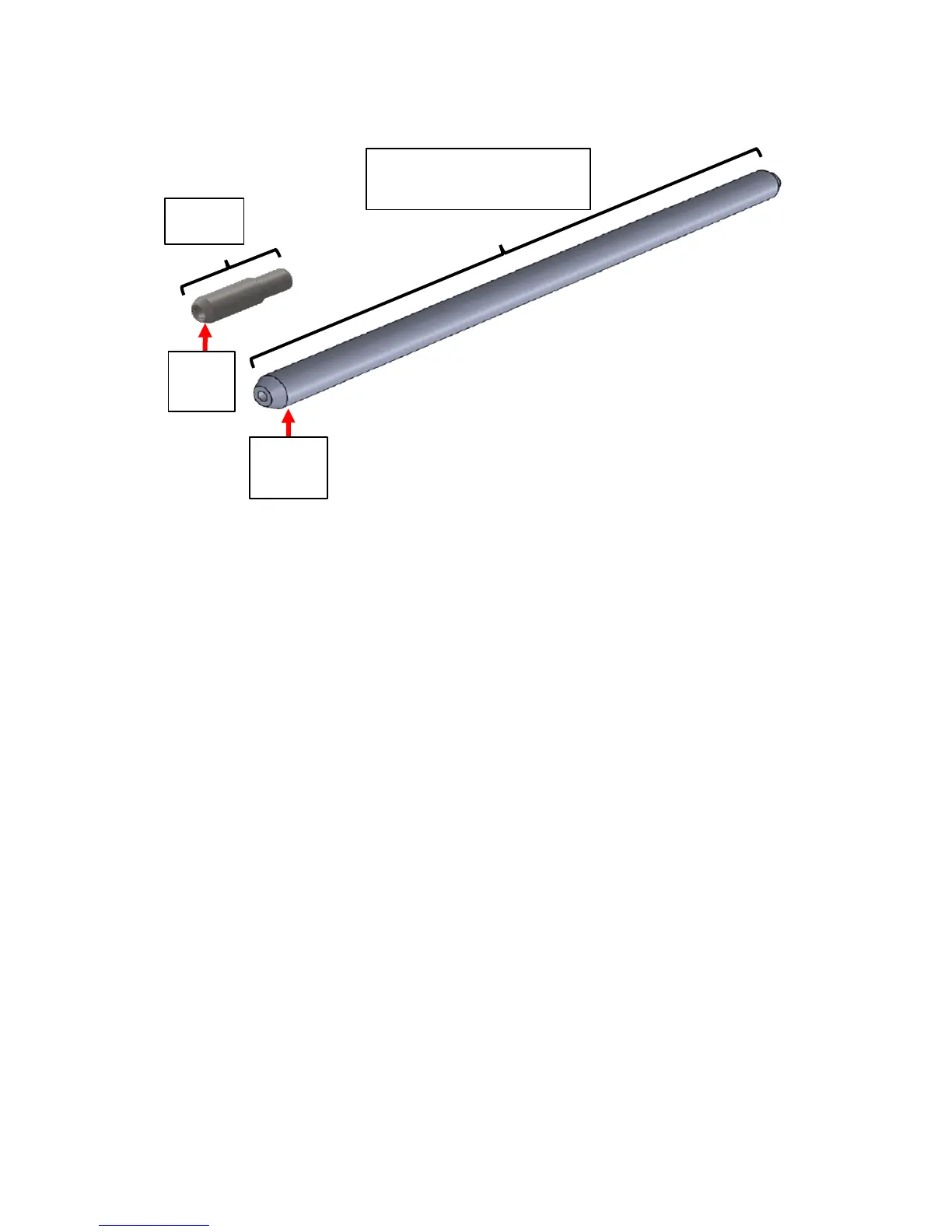

Figure 6-31. Wire Guides
2. Disconnect the electrical power source from the unit.
3. Open the door on the wire-bobbin side of the EMP unit.
4. Release the Tensioning Arm by loosening the Tension Knob, pulling it up out of its
detent and rotating it toward you (see (1) in Figure 6-32).
OUTPUT
WIRE-
GUIDE
CENTER
WIRE-
GUIDE
ONE SIZE
FITS ALL
4 SIZES FOR STEEL WIRE
3 SIZES FOR ALUMINUM WIRE
(SELECT FROM TABLE IN APPENDIX C)
