{Flash} - will bring a channel or address to full, and then every other second the level will move
to 15%. That will hold for 1 second, and then the level will return to full. The channel or
address will keep flashing until either the command line is cleared or {Flash} is selected again.

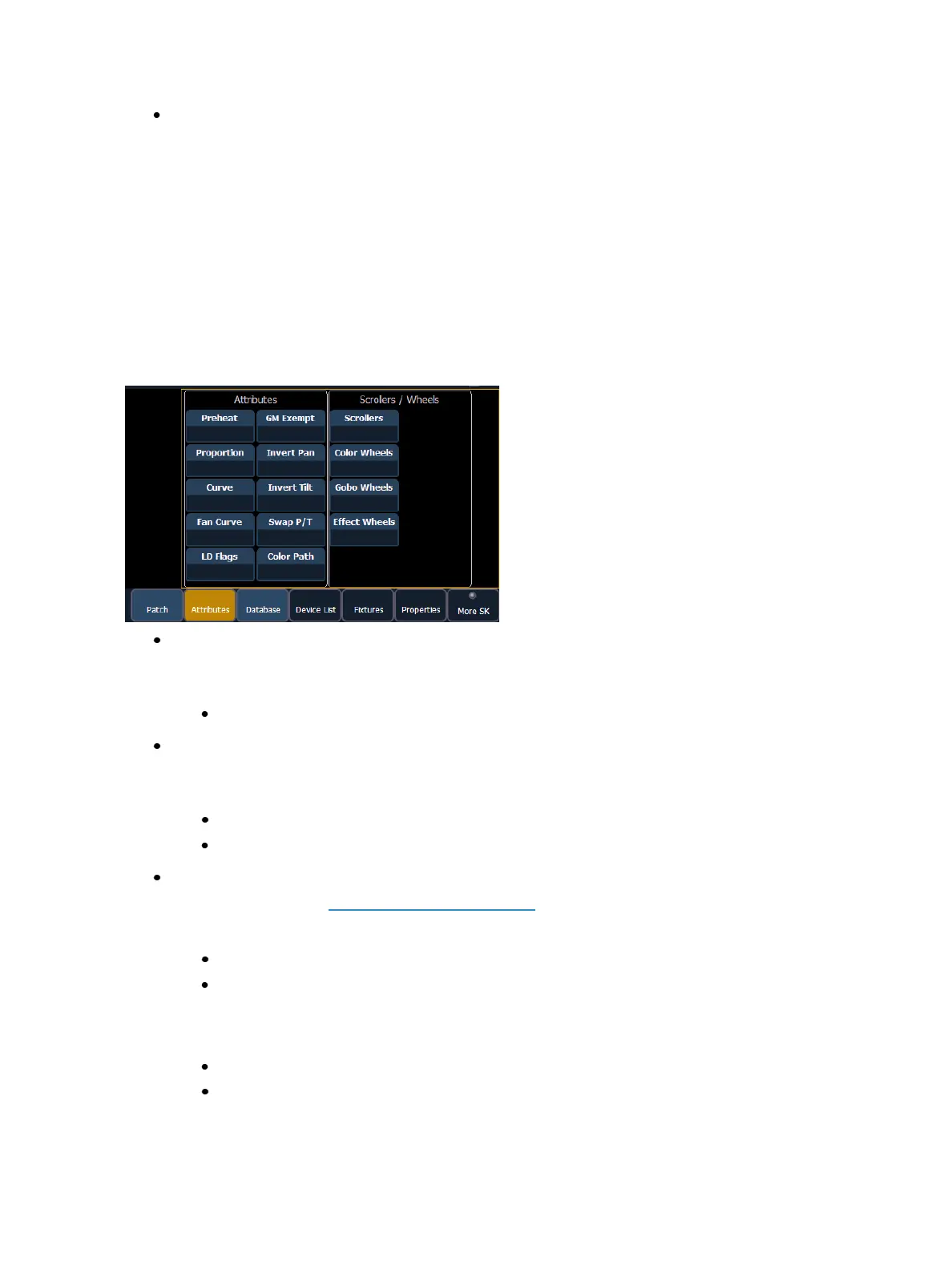

{Attribute} Display and Settings
The {Attributes}page provides you with optional fields for additional information and details about
the configuration of your rig. Attribute settings include {Preheat}, {Proportion}, {Curve}, {Fan Curve},
{LD Flags}, {GM Exempt}, {Invert Pan}, {Invert Tilt}, {Swap P/T}, and {Color Path}.
When the selected device includes a color scroller, a {Scroller} button will be displayed in the CIA,
when the selected device includes a color wheel, a gobo wheel, and/or effect wheel, {Color Wheel},
{Gobo Wheel}, and/or {Effect Wheel} buttons will appear.
Press the desired attribute button and use the keypad to set the attribute value.
{Preheat} - This field allows you to specify an intensity value to preheat incandescent filaments.
When a preheat flag is applied to a cue, any channels that are fading from zero to an active
intensity and have been assigned a preheat value in patch will preheat in the immediately pre-
ceding cue. The preheat flag is applied to a cue as an attribute when the cue is recorded.
[1] {Preheat} [0] [3] [Enter] - channel 1 is assigned a patched preheat value of 3%.
{Proportion} - An attribute to set a modifier for the intensity of the device. If the patch limit is
set at 90% (for example), the actual output will always be 10% lower than the specified
intensity parameter, as impacted by the various playbacks or submasters. This value is set
numerically in a range of 0% to 200%.
[1] {Attributes} {Proportion} [1] [2] [5] [Enter] -applies a 125% proportion to channel 1.
[1] {Attributes} {Proportion} [Enter] - removes the applied proportion from channel 1.
{Curve} - Used to assign a curve to an address in patch. In patch, curve is applied to intensity
parameters only. See About Curves (on page370) for more information.
From channel view:
[1] {Curve} [4] [Enter] - applies curve 4 to the intensity parameter of channel 1.
[2] [Part] [3] {Curve} [3] [Enter] - applies curve 3 to the intensity assigned to channel 2,
part 3.
From address view:
[3] {Curve} [3] [Enter] - assigns curve 3 to address 3.
[3] [/] [2] {Curve} [4] [Enter] - assigned curve 4 to universe 3, address 2.
