171

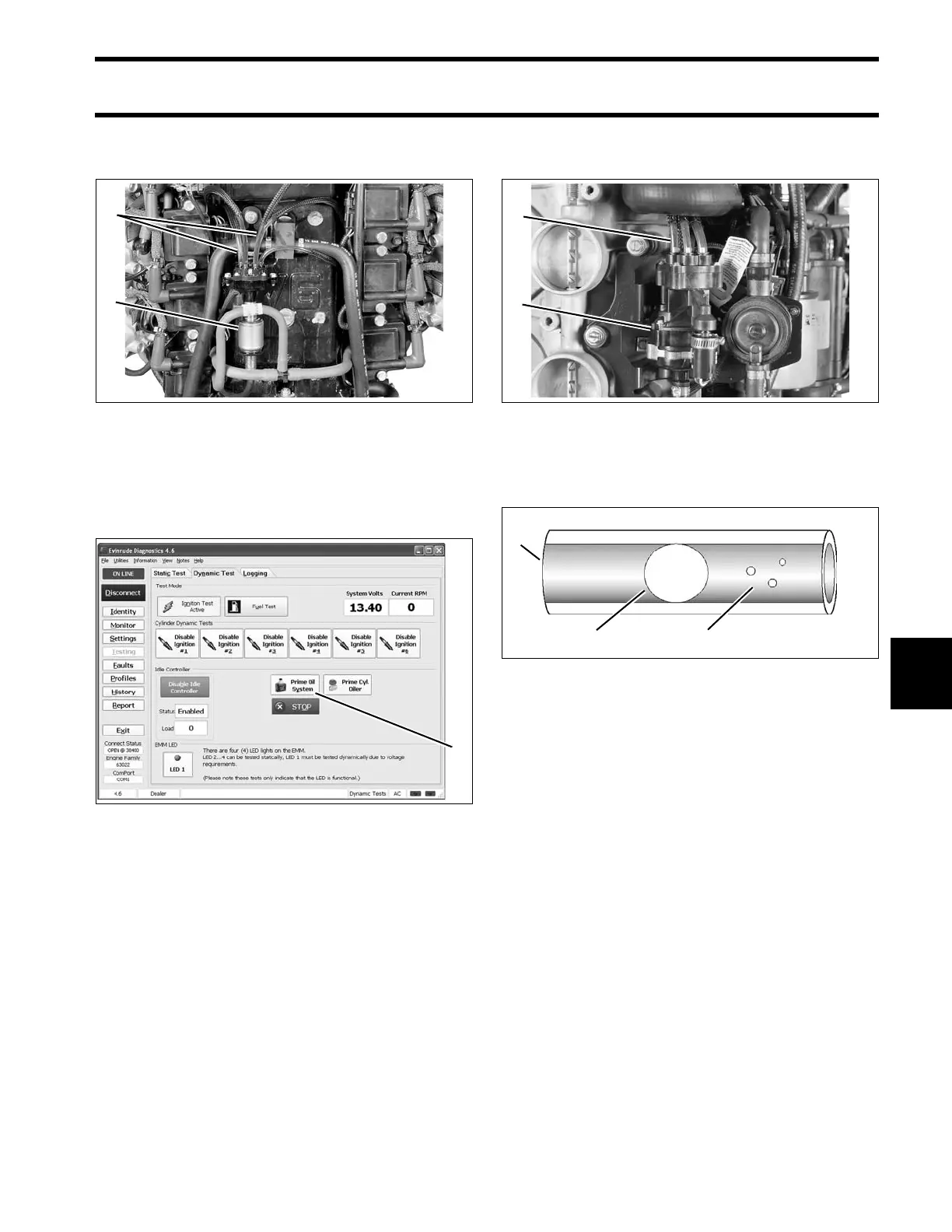

OILING SYSTEM
OIL SUPPLY PRIMING
8
• The pump assembly cannot prime itself until
it has been filled with oil.
Prime the front oil pump assembly LAST.
Use the Prime Oil System button of the Dynamic
Test screen to prime the front oil pump.
Observe oil flow through all oil distribution hoses.
Air must be purged during the priming procedure.
Small bubbles are acceptable. Large bubbles
must be eliminated through continued priming.
Repair any fuel or oil leaks.
1. Cylinder oil pump
2. Oil distribution hoses
008391
Dynamic Tests Screen
1. Prime Oil System button
008390
1. Crankcase oil pump
2. Oil distribution hoses
008392
1. Oil distribution hose
2. Small bubbles
3. Large bubbles
004398
