GEARCASE – STANDARD ROTATION
GEARCASE DISASSEMBLY

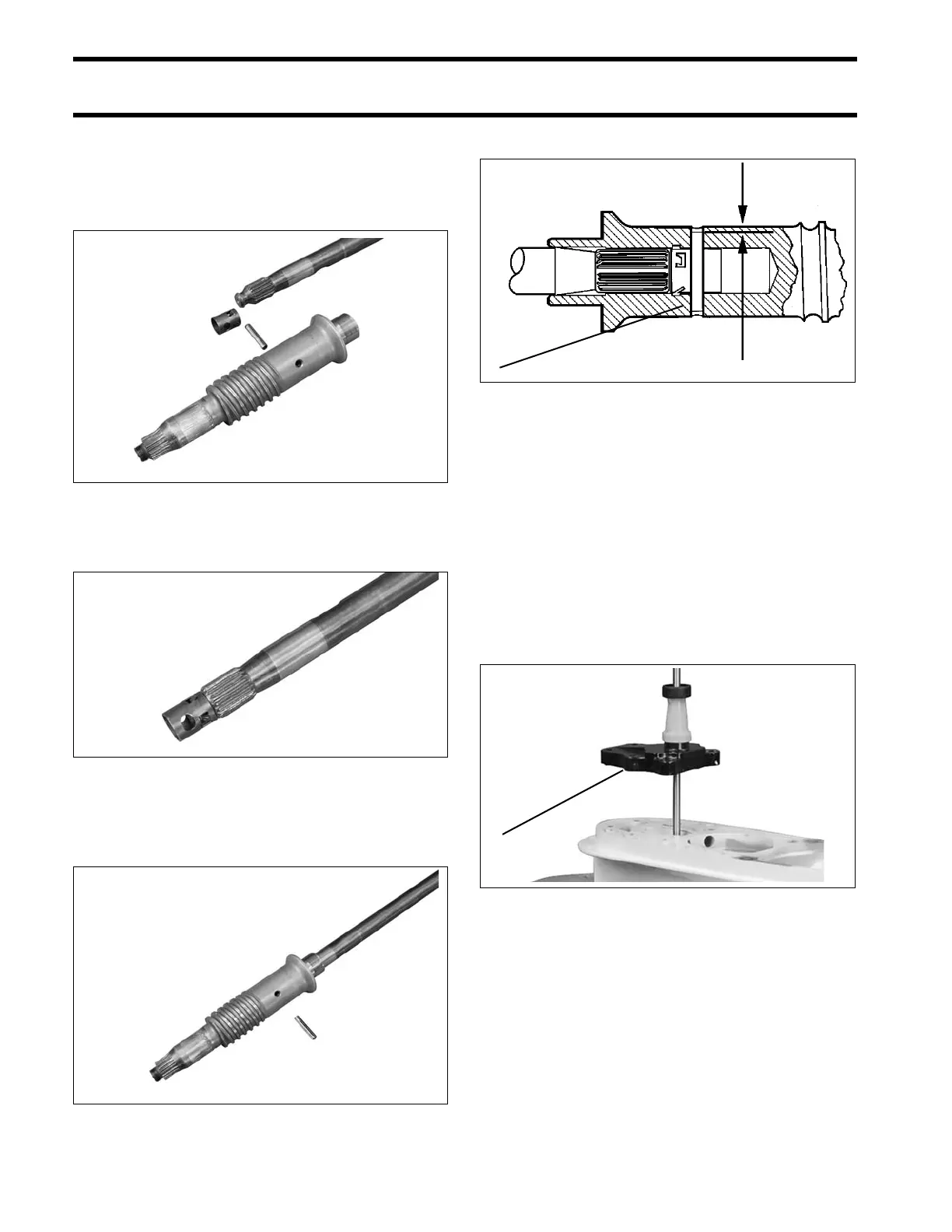

Driveshaft Service
To separate the upper driveshaft (if needed) from
the lower driveshaft, remove the roll pin. Replace
the damaged component.
To assemble the driveshaft, install new driveshaft
retainer into the groove of the upper driveshaft.
Install the upper driveshaft into the lower drive-
shaft, aligning the holes in the driveshaft retainer
and the lower driveshaft.
Install the roll pin to the specified dimension.
Shift Housing, Gear, and
Propeller Shaft Removal
Push down on the shift rod. This will move the
detent lever downward to clear the inside of the
gearcase when the shaft assembly is pulled out.
Unscrew the shift rod from the detent lever.
Remove screws, cover, and shift rod from the
gearcase.
Discard the cover gasket. Remove and discard
the shift rod O-ring from inside of cover.
006881
006882
006883
1. Roll pin DR4610
1. Cover gasket 006884
