Bearings

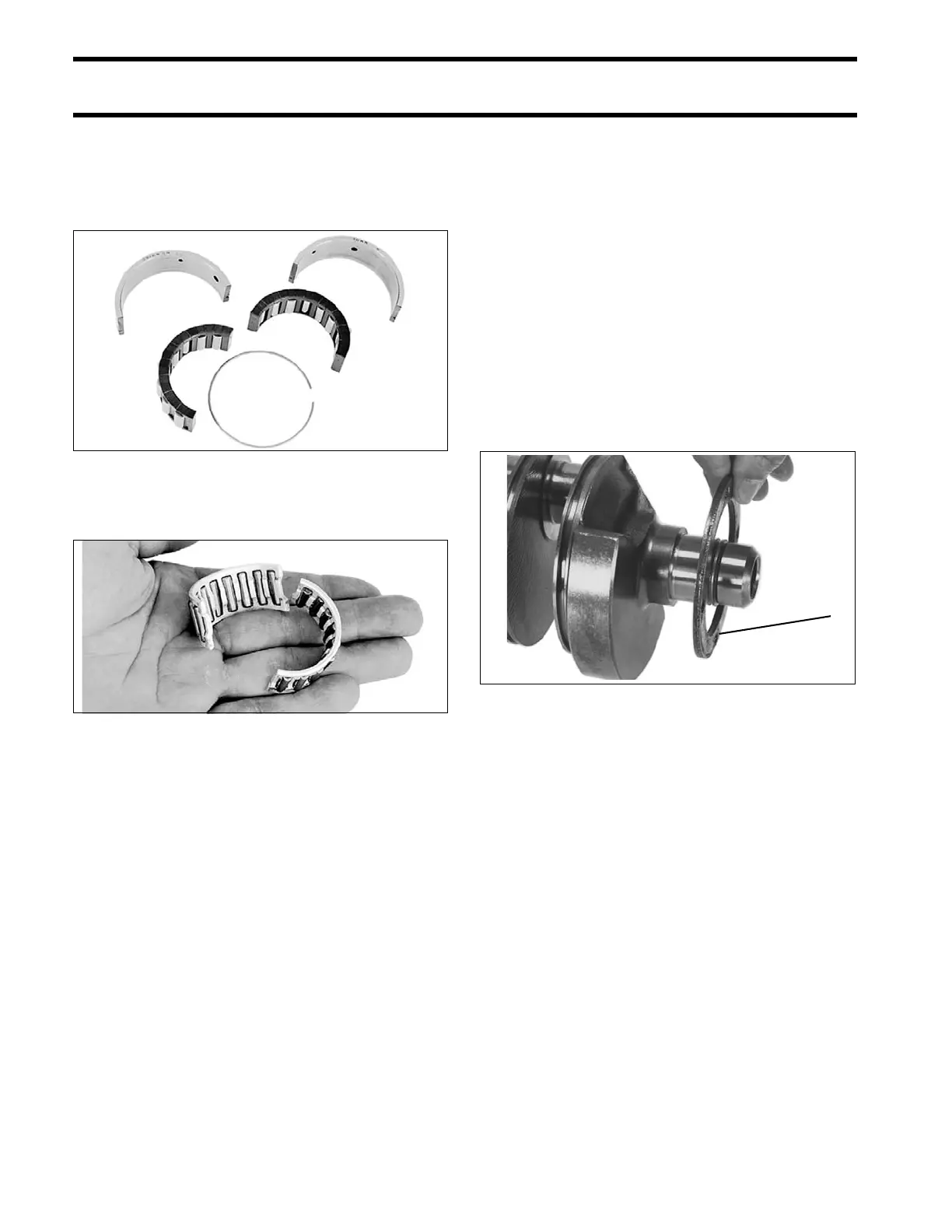

Inspect center main bearing and split sleeves for
excess wear, nicks, or scratches. Replace if nec-
essary.
Inspect crankshaft rod bearings for excess wear,
nicks, or scratches. Replace if necessary.
POWERHEAD
ASSEMBLY
IMPORTANT: Proceed slowly. Make no forced
assemblies unless a pressing operation is called
for. All internal components must be perfectly
clean and lightly coated with outboard lubricant.
IMPORTANT: Use new wrist pin retaining rings,
gaskets, seals, and O-rings during assembly.
Crankshaft Assembly
Place bearing retainer plate, flat side down, on
lower end of crankshaft.
Oil the end of the crankshaft. Use Crankshaft
Bearing/Sleeve Installer, P/N 338649, and place a
new lower main bearing onto crankshaft with let-
tered side facing the tool. Install bearing until it
seats on the crankshaft.
Oil the end of the crankshaft. Use Crankshaft
Bearing/Sleeve Installer, P/N 338649, to drive a
24381
24377
1. Bearing retainer plate 30077
